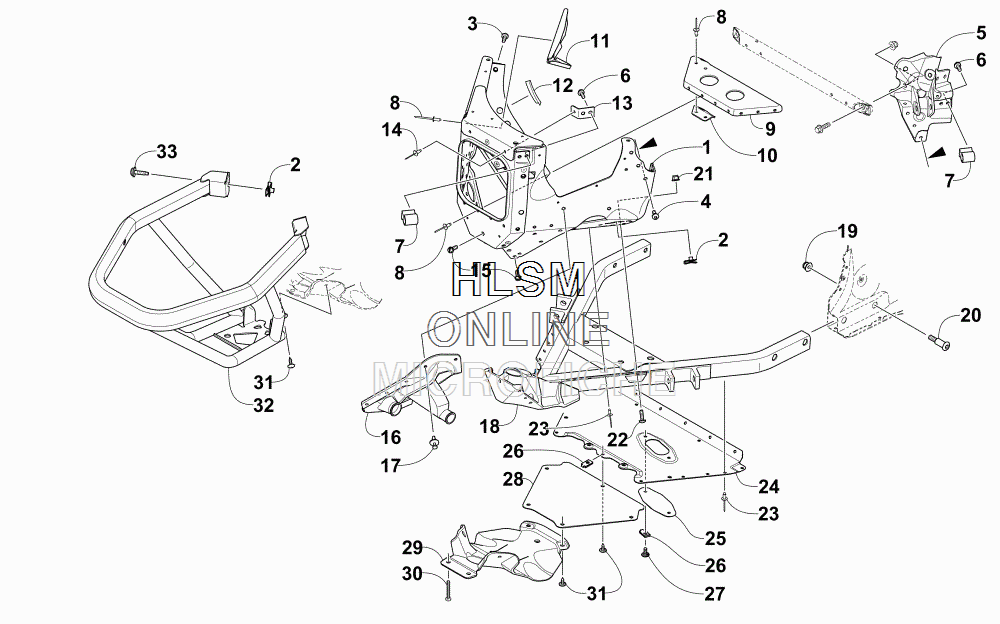

FRONT BUMPER AND FRAME ASSEMBLY для Arctic Cat ZR 9000 137 LXR GREEN [S2016ZXNTSUSG] - 2016 года выпуска`
-
№АртикулНазвание
-
12707-549 PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-5)PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-5)
-
20423-577 ...CLIP, U-NUT...CLIP, U-NUT
-
31623-683 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
40423-538 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
51707-776 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK
-
51707-777 ...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK
-
68413-617 SCREW, CAPSCREW, CAP
-
71607-233 BRACKET, MOUNTING - UPPER A-ARMBRACKET, MOUNTING - UPPER A-ARM
-
88060-706 RIVET - BLACKRIVET - BLACK
-
91607-565 BRACKET, REINFORCEMENT - LOWERBRACKET, REINFORCEMENT - LOWER
-
101607-566 BRACE, STEERING POST - LOWERBRACE, STEERING POST - LOWER
-
110607-991 BRACKET, STEERING STOPBRACKET, STEERING STOP
-
120706-371 TRIM - 3 FTTRIM - 3 FT
-
131607-561 GUSSET, A-ARM MOUNTING BRACKETGUSSET, A-ARM MOUNTING BRACKET
-
141623-241 RIVETRIVET
-
151623-959 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
161605-028 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
161605-029 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
170623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
181707-843 FRAME, LOWER - 4-STROKE - WELDMENTFRAME, LOWER - 4-STROKE - WELDMENT
-
198427-802 NUT, LOCKNUT, LOCK
-
201623-817 SCREW, SHOULDERSCREW, SHOULDER
-
218427-602 NUT, LOCKNUT, LOCK
-
228468-620 SCREW, MACHINESCREW, MACHINE
-
238060-686 RIVET - ZINCRIVET - ZINC
-
240607-983 BELLY PAN - CENTERBELLY PAN - CENTER
-
251607-108 COVER, ACCESS - OIL DRAINCOVER, ACCESS - OIL DRAIN
-
261623-052 CLIP, U-NUTCLIP, U-NUT
-
270623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
281607-063 PANEL, ACCESSPANEL, ACCESS
-
296606-614 BELLY PAN - FRONTBELLY PAN - FRONT
-
301623-929 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
310623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
322707-028 BUMPER, FRONT - ASSEMBLY - GREENBUMPER, FRONT - ASSEMBLY - GREEN
-
330423-609 SCREW, MACHINESCREW, MACHINE
