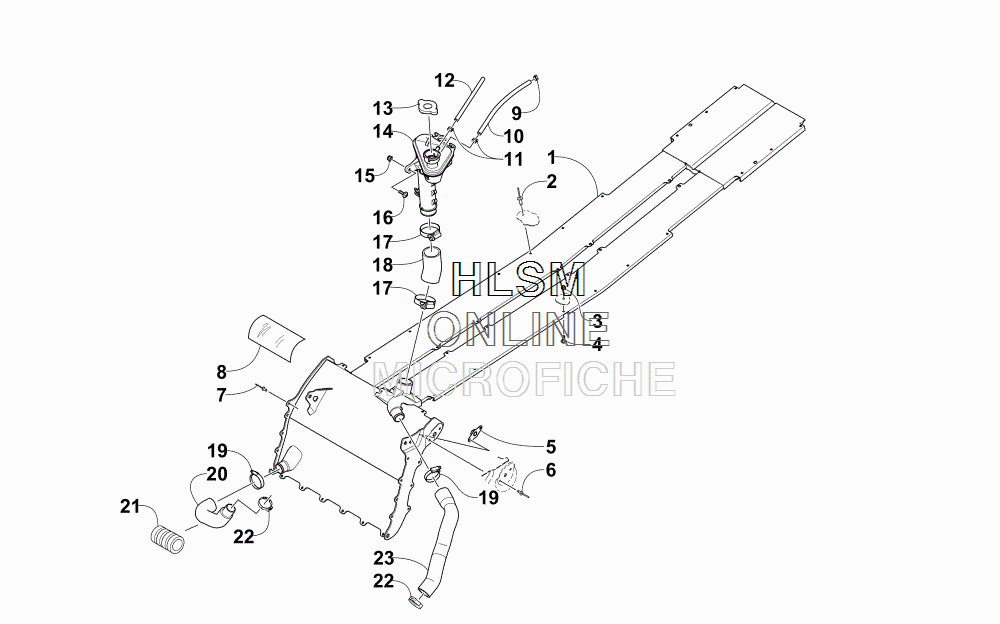

COOLING ASSEMBLY для Arctic Cat ZR 8000 LXR 129 ES ORANGE [S2016ZRHLXUSO] - 2016 года выпуска`
-
№АртикулНазвание
-
10713-114 EXCHANGER, HEATEXCHANGER, HEAT
-
28060-682 RIVET - ZINCRIVET - ZINC
-
38422-502 NUT, LOCKNUT, LOCK
-
48476-516 SCREW, MACHINESCREW, MACHINE
-
50608-631 PLATE, RETAININGPLATE, RETAINING
-
68060-708 RIVET - BLACKRIVET - BLACK
-
78060-706 RIVET - BLACKRIVET - BLACK
-
80619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
91623-619 CLAMP, HOSECLAMP, HOSE
-
100610-538 HOSE - 25 FTHOSE - 25 FT
-
111623-655 CLAMP, HOSECLAMP, HOSE
-
120610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
120610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
-
132606-284 CAPCAP
-
140613-135 TANK, COOLANTTANK, COOLANT
-
158422-602 NUT, LOCKNUT, LOCK
-
168476-625 SCREW, MACHINESCREW, MACHINE
-
170423-317 CLAMPCLAMP
-
180610-936 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGERHOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
-
192623-088 CLAMP, HOSECLAMP, HOSE
-
200610-864 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
210619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
221623-656 CLAMP, HOSECLAMP, HOSE
-
230613-191 HOSEHOSE
Все узлы модели:
- A-ARM AND SWAY BAR ASSEMBLY
- BATTERY AND TRAY ASSEMBLY
- BELT GUARD ASSEMBLY
- CHAIN CASE ASSEMBLY
- CONSOLE ASSEMBLY
- • COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT BUMPER AND FRAME ASSEMBLY
- FRONT SHOCK ABSORBER ASSEMBLY
- FUEL PUMP ASSEMBLY
- GAS TANK ASSEMBLY
- HANDLEBAR AND CONTROLS
- HEADLIGHT AND WIRING ASSEMBLIES
- HOOD AND AIR INTAKE ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO
- OIL PUMP
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- RECOIL STARTER
- REED VALVE ASSEMBLY
- SEAT ASSEMBLY
- SERVOMOTOR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SKID PLATE AND SIDE PANEL ASSEMBLY
- STARTER MOTOR ASSEMBLY
- STEERING POST ASSEMBLY
- STEERING SUPPORT ASSEMBLY
- SUSPENSION FRONT - SHOCK ABSORBER
- THROTTLE BODY ASSEMBLY
- TIE ROD ASSEMBLY
- TRACK ASSEMBLY W/ SLIDE RAIL
- TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY
- WATER PUMP AND THERMOSTAT
- WINDSHIELD AND INSTRUMENTS ASSEMBLIES
