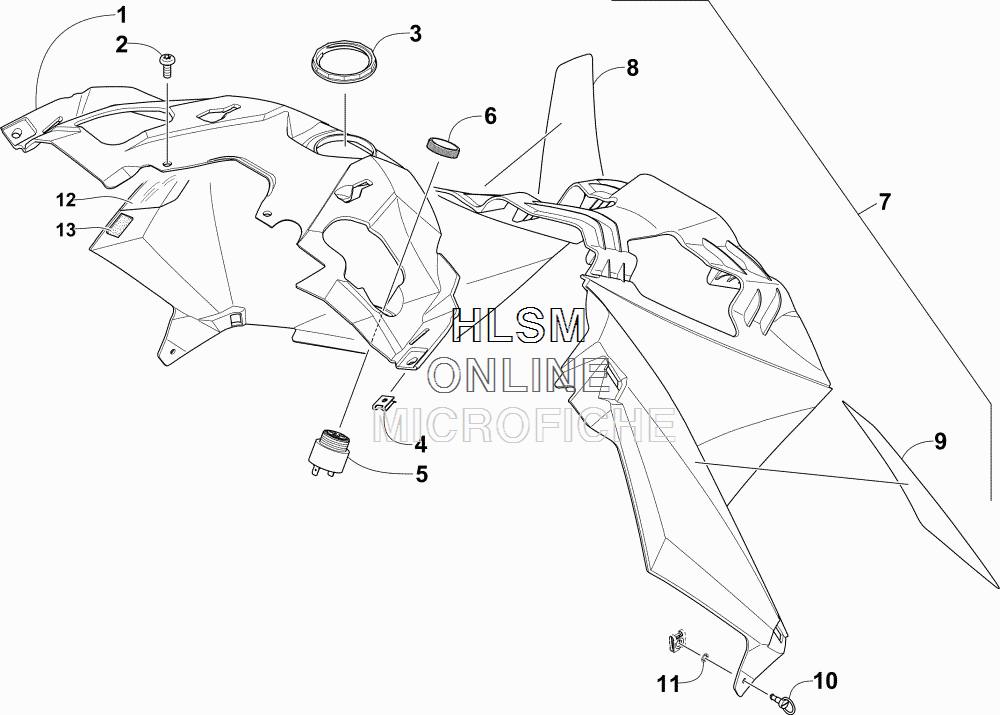

CONSOLE ASSEMBLY для Arctic Cat ZR 7000 SNO PRO 129 [S2016ZRUSPUSO] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    6606-309 CONSOLE, UPPER - BLACK
    CONSOLE, UPPER - BLACK
  • 2
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    6606-390 NUT, RETAINING
    NUT, RETAINING
  • 4
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 5
    0630-243 ALARM, REVERSE (INC. 6)
    ALARM, REVERSE (INC. 6)
  • 6
    0630-017 ...RING, RETAINING
    ...RING, RETAINING
  • 7
    4718-454 CONSOLE, LOWER - W/WARNING DECALS - BLACK (INC. 8-9,12-13)
    CONSOLE, LOWER - W/WARNING DECALS - BLACK (INC. 8-9,12-13)
  • 8
    9611-499 ...DECAL, WARNING - ENGLISH
    ...DECAL, WARNING - ENGLISH
  • 9
    9611-498 ...DECAL, WARNING - FRENCH
    ...DECAL, WARNING - FRENCH
  • 10
    2623-003 PIN, RETAINING
    PIN, RETAINING
  • 11
    2623-004 NUT, PUSH
    NUT, PUSH
  • 12
    6606-812 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 13
    6990-323 VELCRO - 3 FT
    VELCRO - 3 FT
