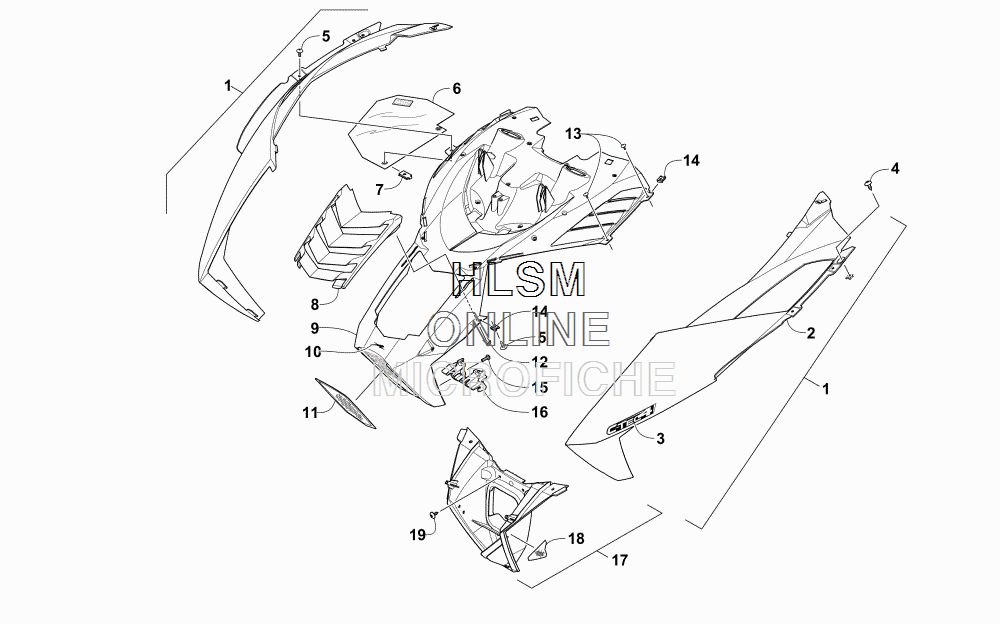

HOOD ASSEMBLY для Arctic Cat ZR 7000 EL TIGRE LTD 129 BLACK [S2016ZRUEEUSB] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-242 HOOD W/DECALS - RIGHT - BLACK (INC. 2-3)
    HOOD W/DECALS - RIGHT - BLACK (INC. 2-3)
  • 1
    4718-243 HOOD W/DECALS - LEFT - BLACK (INC. 2-3)
    HOOD W/DECALS - LEFT - BLACK (INC. 2-3)
  • 2
    6606-318 ...HOOD W/O DECALS - RIGHT - BLACK
    ...HOOD W/O DECALS - RIGHT - BLACK
  • 2
    6606-319 ...HOOD W/O DECALS - LEFT - BLACK
    ...HOOD W/O DECALS - LEFT - BLACK
  • 3
    0621-993 ...DECAL, HOOD - "C-TEC4"
    ...DECAL, HOOD - "C-TEC4"
  • 4
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 5
    1623-031 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 6
    1712-899 SHIELD, HEAT - RIGHT
    SHIELD, HEAT - RIGHT
  • 7
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 8
    6606-388 GRILLE, INTERCOOLER
    GRILLE, INTERCOOLER
  • 9
    6606-510 PLENUM, INTAKE - UPPER
    PLENUM, INTAKE - UPPER
  • 10
    4411-479 DECAL, AIRCAT
    DECAL, AIRCAT
  • 11
    0608-696 SCREEN, VENT
    SCREEN, VENT
  • 12
    1623-694 CLIP, RETAINING
    CLIP, RETAINING
  • 13
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 15
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    6606-822 RETAINER, PLENUM
    RETAINER, PLENUM
  • 17
    5706-992 PLENUM, INTAKE - LOWER FRONT (INC. 18)
    PLENUM, INTAKE - LOWER FRONT (INC. 18)
  • 18
    0621-989 DECAL, REFLECTOR - AMBER
    DECAL, REFLECTOR - AMBER
  • 19
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
