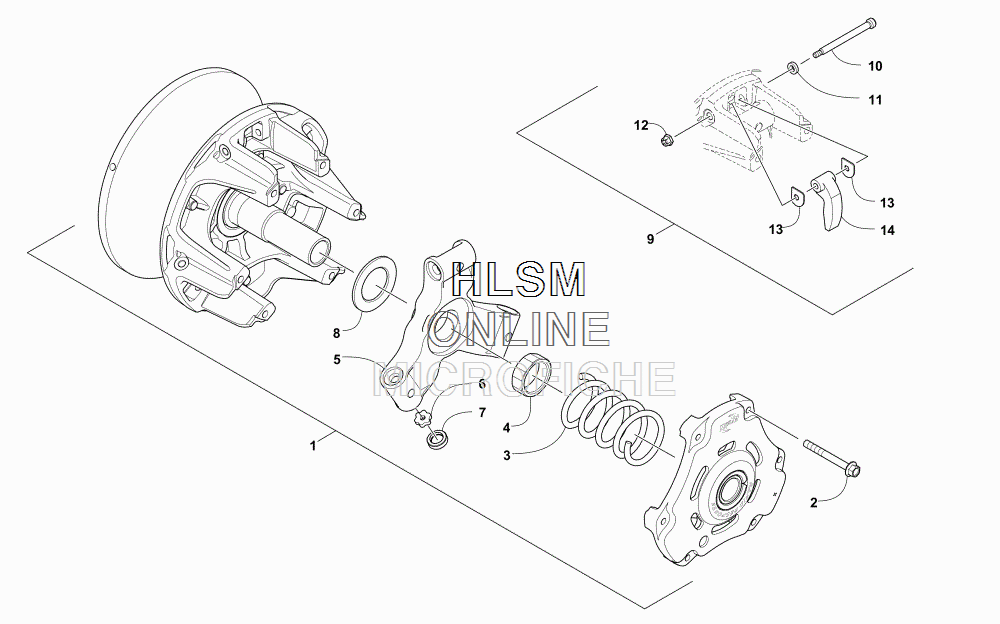

DRIVE CLUTCH для Arctic Cat ZR 7000 129 LXR GREEN [S2016ZRULXUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0746-852 CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-8, 10-13)
    CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-8, 10-13)
  • 2
    0646-460 ...SCREW, SHOULDER
    ...SCREW, SHOULDER
  • 3
    0646-467 SPRING, DRIVE CLUTCH
    SPRING, DRIVE CLUTCH
  • 3
    0646-468 SPRING, DRIVE CLUTCH (OVER 5,000 FT ALT.)
    SPRING, DRIVE CLUTCH (OVER 5,000 FT ALT.)
  • 4
    0646-466 NUT, JAM
    NUT, JAM
  • 5
    0646-479 SPIDER
    SPIDER
  • 6
    0646-298 PLUG, TORQUE BUTTON
    PLUG, TORQUE BUTTON
  • 7
    0646-465 BUTTON, TORQUE - PRIMARY
    BUTTON, TORQUE - PRIMARY
  • 8
    0646-464 SHIM
    SHIM
  • 9
    7639-127 KIT, CAM ARM (INC. 10-13)
    KIT, CAM ARM (INC. 10-13)
  • 10
    0823-396 ...PIN, CAM ARM
    ...PIN, CAM ARM
  • 11
    2623-091 ...WASHER
    ...WASHER
  • 12
    0823-399 ...NUT, LOCK
    ...NUT, LOCK
  • 13
    0646-880 ...WASHER, THRUST
    ...WASHER, THRUST
  • 14
    0646-888 ARM, CAM
    ARM, CAM
  • 14
    0646-929 ARM, CAM (5-9,000 FT. ALT.)
    ARM, CAM (5-9,000 FT. ALT.)
  • 14
    0646-930 ARM, CAM (9,000 FT. ALT.)
    ARM, CAM (9,000 FT. ALT.)
