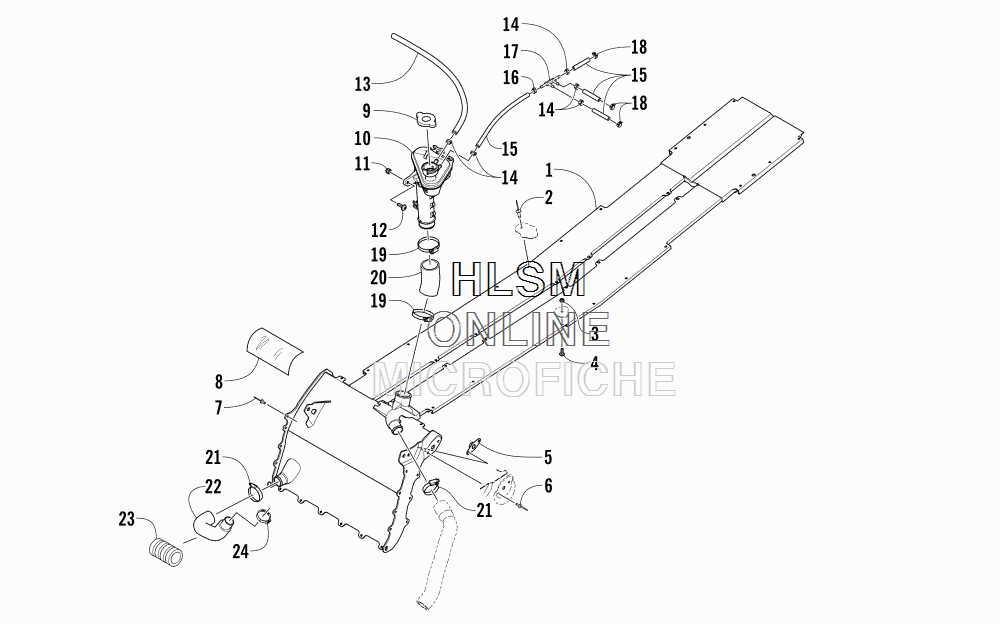

COOLING ASSEMBLY для Arctic Cat ZR 6000 LXR ES ORANGE [S2016ZRDLXUSO] - 2016 года выпуска`
-
№АртикулНазвание
-
10713-114 EXCHANGER, HEATEXCHANGER, HEAT
-
28060-682 RIVET - ZINCRIVET - ZINC
-
38422-502 NUT, LOCKNUT, LOCK
-
48476-516 SCREW, MACHINESCREW, MACHINE
-
50608-631 PLATE, RETAININGPLATE, RETAINING
-
68060-688 RIVET - ZINCRIVET - ZINC
-
78060-686 RIVET - ZINCRIVET - ZINC
-
80619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
92606-284 CAPCAP
-
100613-135 TANK, COOLANTTANK, COOLANT
-
118422-602 NUT, LOCKNUT, LOCK
-
128476-625 SCREW, MACHINESCREW, MACHINE
-
130610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
130610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
-
141623-655 CLAMP, HOSECLAMP, HOSE
-
150610-538 HOSE - 25 FTHOSE - 25 FT
-
161623-619 CLAMP, HOSECLAMP, HOSE
-
170610-717 FITTING, DOUBLE-TFITTING, DOUBLE-T
-
180623-063 CLAMP, HOSECLAMP, HOSE
-
190423-317 CLAMPCLAMP
-
200610-936 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGERHOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
-
212623-088 CLAMP, HOSECLAMP, HOSE
-
220610-864 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
230619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
241623-656 CLAMP, HOSECLAMP, HOSE
