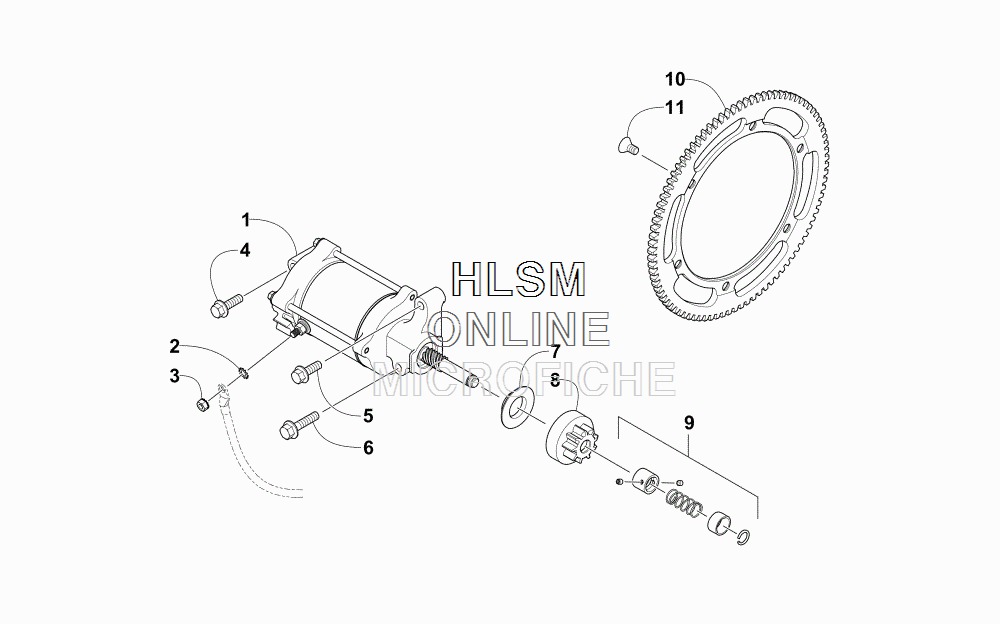

STARTER MOTOR ASSEMBLY для Arctic Cat ZR 6000 LXR ES GREEN [S2016ZRDLXUSG] - 2016 года выпуска
-
№АртикулНазвание
-
10645-702 MOTOR, STARTERMOTOR, STARTER
-
28053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
30623-038 NUT W/WASHERNUT W/WASHER
-
48412-861 SCREW, CAPSCREW, CAP
-
58412-841 SCREW, CAPSCREW, CAP
-
68412-871 SCREW, CAPSCREW, CAP
-
70645-772 PLATE, WEARPLATE, WEAR
-
80645-713 GEAR, PINIONGEAR, PINION
-
90745-398 PINION STOPPER ASSEMBLYPINION STOPPER ASSEMBLY
-
100745-403 RING GEAR, ELECTRIC START - TREATED - CWIRING GEAR, ELECTRIC START - TREATED - CWI
-
111623-821 SCREW, MACHINESCREW, MACHINE
