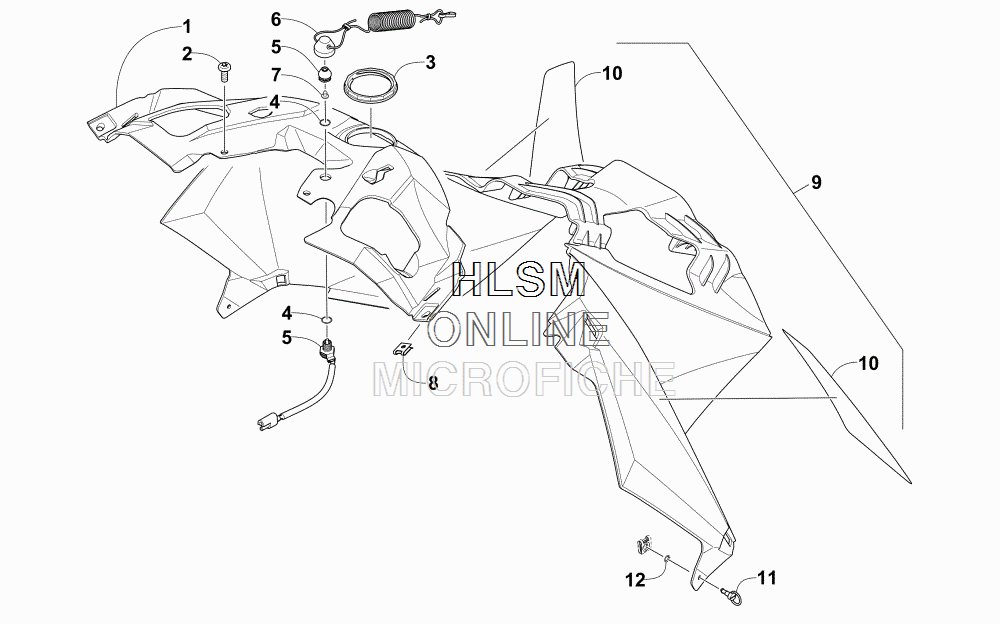

CONSOLE ASSEMBLY для Arctic Cat ZR 4000 RR GREEN [S2016ZRCRRUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-586 CONSOLE, UPPER - GREEN
    CONSOLE, UPPER - GREEN
  • 2
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    6606-390 NUT, RETAINING
    NUT, RETAINING
  • 4
    0123-985 WASHER, INTERNAL TOOTH LOCK
    WASHER, INTERNAL TOOTH LOCK
  • 5
    0709-071 TETHER SWITCH (INC. 6-7)
    TETHER SWITCH (INC. 6-7)
  • 6
    0709-055 ...TETHER CORD W/ SCREW (INC. 7)
    ...TETHER CORD W/ SCREW (INC. 7)
  • 7
    0623-338 ......SCREW, SELF-TAPPING
    ......SCREW, SELF-TAPPING
  • 8
    1623-939 ...CLIP, U-NUT
    ...CLIP, U-NUT
  • 9
    3718-998 ...CONSOLE, LOWER, W/WARNING DECALS - BLACK (INC. 10)
    ...CONSOLE, LOWER, W/WARNING DECALS - BLACK (INC. 10)
  • 10
    9611-499 ......DECAL, WARNING - ENGLISH
    ......DECAL, WARNING - ENGLISH
  • 10
    9611-498 ......DECAL, WARNING - FRENCH
    ......DECAL, WARNING - FRENCH
  • 11
    2623-003 PIN, RETAINING
    PIN, RETAINING
  • 12
    2623-004 NUT, PUSH
    NUT, PUSH
