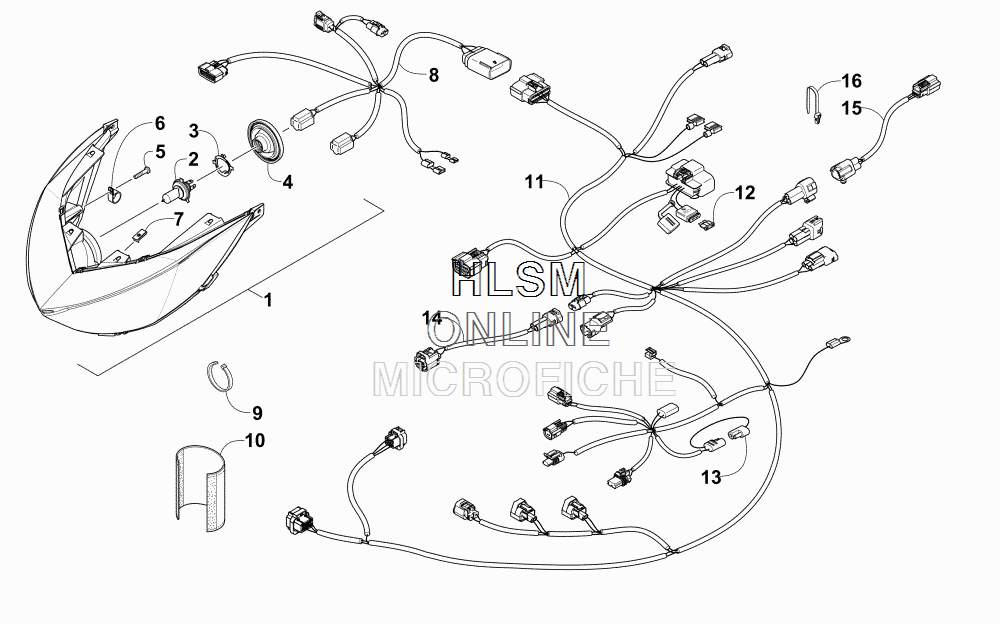

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat ZR 4000 LXR GREEN INTERNATIONAL [S2016ZRCEFOSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0609-899 HEADLIGHT ASSEMBLY (INC. 2-4)
    HEADLIGHT ASSEMBLY (INC. 2-4)
  • 2
    0109-724 ...BULB
    ...BULB
  • 3
    0409-097 ...RETAINER, SPRING
    ...RETAINER, SPRING
  • 4
    0609-919 ...BOOT
    ...BOOT
  • 5
    1623-915 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 6
    1623-675 CLAMP, ROUTING
    CLAMP, ROUTING
  • 7
    0423-031 CLIP, U-NUT
    CLIP, U-NUT
  • 8
    1686-748 HARNESS, HOOD
    HARNESS, HOOD
  • 9
    0123-811 TIE, CABLE - 4 IN.
    TIE, CABLE - 4 IN.
  • 9
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 9
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 10
    5706-138 WRAP, HARNESS
    WRAP, HARNESS
  • 11
    1686-747 HARNESS, MAIN (INC. 12-13)
    HARNESS, MAIN (INC. 12-13)
  • 12
    0630-024 ...FUSE - 15 AMP
    ...FUSE - 15 AMP
  • 13
    0486-164 ...TETHER, ACCESSORY CONNECTOR
    ...TETHER, ACCESSORY CONNECTOR
  • 14
    1686-173 HARNESS, ADAPTER - ENGINE COOLANT TEMPERATURE SENSOR
    HARNESS, ADAPTER - ENGINE COOLANT TEMPERATURE SENSOR
  • 15
    1686-684 HARNESS, EXTENSION - TAILLIGHT
    HARNESS, EXTENSION - TAILLIGHT
  • 16
    0623-677 TIE, CABLE - PUSH-MOUNT
    TIE, CABLE - PUSH-MOUNT
