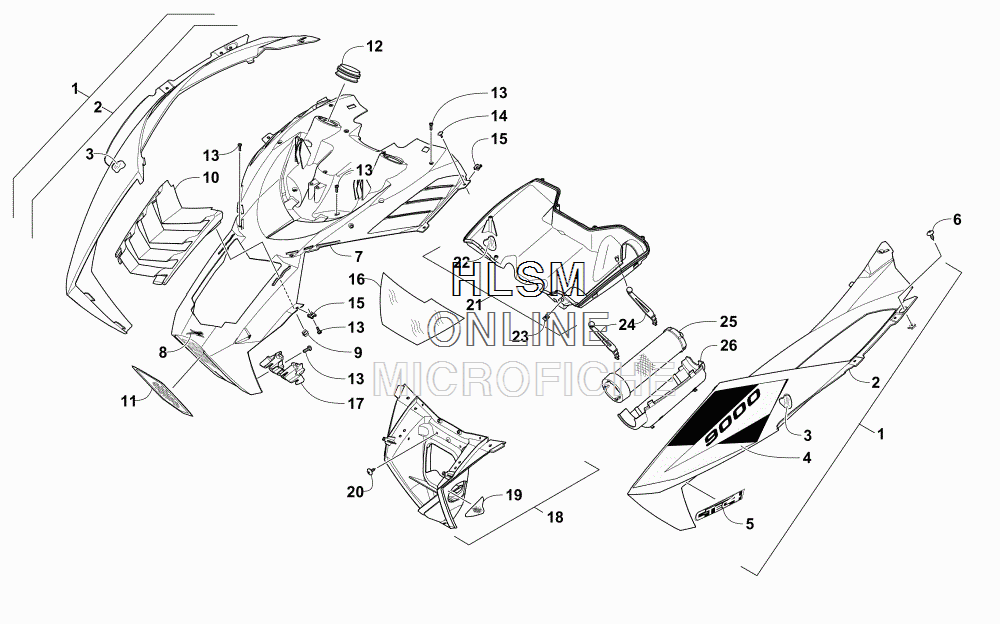

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat XF 9000 HIGH COUNTRY LTD 141 BLACK [S2016X9NHCUSB] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-670 HOOD W/DECALS - RIGHT - BLACK (INC. 2-4 AND ONE NO. 5)
    HOOD W/DECALS - RIGHT - BLACK (INC. 2-4 AND ONE NO. 5)
  • 1
    4718-671 HOOD W/DECALS - LEFT - BLACK (INC. 2-4 AND ONE NO. 5)
    HOOD W/DECALS - LEFT - BLACK (INC. 2-4 AND ONE NO. 5)
  • 2
    3718-486 ...HOOD W/FOIL - RIGHT - BLACK (INC. 3)
    ...HOOD W/FOIL - RIGHT - BLACK (INC. 3)
  • 2
    3718-313 ...HOOD W/FOIL - LEFT - BLACK (INC. 3)
    ...HOOD W/FOIL - LEFT - BLACK (INC. 3)
  • 3
    6606-420 ......FOIL, PROTECTIVE - RIGHT
    ......FOIL, PROTECTIVE - RIGHT
  • 3
    6606-415 ......FOIL, PROTECTIVE - LEFT
    ......FOIL, PROTECTIVE - LEFT
  • 4
    2621-426 ...DECAL, HOOD - RIGHT - BLACK
    ...DECAL, HOOD - RIGHT - BLACK
  • 4
    2621-427 ...DECAL, HOOD - LEFT - BLACK
    ...DECAL, HOOD - LEFT - BLACK
  • 5
    0621-993 ...DECAL, HOOD - "C-TEC4"
    ...DECAL, HOOD - "C-TEC4"
  • 6
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    6706-152 PLENUM, INTAKE - UPPER (INC. 16)
    PLENUM, INTAKE - UPPER (INC. 16)
  • 8
    4411-479 DECAL, AIRCAT
    DECAL, AIRCAT
  • 9
    1623-765 CLIP, RETAINING
    CLIP, RETAINING
  • 10
    6606-388 GRILLE, INTERCOOLER
    GRILLE, INTERCOOLER
  • 11
    0608-696 SCREEN, VENT
    SCREEN, VENT
  • 12
    6606-386 BOOT, INTAKE
    BOOT, INTAKE
  • 13
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 16
    6606-421 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 17
    6606-822 RETAINER, PLENUM
    RETAINER, PLENUM
  • 18
    5706-991 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 19)
    PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 19)
  • 19
    0621-989 ...DECAL, REFLECTOR - AMBER
    ...DECAL, REFLECTOR - AMBER
  • 20
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 21
    5706-380 PLENUM, INTAKE - LOWER REAR (INC. 22)
    PLENUM, INTAKE - LOWER REAR (INC. 22)
  • 22
    6606-422 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 23
    1623-023 CLIP, U-NUT
    CLIP, U-NUT
  • 24
    6606-392 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 25
    2670-265 FILTER, AIR
    FILTER, AIR
  • 26
    6606-365 COVER, AIR FILTER
    COVER, AIR FILTER
