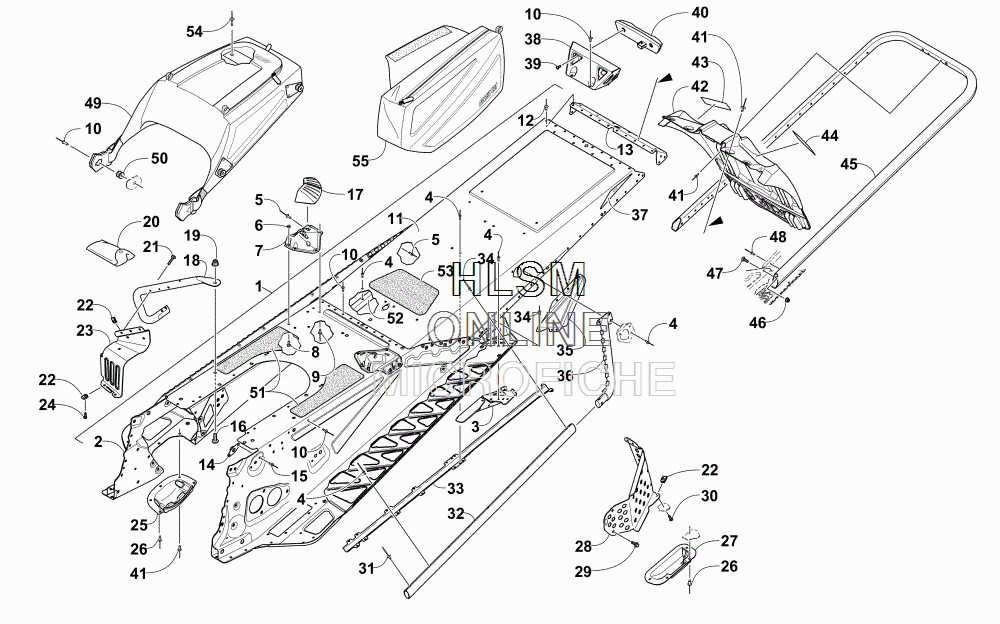

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat XF 7000 CROSS-TREK ORANGE [S2016ZXUCTUSO] - 2016 года выпуска
-
№АртикулНазвание
-
-2707-083 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
12707-383 TUNNEL ASSEMBLY (INC. 2-13 AND 34)TUNNEL ASSEMBLY (INC. 2-13 AND 34)
-
21707-952 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
-
31607-332 ......BRACKET, REAR SUSPENSION - OUTER RIGHT......BRACKET, REAR SUSPENSION - OUTER RIGHT
-
31607-333 ......BRACKET, REAR SUSPENSION - OUTER LEFT......BRACKET, REAR SUSPENSION - OUTER LEFT
-
48060-706 ......RIVET - BLACK......RIVET - BLACK
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
71707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-702 ...RIVET - BLACK...RIVET - BLACK
-
111607-395 ...TUNNEL, REAR...TUNNEL, REAR
-
128060-504 ...RIVET...RIVET
-
131607-104 ...END CAP, TUNNEL...END CAP, TUNNEL
-
140608-631 PLATE, RETAININGPLATE, RETAINING
-
158060-708 RIVET - BLACKRIVET - BLACK
-
168476-820 SCREW, MACHINESCREW, MACHINE
-
176606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
176606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
181707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
181707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
198427-802 NUT, LOCKNUT, LOCK
-
200744-088 KIT, TOOLKIT, TOOL
-
218468-535 SCREW, MACHINESCREW, MACHINE
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
230607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
230607-997 FOOTREST - LEFTFOOTREST - LEFT
-
248470-516 SCREW, MACHINESCREW, MACHINE
-
251607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
268061-708 RIVETRIVET
-
270607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
281607-371 SHIELD, BRAKE DISCSHIELD, BRAKE DISC
-
298408-613 SCREW, CAPSCREW, CAP
-
308470-520 SCREW, MACHINESCREW, MACHINE
-
311623-130 RIVETRIVET
-
321607-092 ROLL, TUNNELROLL, TUNNEL
-
330630-316 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
341623-241 RIVETRIVET
-
351607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
351607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
361607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
361607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
370621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
380630-328 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
398470-510 SCREW, MACHINESCREW, MACHINE
-
400609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
418061-706 RIVETRIVET
-
426606-394 SNOWFLAP - BLACKSNOWFLAP - BLACK
-
435611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
452707-587 BUMPER, REAR - ORANGEBUMPER, REAR - ORANGE
-
468427-602 NUT, LOCKNUT, LOCK
-
478476-620 SCREW, MACHINESCREW, MACHINE
-
488060-686 RIVET - ZINCRIVET - ZINC
-
497606-074 SADDLEBAG - REARSADDLEBAG - REAR
-
501623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
-
516606-814 PAD, FUEL TANK - RIGHTPAD, FUEL TANK - RIGHT
-
516606-815 PAD, FUEL TANK - LEFTPAD, FUEL TANK - LEFT
-
521607-455 PROTECTOR, TUNNELPROTECTOR, TUNNEL
-
536606-816 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
-
548061-710 RIVET, BLIND - LARGE FLANGE - SS68 - BLACKRIVET, BLIND - LARGE FLANGE - SS68 - BLACK
-
557606-072 SADDLEBAG - RIGHTSADDLEBAG - RIGHT
-
557606-073 SADDLEBAG - LEFTSADDLEBAG - LEFT
