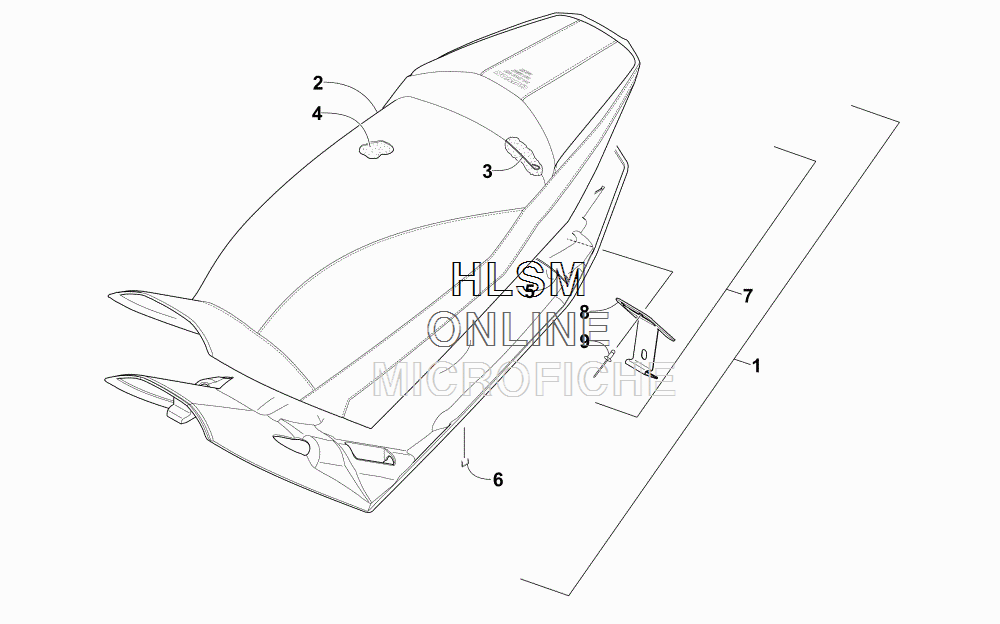

SEAT ASSEMBLY для Arctic Cat XF 6000 CROSSTREK ORANGE EARLY BUILD [S2016ZXDCTEBO] - 2016 года выпуска`
-
№АртикулНазвание
-
16706-053 COMPLETE SEAT ASSEMBLY (INC. 2-9)COMPLETE SEAT ASSEMBLY (INC. 2-9)
-
26706-054 ...COVER, SEAT (INC. 3)...COVER, SEAT (INC. 3)
-
33606-369 ......WIRE, SEAT......WIRE, SEAT
-
40717-215 ...FOAM, SEAT...FOAM, SEAT
-
56606-461 ...WIRE, SEAT...WIRE, SEAT
-
60624-528 ...STAPLE...STAPLE
-
75706-240 ...SEAT-BASE (INC. 8-9)...SEAT-BASE (INC. 8-9)
-
86606-452 ......LATCH, SEAT......LATCH, SEAT
-
98061-686 ......RIVET......RIVET
