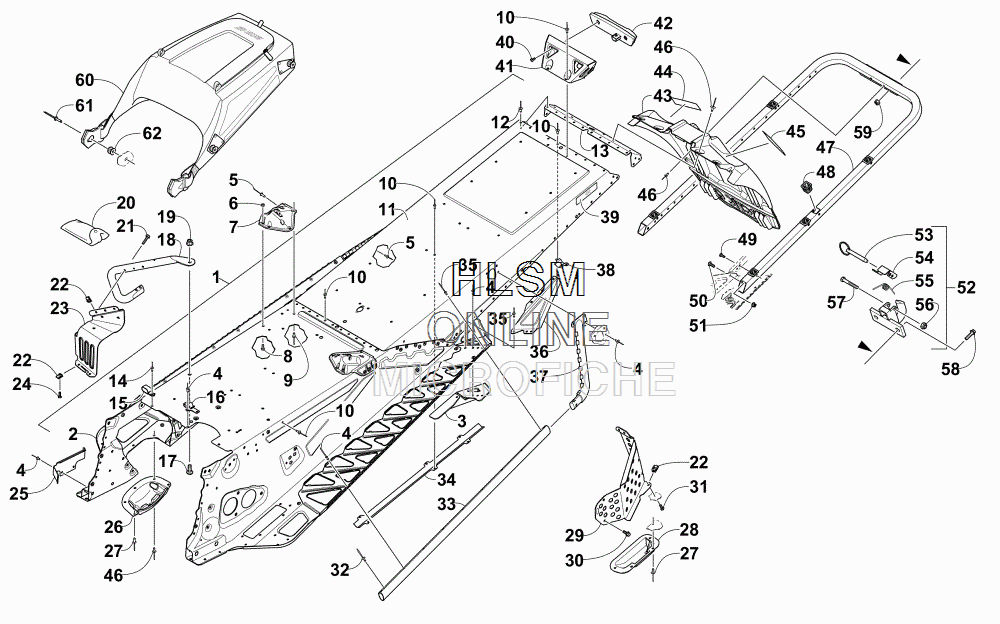

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat XF 6000 CROSSTREK INTERNATIONAL ORANGE EARLY BUILD [S2016ZXDCTOEO] - 2016 года выпуска`
-
№АртикулНазвание
-
-1707-985 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
12707-236 TUNNEL ASSEMBLY (INC. 2-13)TUNNEL ASSEMBLY (INC. 2-13)
-
22707-235 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
-
31607-332 ......BRACKET, REAR SUSPENSION - OUTER RIGHT......BRACKET, REAR SUSPENSION - OUTER RIGHT
-
31607-333 ......BRACKET, REAR SUSPENSION - OUTER LEFT......BRACKET, REAR SUSPENSION - OUTER LEFT
-
48060-686 ......RIVET - ZINC......RIVET - ZINC
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
71707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET - ZINC...RIVET - ZINC
-
111607-251 ...TUNNEL, REAR...TUNNEL, REAR
-
128060-484 ...RIVET...RIVET
-
131607-104 ...END CAP, TUNNEL...END CAP, TUNNEL
-
148061-686 RIVETRIVET
-
151623-762 CLAMP, ROUTINGCLAMP, ROUTING
-
160645-709 CLIP, ROUTINGCLIP, ROUTING
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
181707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
181707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
198427-802 NUT, LOCKNUT, LOCK
-
200744-087 KIT, TOOLKIT, TOOL
-
218468-535 SCREW, MACHINESCREW, MACHINE
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
230607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
230607-997 FOOTREST - LEFTFOOTREST - LEFT
-
248470-516 SCREW, MACHINESCREW, MACHINE
-
250608-705 BRACKET, ROUTING - OIL LINEBRACKET, ROUTING - OIL LINE
-
261607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
278061-708 RIVETRIVET
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
291607-371 SHIELD, BRAKE DISCSHIELD, BRAKE DISC
-
308408-613 SCREW, CAPSCREW, CAP
-
318470-520 SCREW, MACHINESCREW, MACHINE
-
321623-130 RIVETRIVET
-
331607-092 ROLL, TUNNELROLL, TUNNEL
-
340630-309 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
351623-241 RIVETRIVET
-
361607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
361607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
371607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
371607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
380630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
390621-991 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
408470-510 SCREW, MACHINESCREW, MACHINE
-
410630-328 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
420609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
436606-394 SNOWFLAP - BLACKSNOWFLAP - BLACK
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
455611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
468061-706 RIVETRIVET
-
472707-254 BUMPER, REAR ORANGE (INC. 48)BUMPER, REAR ORANGE (INC. 48)
-
480441-592 ...BUSHING...BUSHING
-
490423-946 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
508476-620 SCREW, MACHINESCREW, MACHINE
-
518427-602 NUT, LOCKNUT, LOCK
-
520706-727 HITCH, PINTLE - ASSEMBLY - SWEDISH (INC. 53-57)HITCH, PINTLE - ASSEMBLY - SWEDISH (INC. 53-57)
-
530623-213 ...PIN, HITCH...PIN, HITCH
-
542706-229 ...LATCH, HITCH - PAINTED BLACK...LATCH, HITCH - PAINTED BLACK
-
550623-335 ...SPRING, HITCH...SPRING, HITCH
-
568040-366 ...NUT, LOCK...NUT, LOCK
-
578002-046 ...SCREW, CAP...SCREW, CAP
-
588408-830 SCREW, CAPSCREW, CAP
-
598422-802 NUT, LOCKNUT, LOCK
-
607606-075 SADDLEBAG - REARSADDLEBAG - REAR
-
618060-630 RIVETRIVET
-
621623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
