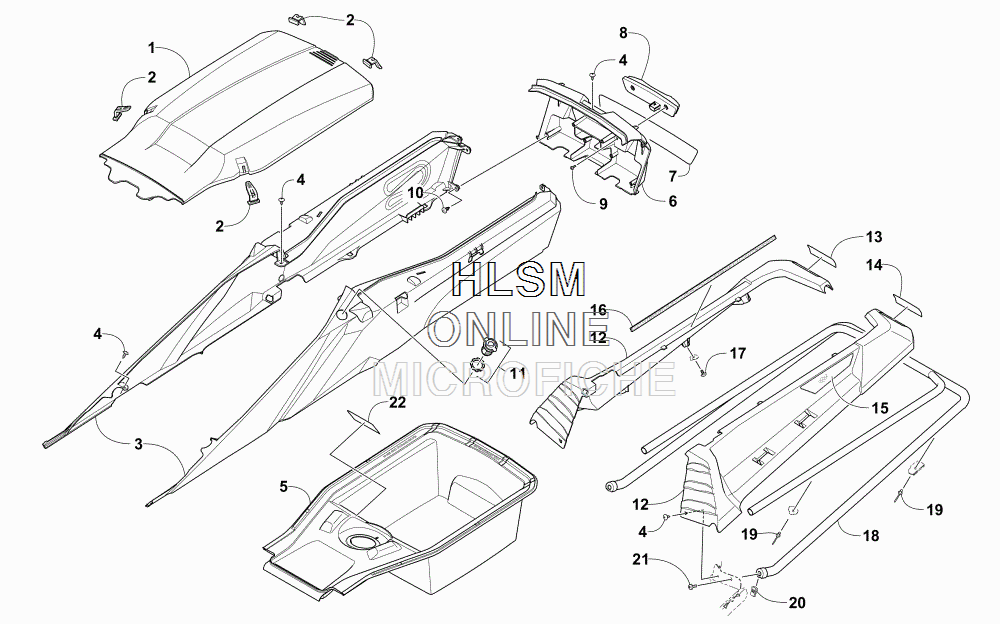

REAR BUMPER- STORAGE- AND TAILLIGHT ASSEMBLY для Arctic Cat PANTERA 7000 BLACK [S2016PTUTOUSB] - 2016 года выпуска`
-
№АртикулНазвание
-
16606-697 LID, STORAGE BOXLID, STORAGE BOX
-
24606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
36606-684 FASCIA, FRONT RACK - RIGHT - BLACKFASCIA, FRONT RACK - RIGHT - BLACK
-
36606-685 FASCIA, FRONT RACK - LEFT - BLACKFASCIA, FRONT RACK - LEFT - BLACK
-
41623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
57606-264 STORAGE TRAYSTORAGE TRAY
-
67606-318 FASCIA, REAR RACKFASCIA, REAR RACK
-
72621-396 DECAL, RACKDECAL, RACK
-
80609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
98476-512 SCREW, MACHINESCREW, MACHINE
-
102623-017 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
110641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
124718-346 PANEL, REAR BUMPER - W/DECALS - RIGHT (INC. 13-15)PANEL, REAR BUMPER - W/DECALS - RIGHT (INC. 13-15)
-
124718-347 PANEL, REAR BUMPER - W/DECALS - LEFT (INC. 13-15)PANEL, REAR BUMPER - W/DECALS - LEFT (INC. 13-15)
-
135611-852 ...DECAL, WARNING - TOWING (FRENCH)...DECAL, WARNING - TOWING (FRENCH)
-
145611-853 ...DECAL, WARNING - TOWING (ENGLISH)...DECAL, WARNING - TOWING (ENGLISH)
-
151621-394 ...DECAL, REFLECTOR - RIGHT - RED...DECAL, REFLECTOR - RIGHT - RED
-
151621-395 ...DECAL, REFLECTOR - LEFT - RED...DECAL, REFLECTOR - LEFT - RED
-
160617-742 SEAL, BUMPER PANELSEAL, BUMPER PANEL
-
171623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
181707-628 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
198060-706 RIVET - BLACKRIVET - BLACK
-
200423-577 CLIP, U-NUTCLIP, U-NUT
-
218477-620 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
