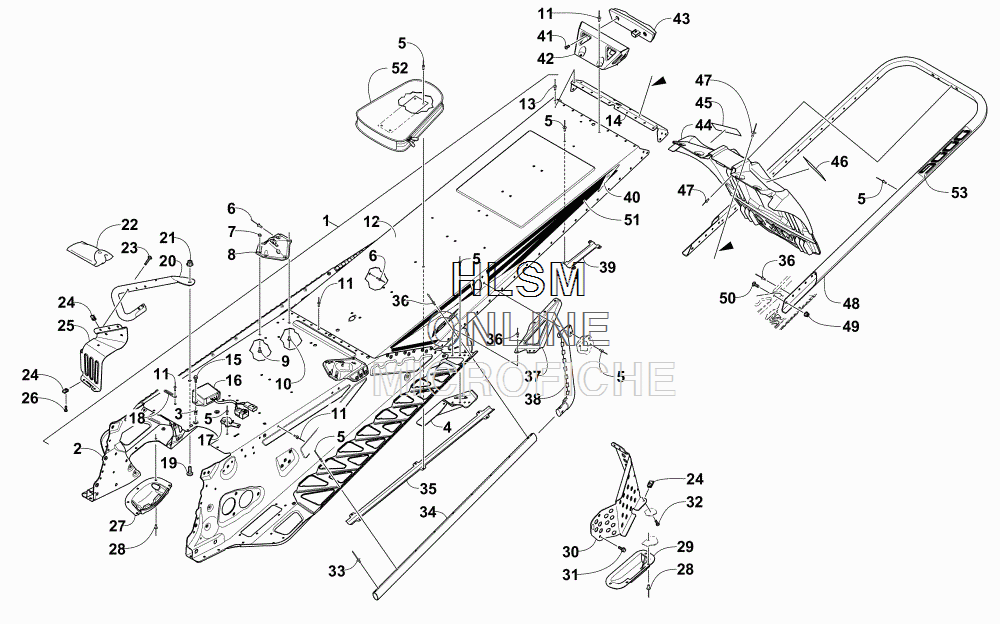

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 9000 SNO PRO 162 GREEN [S2016M9NSEUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • -
    2707-540 COMPLETE CHASSIS ASSEMBLY - BLACK
    COMPLETE CHASSIS ASSEMBLY - BLACK
  • 1
    2707-307 TUNNEL ASSEMBLY - BLACK (INC. 2-14)
    TUNNEL ASSEMBLY - BLACK (INC. 2-14)
  • 2
    2707-294 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-5)
    ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-5)
  • 3
    1623-797 INSERT
    INSERT
  • 4
    2707-286 BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
    BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
  • 4
    2707-287 BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
    BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
  • 5
    8060-706 RIVET - BLACK
    RIVET - BLACK
  • 5
    8060-686 RIVET - ZINC
    RIVET - ZINC
  • 6
    1623-206 RIVET
    RIVET
  • 7
    8422-502 NUT, LOCK
    NUT, LOCK
  • 8
    1707-692 BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
    BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
  • 8
    1707-693 BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
    BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
  • 9
    8476-512 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    1623-257 RIVET
    RIVET
  • 11
    8060-702 RIVET - BLACK
    RIVET - BLACK
  • 11
    8060-682 RIVET - ZINC
    RIVET - ZINC
  • 12
    2707-159 TUNNEL, REAR - BLACK
    TUNNEL, REAR - BLACK
  • 13
    8060-504 RIVET
    RIVET
  • 14
    1707-725 END CAP, TUNNEL - BLACK
    END CAP, TUNNEL - BLACK
  • 15
    8408-516 SCREW, CAP
    SCREW, CAP
  • 16
    0630-288 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 17
    0645-709 CLIP, ROUTING
    CLIP, ROUTING
  • 18
    1623-984 CLAMP, ROUTING
    CLAMP, ROUTING
  • 19
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    1707-454 SUPPORT, FOOTREST - RIGHT - BLACK
    SUPPORT, FOOTREST - RIGHT - BLACK
  • 20
    1707-455 SUPPORT, FOOTREST - LEFT - BLACK
    SUPPORT, FOOTREST - LEFT - BLACK
  • 21
    8427-802 NUT, LOCK
    NUT, LOCK
  • 22
    0744-088 KIT, TOOL
    KIT, TOOL
  • 23
    8468-535 SCREW, MACHINE
    SCREW, MACHINE
  • 24
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 25
    1707-556 FOOTREST - RIGHT - BLACK
    FOOTREST - RIGHT - BLACK
  • 25
    1707-557 FOOTREST - LEFT - BLACK
    FOOTREST - LEFT - BLACK
  • 26
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 27
    1607-109 PROTECTOR, CHAIN CASE
    PROTECTOR, CHAIN CASE
  • 28
    8061-708 RIVET
    RIVET
  • 29
    0607-351 PROTECTOR, BRAKE DISC
    PROTECTOR, BRAKE DISC
  • 30
    2707-044 SHIELD, BRAKE DISC - BLACK
    SHIELD, BRAKE DISC - BLACK
  • 31
    8408-613 SCREW, CAP
    SCREW, CAP
  • 32
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 33
    1623-130 RIVET
    RIVET
  • 34
    1707-697 ROLL, TUNNEL - BLACK
    ROLL, TUNNEL - BLACK
  • 35
    0630-307 PROTECTOR, HARNESS - TAILLIGHT EXTENSION
    PROTECTOR, HARNESS - TAILLIGHT EXTENSION
  • 36
    1623-241 RIVET
    RIVET
  • 37
    2707-288 GUSSET, RUNNING BOARD - RIGHT - BLACK
    GUSSET, RUNNING BOARD - RIGHT - BLACK
  • 37
    2707-289 GUSSET, RUNNING BOARD - LEFT - BLACK
    GUSSET, RUNNING BOARD - LEFT - BLACK
  • 38
    1707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACK
    GUSSET, TUNNEL ROLL - RIGHT - BLACK
  • 38
    1707-701 GUSSET, TUNNEL ROLL - LEFT - BLACK
    GUSSET, TUNNEL ROLL - LEFT - BLACK
  • 39
    0630-280 PROTECTOR, HARNESS - TAILLIGHT (US)
    PROTECTOR, HARNESS - TAILLIGHT (US)
  • 40
    0621-990 DECAL, REFLECTOR - RED
    DECAL, REFLECTOR - RED
  • 41
    8470-510 SCREW, MACHINE
    SCREW, MACHINE
  • 42
    0730-227 BRACKET, MOUNTING - TAILLIGHT - BLACK
    BRACKET, MOUNTING - TAILLIGHT - BLACK
  • 43
    0609-898 TAILLIGHT, LED
    TAILLIGHT, LED
  • 44
    6606-394 SNOWFLAP - BLACK
    SNOWFLAP - BLACK
  • 45
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 46
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 47
    8061-706 RIVET
    RIVET
  • 48
    2707-597 BUMPER, REAR - 162" - PAINTED WHITE
    BUMPER, REAR - 162" - PAINTED WHITE
  • 49
    8427-602 NUT, LOCK
    NUT, LOCK
  • 50
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 51
    2621-504 DECAL, TUNNEL - "162" - RIGHT - GREEN
    DECAL, TUNNEL - "162" - RIGHT - GREEN
  • 51
    2621-505 DECAL, TUNNEL - "162" - LEFT - GREEN
    DECAL, TUNNEL - "162" - LEFT - GREEN
  • 52
    6606-615 BAG, BELT
    BAG, BELT
  • 53
    2621-294 DECAL, REAR BUMPER - "9000"
    DECAL, REAR BUMPER - "9000"
