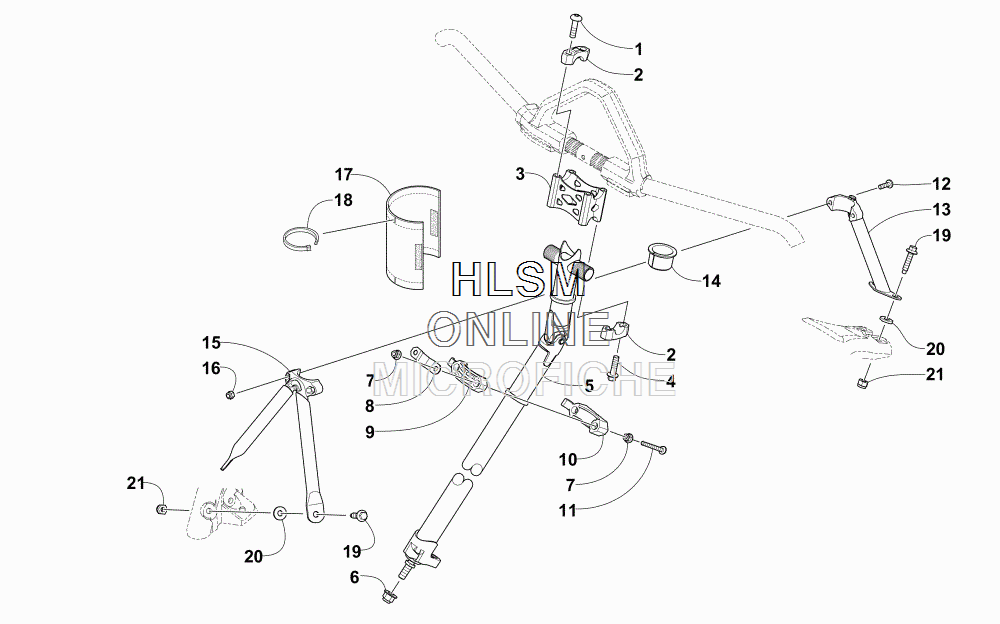

STEERING POST ASSEMBLY для Arctic Cat M 9000 LTD 162 GREEN [S2016M9NLEUSG] - 2016 года выпуска
-
№АртикулНазвание
-
18477-830 SCREW, MACHINESCREW, MACHINE
-
21705-461 CAP, RISER BLOCK - BLACKCAP, RISER BLOCK - BLACK
-
31705-454 BLOCK, RISER - BLACKBLOCK, RISER - BLACK
-
48408-830 SCREW, CAPSCREW, CAP
-
51705-435 POST, STEERINGPOST, STEERING
-
62623-076 NUT, LOCK - W/WASHERNUT, LOCK - W/WASHER
-
78427-602 NUT, LOCKNUT, LOCK
-
80605-998 PLATE, RETAININGPLATE, RETAINING
-
91605-127 BLOCK, MOUNTING - STEERING POST - UPPERBLOCK, MOUNTING - STEERING POST - UPPER
-
101605-128 BLOCK, MOUNTING - STEERING POST - LOWERBLOCK, MOUNTING - STEERING POST - LOWER
-
112623-079 SCREW, MACHINESCREW, MACHINE
-
128468-635 SCREW, MACHINESCREW, MACHINE
-
131705-441 SUPPORT, STEERING POST - REARSUPPORT, STEERING POST - REAR
-
141705-447 BUSHINGBUSHING
-
151705-440 SUPPORT, STEERING POST - FRONTSUPPORT, STEERING POST - FRONT
-
168422-602 NUT, LOCKNUT, LOCK
-
171705-455 WRAP, STEERING POSTWRAP, STEERING POST
-
180123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
191623-982 SCREW, CAPSCREW, CAP
-
201623-968 WASHERWASHER
-
218422-802 NUT, LOCKNUT, LOCK
