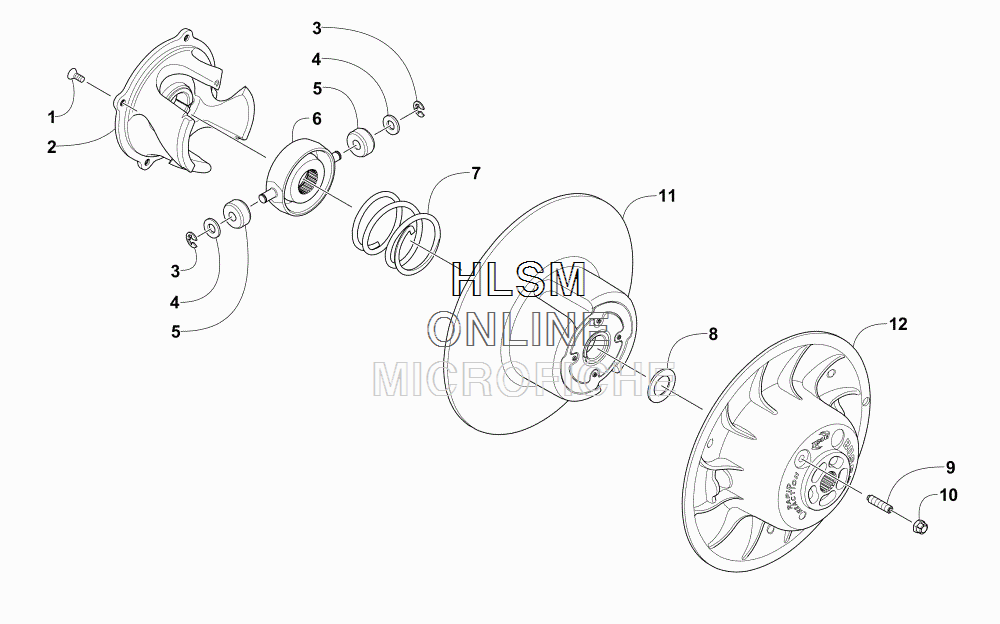

DRIVEN CLUTCH для Arctic Cat M 8000 SNO PRO 153 ES GREEN [S2016M8HMPUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • -
    0726-388 CLUTCH, DRIVEN - ASSEMBLY
    CLUTCH, DRIVEN - ASSEMBLY
  • 1
    0648-875 SCREW, MACHINE
    SCREW, MACHINE
  • 2
    0648-898 CAM, DRIVEN
    CAM, DRIVEN
  • 2
    0648-904 CAM, DRIVEN (BELOW 3,000 FT ALT.)
    CAM, DRIVEN (BELOW 3,000 FT ALT.)
  • 3
    0648-701 RING, RETAINING
    RING, RETAINING
  • 4
    0648-700 WASHER, THRUST
    WASHER, THRUST
  • 5
    0648-842 ROLLER
    ROLLER
  • 6
    0648-841 SPIDER
    SPIDER
  • 7
    0648-876 SPRING, DRIVEN CLUTCH
    SPRING, DRIVEN CLUTCH
  • 7
    0648-857 SPRING, DRIVEN CLUTCH (BELOW 3,000 FT ALT.)
    SPRING, DRIVEN CLUTCH (BELOW 3,000 FT ALT.)
  • 7
    0648-861 SPRING, DRIVEN CLUTCH (3-6,000 FT ALT.)
    SPRING, DRIVEN CLUTCH (3-6,000 FT ALT.)
  • 8
    0648-850 WASHER, SHIM (.090 IN.)
    WASHER, SHIM (.090 IN.)
  • 8
    0648-849 WASHER, SHIM (.030 IN.)
    WASHER, SHIM (.030 IN.)
  • 8
    0645-852 WASHER, SHIM (.015 IN.)
    WASHER, SHIM (.015 IN.)
  • 9
    0648-845 SCREW, SET - ADJUSTER
    SCREW, SET - ADJUSTER
  • 10
    0648-846 NUT, LOCK - ADJUSTER
    NUT, LOCK - ADJUSTER
  • 11
    0748-776 SHEAVE, MOVEABLE
    SHEAVE, MOVEABLE
  • 12
    0748-030 SHEAVE, STATIONARY
    SHEAVE, STATIONARY
