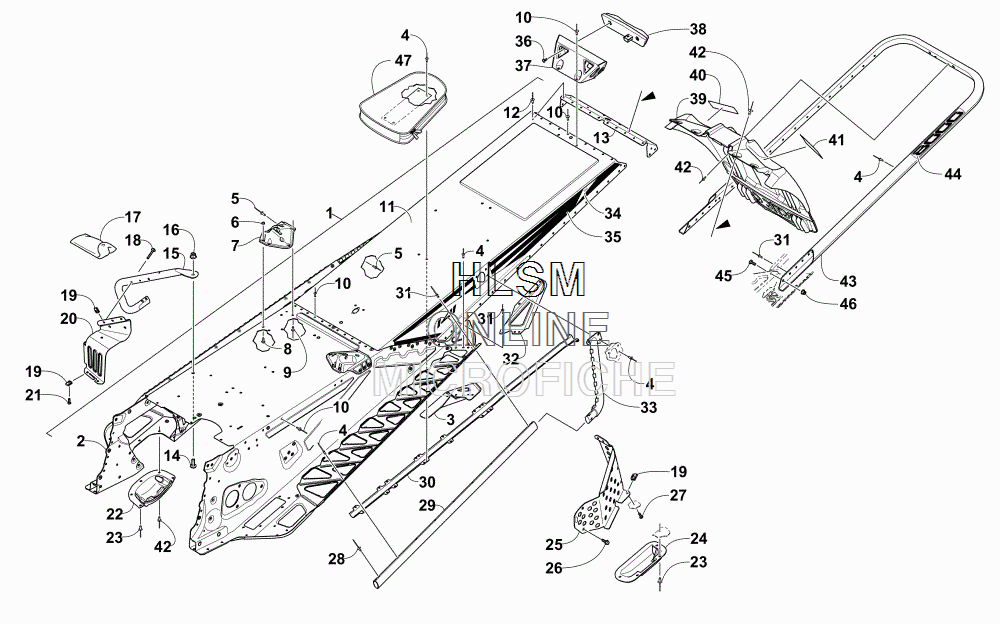

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 8000 SNO PRO 141 GREEN [S2016M8HSMUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • –
    2707-548 COMPLETE CHASSIS ASSEMBLY - BLACK
    COMPLETE CHASSIS ASSEMBLY - BLACK
  • 1
    2707-445 TUNNEL ASSEMBLY - BLACK (INC. 2-13)
    TUNNEL ASSEMBLY - BLACK (INC. 2-13)
  • 2
    2707-294 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)
    ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)
  • 3
    2707-286 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
    ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
  • 3
    2707-287 ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
    ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
  • 4
    8060-706 ......RIVET - BLACK
    ......RIVET - BLACK
  • 5
    1623-206 ...RIVET
    ...RIVET
  • 6
    8422-502 ...NUT, LOCK
    ...NUT, LOCK
  • 7
    1707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
    ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
  • 7
    1707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
    ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
  • 8
    8476-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 9
    1623-257 ...RIVET
    ...RIVET
  • 10
    8060-702 ...RIVET - BLACK
    ...RIVET - BLACK
  • 11
    2707-717 ...TUNNEL, REAR - BLACK
    ...TUNNEL, REAR - BLACK
  • 12
    8060-484 ...RIVET
    ...RIVET
  • 13
    1707-725 ...END CAP, TUNNEL - BLACK
    ...END CAP, TUNNEL - BLACK
  • 14
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    1707-454 SUPPORT, FOOTREST - RIGHT - BLACK
    SUPPORT, FOOTREST - RIGHT - BLACK
  • 15
    1707-455 SUPPORT, FOOTREST - LEFT - BLACK
    SUPPORT, FOOTREST - LEFT - BLACK
  • 16
    8427-802 NUT, LOCK
    NUT, LOCK
  • 17
    0744-087 KIT, TOOL
    KIT, TOOL
  • 18
    8468-535 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 20
    1707-556 FOOTREST - RIGHT - BLACK
    FOOTREST - RIGHT - BLACK
  • 20
    1707-557 FOOTREST - LEFT - BLACK
    FOOTREST - LEFT - BLACK
  • 21
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    1607-109 PROTECTOR, CHAIN CASE
    PROTECTOR, CHAIN CASE
  • 23
    8061-708 RIVET
    RIVET
  • 24
    0607-351 PROTECTOR, BRAKE DISC
    PROTECTOR, BRAKE DISC
  • 25
    2707-044 SHIELD, BRAKE DISC - BLACK
    SHIELD, BRAKE DISC - BLACK
  • 26
    8408-613 SCREW, CAP
    SCREW, CAP
  • 27
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    1623-130 RIVET
    RIVET
  • 29
    1707-697 ROLL, TUNNEL - BLACK
    ROLL, TUNNEL - BLACK
  • 30
    0630-316 PROTECTOR, HARNESS - TAILLIGHT EXTENSION
    PROTECTOR, HARNESS - TAILLIGHT EXTENSION
  • 31
    1623-241 RIVET
    RIVET
  • 32
    2707-288 GUSSET, RUNNING BOARD - RIGHT - BLACK
    GUSSET, RUNNING BOARD - RIGHT - BLACK
  • 32
    2707-289 GUSSET, RUNNING BOARD - LEFT - BLACK
    GUSSET, RUNNING BOARD - LEFT - BLACK
  • 33
    1707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACK
    GUSSET, TUNNEL ROLL - RIGHT - BLACK
  • 33
    1707-701 GUSSET, TUNNEL ROLL - LEFT - BLACK
    GUSSET, TUNNEL ROLL - LEFT - BLACK
  • 34
    0621-990 DECAL, REFLECTOR - RED
    DECAL, REFLECTOR - RED
  • 35
    2621-500 DECAL, TUNNEL - RIGHT
    DECAL, TUNNEL - RIGHT
  • 35
    2621-501 DECAL, TUNNEL - LEFT
    DECAL, TUNNEL - LEFT
  • 36
    8470-510 SCREW, MACHINE
    SCREW, MACHINE
  • 37
    0730-227 BRACKET, MOUNTING - TAILLIGHT - BLACK
    BRACKET, MOUNTING - TAILLIGHT - BLACK
  • 38
    0609-898 TAILLIGHT, LED
    TAILLIGHT, LED
  • 39
    6606-394 SNOWFLAP - BLACK
    SNOWFLAP - BLACK
  • 40
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 41
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 42
    8061-706 RIVET
    RIVET
  • 43
    2707-574 BUMPER, REAR - WHITE
    BUMPER, REAR - WHITE
  • 44
    2621-292 DECAL, BUMPER
    DECAL, BUMPER
  • 45
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 46
    8427-602 NUT, LOCK
    NUT, LOCK
  • 47
    6606-615 BAG, BELT
    BAG, BELT
