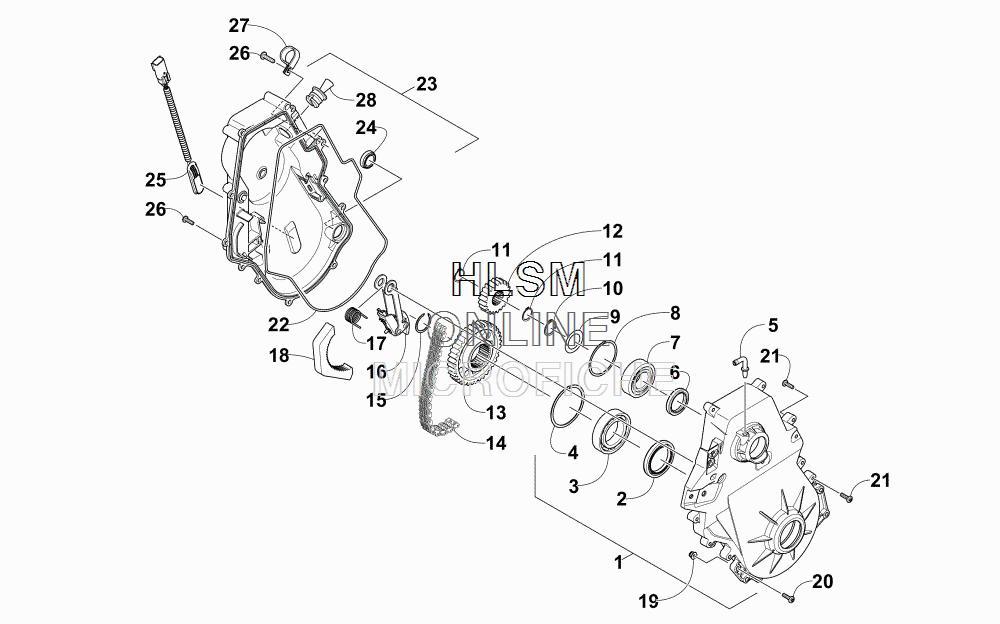

CHAIN CASE ASSEMBLY для Arctic Cat M 8000 SE 153 ES GREEN [S2016M8HM3USG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1702-451 CHAIN CASE ASSEMBLY (INC. 2-8)
    CHAIN CASE ASSEMBLY (INC. 2-8)
  • 2
    2602-172 ...SEAL
    ...SEAL
  • 3
    2602-281 ...BEARING
    ...BEARING
  • 4
    2602-280 ...RING, RETAINING
    ...RING, RETAINING
  • 5
    2602-641 ...FITTING, ELBOW
    ...FITTING, ELBOW
  • 6
    2602-204 ...SEAL
    ...SEAL
  • 7
    2602-734 ...BEARING
    ...BEARING
  • 8
    2602-236 ...RING, RETAINING
    ...RING, RETAINING
  • 9
    0648-443 ...WASHER, SHIM (.060 IN.)
    ...WASHER, SHIM (.060 IN.)
  • 10
    1423-175 ...RING, RETAINING
    ...RING, RETAINING
  • 11
    1623-690 ...RING, RETAINING
    ...RING, RETAINING
  • 12
    2602-823 SPROCKET - 19T (13 WIDE/19 SPLINE)
    SPROCKET - 19T (13 WIDE/19 SPLINE)
  • 13
    2602-746 SPROCKET - 50T (13 WIDE/34 SPLINE)
    SPROCKET - 50T (13 WIDE/34 SPLINE)
  • 14
    2602-760 CHAIN - 90P (13 WIDE)
    CHAIN - 90P (13 WIDE)
  • 15
    2602-629 RING, RETAINING
    RING, RETAINING
  • 16
    1702-398 ARM, TENSIONER - ASSEMBLY
    ARM, TENSIONER - ASSEMBLY
  • 17
    2602-336 SPRING
    SPRING
  • 18
    2602-230 PLATE, RATCHET
    PLATE, RATCHET
  • 19
    8427-602 NUT, LOCK
    NUT, LOCK
  • 20
    8476-630 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    1623-814 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    2602-817 SEAL, CHAIN CASE
    SEAL, CHAIN CASE
  • 23
    1702-445 COVER, CHAIN CASE (INC. 24-25)
    COVER, CHAIN CASE (INC. 24-25)
  • 24
    2602-232 ...GLASS, SIGHT
    ...GLASS, SIGHT
  • 25
    0730-172 ...KIT, SPEEDOMETER SENSOR
    ...KIT, SPEEDOMETER SENSOR
  • 26
    8468-626 SCREW, MACHINE
    SCREW, MACHINE
  • 27
    1623-984 CLAMP, ROUTING
    CLAMP, ROUTING
  • 28
    2602-440 PLUG, FILL
    PLUG, FILL
