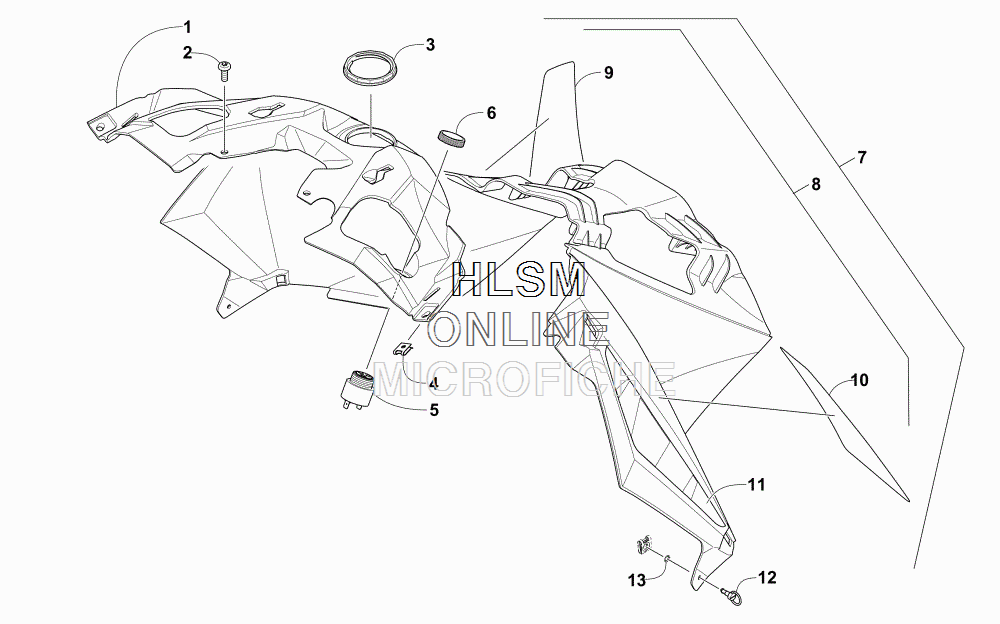

CONSOLE ASSEMBLY для Arctic Cat M 8000 LTD 162 GREEN [S2016M8HPEUSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    6606-645 CONSOLE, UPPER - GREEN
    CONSOLE, UPPER - GREEN
  • 2
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    6606-390 NUT, RETAINING
    NUT, RETAINING
  • 4
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 5
    0630-243 ALARM, REVERSE (INC. 6)
    ALARM, REVERSE (INC. 6)
  • 6
    0630-017 ...RING, RETAINING
    ...RING, RETAINING
  • 7
    4718-658 CONSOLE, LOWER - W/DECALS & WARNINGS - GREEN (INC. 8-11)
    CONSOLE, LOWER - W/DECALS & WARNINGS - GREEN (INC. 8-11)
  • 8
    4718-659 ...CONSOLE, LOWER - W/WARNING DECALS - GREEN (INC. 9-10)
    ...CONSOLE, LOWER - W/WARNING DECALS - GREEN (INC. 9-10)
  • 9
    9611-499 ......DECAL, WARNING - ENGLISH
    ......DECAL, WARNING - ENGLISH
  • 10
    9611-498 ......DECAL, WARNING - FRENCH
    ......DECAL, WARNING - FRENCH
  • 11
    2621-380 ...DECAL, CONSOLE - RIGHT - GREEN
    ...DECAL, CONSOLE - RIGHT - GREEN
  • 11
    2621-381 ...DECAL, CONSOLE - LEFT - GREEN
    ...DECAL, CONSOLE - LEFT - GREEN
  • 12
    2623-003 PIN, RETAINING
    PIN, RETAINING
  • 13
    2623-004 NUT, PUSH
    NUT, PUSH
