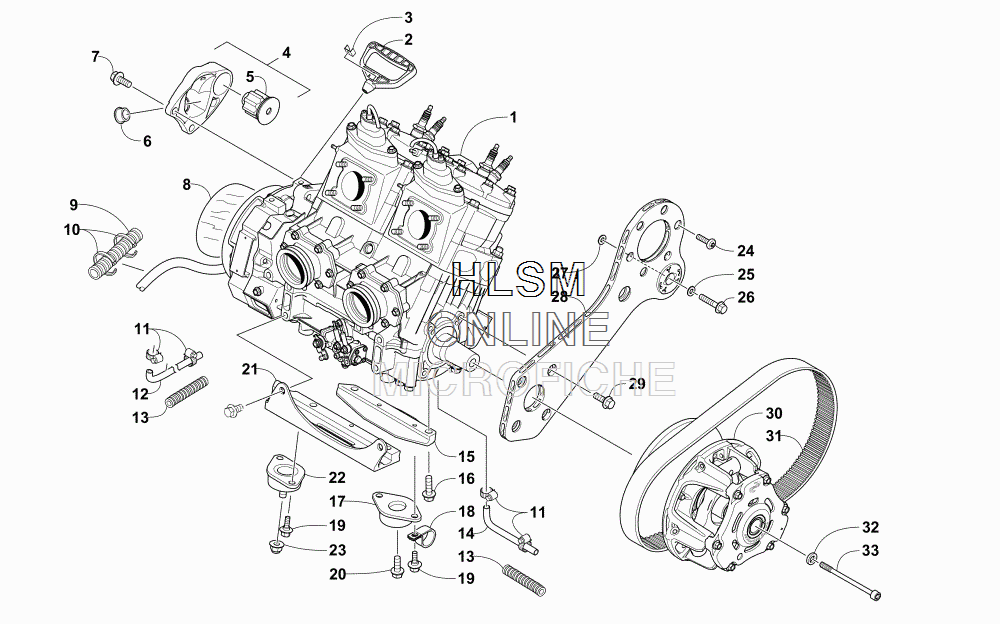

ENGINE AND RELATED PARTS для Arctic Cat M 8000 LTD 153 ES BLACK [S2016M8HLEUSB] - 2016 года выпуска`
-
№АртикулНазвание
-
10662-609 ENGINE, AB80L4 - W/O EFI COMPONENTSENGINE, AB80L4 - W/O EFI COMPONENTS
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40708-582 BRACKET, ENGINE MOUNTING - MAG (INC. 5-6)BRACKET, ENGINE MOUNTING - MAG (INC. 5-6)
-
50608-630 ...MOUNT, ENGINE...MOUNT, ENGINE
-
60608-633 ...BUSHING...BUSHING
-
78409-026 SCREW, CAPSCREW, CAP
-
84606-425 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
91619-131 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
100123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
110623-373 CLAMP, HOSECLAMP, HOSE
-
120610-923 HOSE, COOLANT - MAG/THROTTLE BODYHOSE, COOLANT - MAG/THROTTLE BODY
-
130619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
140610-878 HOSE, COOLANTHOSE, COOLANT
-
150708-602 PLATE, ENGINE MOUNTING - LOWER REARPLATE, ENGINE MOUNTING - LOWER REAR
-
168409-036 SCREW, CAPSCREW, CAP
-
170608-496 MOUNT, ENGINE ((3/4 IN. ID) - 12 IN.)MOUNT, ENGINE ((3/4 IN. ID) - 12 IN.)
-
181623-080 CLAMP, ROUTINGCLAMP, ROUTING
-
191623-944 SCREW, SHOULDERSCREW, SHOULDER
-
208409-017 SCREW, CAPSCREW, CAP
-
210708-600 PLATE, ENGINE MOUNTING - LOWER FRONTPLATE, ENGINE MOUNTING - LOWER FRONT
-
220708-587 MOUNT, ENGINE - LOWERMOUNT, ENGINE - LOWER
-
238427-002 NUT, LOCKNUT, LOCK
-
248468-617 SCREW, MACHINESCREW, MACHINE
-
258050-242 WASHERWASHER
-
261623-932 SCREW, CAPSCREW, CAP
-
270623-987 WASHER, SPRINGWASHER, SPRING
-
280708-622 PLATE, ENGINE MOUNTING - PTOPLATE, ENGINE MOUNTING - PTO
-
291623-937 SCREW, CAPSCREW, CAP
-
300746-862 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
310627-084 BELT, DRIVEBELT, DRIVE
-
321623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
332623-180 BOLT, CLUTCHBOLT, CLUTCH
