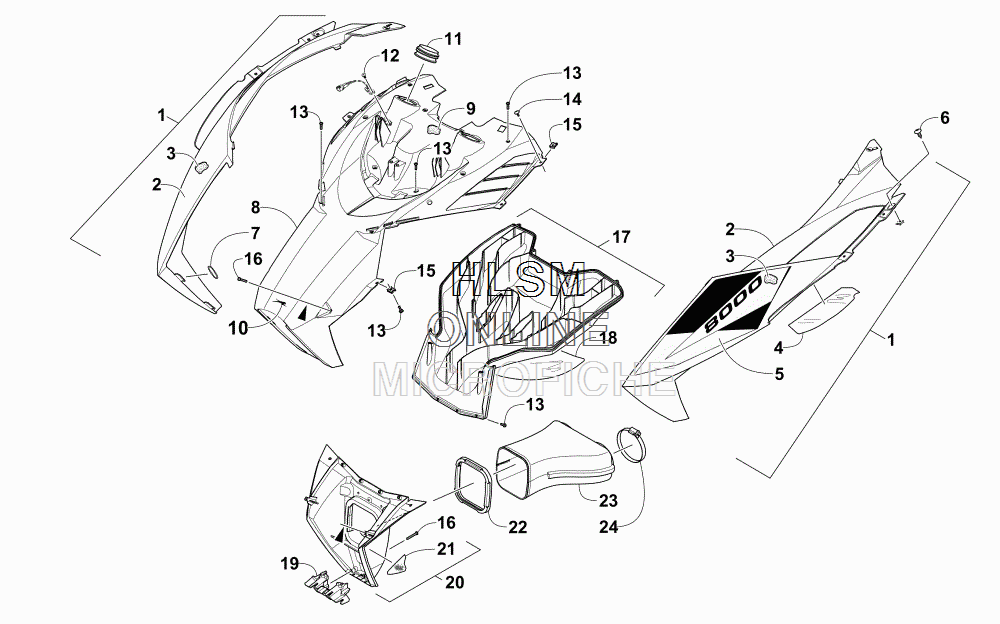

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat M 8000 HARDCORE LTD 153 GREEN [S2016M8HHSOSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-662 HOOD W/DECALS - RIGHT - GREEN (INC. 2-3 AND 5)
    HOOD W/DECALS - RIGHT - GREEN (INC. 2-3 AND 5)
  • 1
    4718-663 HOOD W/DECALS - LEFT - GREEN (INC. 2-5)
    HOOD W/DECALS - LEFT - GREEN (INC. 2-5)
  • 2
    3718-656 ...HOOD W/O DECALS - RIGHT - GREEN (INC. 3)
    ...HOOD W/O DECALS - RIGHT - GREEN (INC. 3)
  • 2
    3718-657 ...HOOD W/O DECALS - LEFT - GREEN (INC. 3-4)
    ...HOOD W/O DECALS - LEFT - GREEN (INC. 3-4)
  • 3
    0617-646 ......FOAM, HOOD - RIGHT
    ......FOAM, HOOD - RIGHT
  • 3
    0617-647 ......FOAM, HOOD - LEFT
    ......FOAM, HOOD - LEFT
  • 4
    6606-407 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 5
    2621-386 ...DECAL, HOOD - RIGHT - GREEN
    ...DECAL, HOOD - RIGHT - GREEN
  • 5
    2621-387 ...DECAL, HOOD - LEFT - GREEN
    ...DECAL, HOOD - LEFT - GREEN
  • 6
    0623-784 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 7
    1623-960 O-RING
    O-RING
  • 8
    5706-356 PLENUM, INTAKE - UPPER (INC. 9)
    PLENUM, INTAKE - UPPER (INC. 9)
  • 9
    0617-648 ...FOAM, INTAKE
    ...FOAM, INTAKE
  • 10
    4411-479 DECAL, AIRCAT
    DECAL, AIRCAT
  • 11
    6606-386 BOOT, INTAKE
    BOOT, INTAKE
  • 12
    0623-165 CLIP, RETAINING
    CLIP, RETAINING
  • 13
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 16
    1623-929 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    5706-358 PLENUM, INTAKE - LOWER REAR (INC. 18)
    PLENUM, INTAKE - LOWER REAR (INC. 18)
  • 18
    6606-406 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 19
    6606-822 RETAINER, PLENUM
    RETAINER, PLENUM
  • 20
    5706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 21)
    PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 21)
  • 21
    0621-989 ...DECAL, REFLECTOR - AMBER
    ...DECAL, REFLECTOR - AMBER
  • 22
    0617-624 ADAPTER, BOOT
    ADAPTER, BOOT
  • 23
    2670-328 BOOT
    BOOT
  • 24
    0423-018 CLAMP, HOSE
    CLAMP, HOSE
