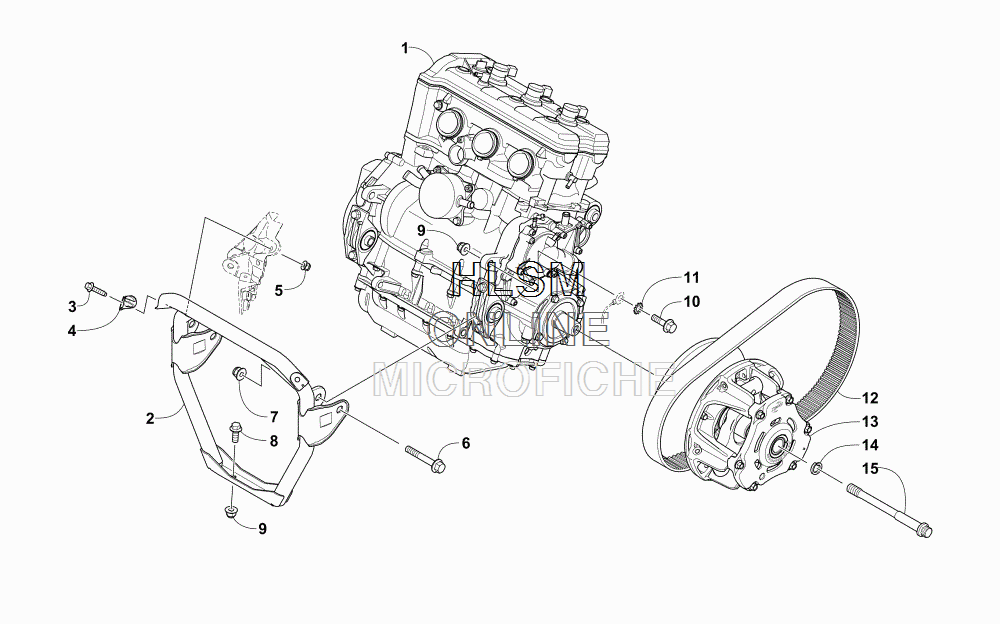

ENGINE AND RELATED PARTS для Arctic Cat M 7000 LTD 162 BLACK [S2016M7UELUSB] - 2016 года выпуска`
-
№АртикулНазвание
-
10662-614 ENGINEENGINE
-
20708-591 BRACKET, ENGINE MOUNTING - FRONTBRACKET, ENGINE MOUNTING - FRONT
-
38408-830 SCREW, CAPSCREW, CAP
-
41607-002 INSERTINSERT
-
58427-802 NUT, LOCKNUT, LOCK
-
68413-275 SCREW, CAPSCREW, CAP
-
78427-202 NUT, LOCKNUT, LOCK
-
88408-025 SCREW, CAPSCREW, CAP
-
98427-002 NUT, LOCKNUT, LOCK
-
108408-030 SCREW, CAPSCREW, CAP
-
118053-272 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
120627-070 BELT, DRIVEBELT, DRIVE
-
130746-852 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
140623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
150623-804 BOLT, CLUTCHBOLT, CLUTCH
