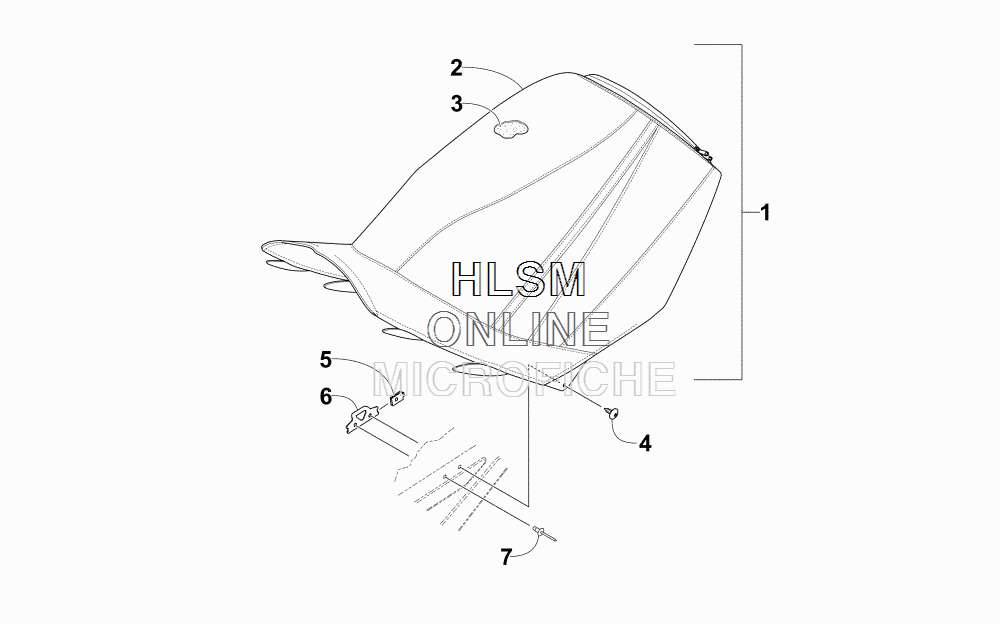

SEAT ASSEMBLY для Arctic Cat M 6000 SNO PRO 141 GREEN [S2016M6DSMUSG] - 2016 года выпуска
-
№АртикулНазвание
-
15706-720 COMPLETE SEAT ASSEMBLY (INC. 2-3)COMPLETE SEAT ASSEMBLY (INC. 2-3)
-
25706-718 ...COVER, SEAT - GREEN...COVER, SEAT - GREEN
-
30717-213 ...FOAM, SEAT...FOAM, SEAT
-
41623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
51623-052 CLIP, U-NUTCLIP, U-NUT
-
66606-704 PLATE, RETAININGPLATE, RETAINING
-
78060-702 RIVET - BLACKRIVET - BLACK
