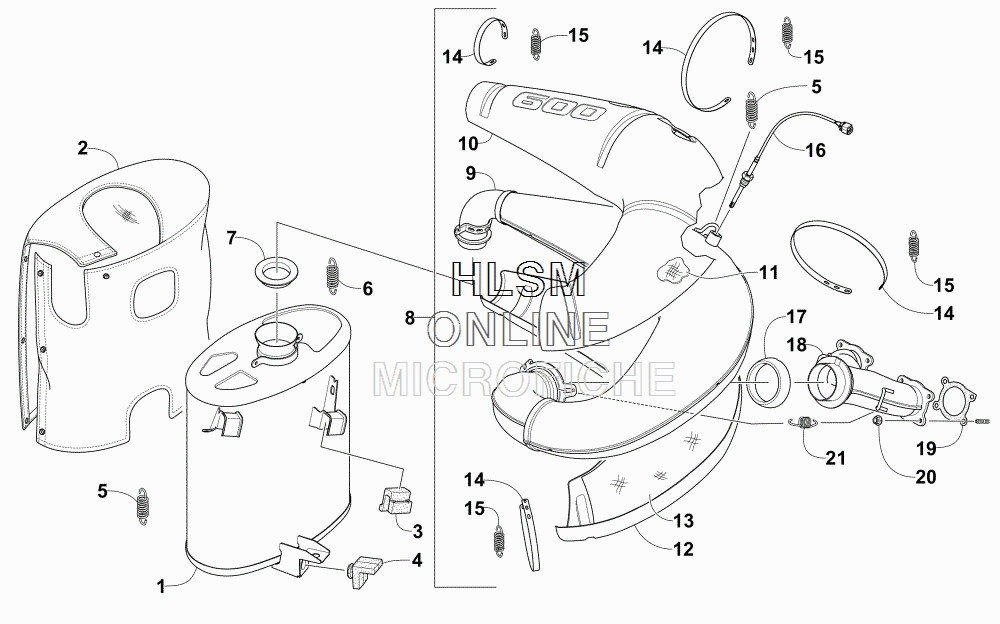

EXHAUST ASSEMBLY для Arctic Cat M 6000 ES 141 GREEN [S2016M6DM2USG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1712-970 RESONATOR ASSEMBLY
    RESONATOR ASSEMBLY
  • 2
    2612-573 COVER, RESONATOR
    COVER, RESONATOR
  • 3
    2612-893 GROMMET, RUBBER - UPPER
    GROMMET, RUBBER - UPPER
  • 4
    2612-706 GROMMET, RESONATOR MOUNT
    GROMMET, RESONATOR MOUNT
  • 5
    2612-949 SPRING, EXHAUST
    SPRING, EXHAUST
  • 6
    0612-471 SPRING, EXTENSION
    SPRING, EXTENSION
  • 7
    1612-323 GASKET, EXHAUST PIPE
    GASKET, EXHAUST PIPE
  • 8
    1712-816 CHAMBER, EXPANSION - ASSEMBLY (INC. 9-15)
    CHAMBER, EXPANSION - ASSEMBLY (INC. 9-15)
  • 9
    1712-817 ...CHAMBER, EXPANSION
    ...CHAMBER, EXPANSION
  • 10
    2612-870 ...COVER, EXPANSION CHAMBER - UPPER
    ...COVER, EXPANSION CHAMBER - UPPER
  • 11
    2612-872 ...PACKING, EXPANSION CHAMBER - UPPER
    ...PACKING, EXPANSION CHAMBER - UPPER
  • 12
    2612-871 ...COVER, EXPANSION CHAMBER - LOWER
    ...COVER, EXPANSION CHAMBER - LOWER
  • 13
    2612-873 ...PACKING, EXPANSION CHAMBER - LOWER
    ...PACKING, EXPANSION CHAMBER - LOWER
  • 14
    0624-552 ...TIE, PERFORATED BAND - 5 FT
    ...TIE, PERFORATED BAND - 5 FT
  • 14
    0624-541 ...TIE, PERFORATED BAND - 25 FT
    ...TIE, PERFORATED BAND - 25 FT
  • 15
    1612-178 ...SPRING, EXHAUST
    ...SPRING, EXHAUST
  • 16
    0630-330 SENSOR, EXHAUST TEMP
    SENSOR, EXHAUST TEMP
  • 17
    2612-615 SEAL, EXHAUST PIPE
    SEAL, EXHAUST PIPE
  • 18
    1712-811 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 19
    0930-023 GASKET, EXHAUST
    GASKET, EXHAUST
  • 20
    8424-604 NUT
    NUT
  • 21
    0612-668 SPRING, EXTENSION
    SPRING, EXTENSION
