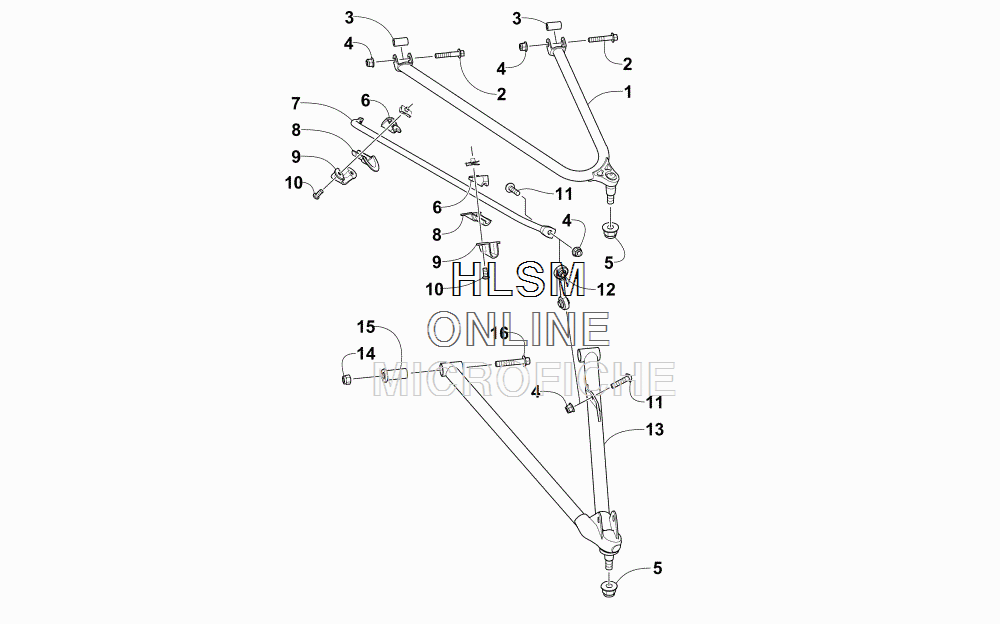

A-ARM AND SWAY BAR ASSEMBLY для Arctic Cat BEARCAT 7000 XT GROOMER SPECIAL ORANGE [S2016BCUWGUSO] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    3703-060 A-ARM, UPPER RIGHT - BLACK
    A-ARM, UPPER RIGHT - BLACK
  • 1
    3703-061 A-ARM, UPPER LEFT - BLACK
    A-ARM, UPPER LEFT - BLACK
  • 2
    8408-845 SCREW, CAP
    SCREW, CAP
  • 3
    2603-841 AXLE, UPPER
    AXLE, UPPER
  • 4
    8427-802 NUT, LOCK
    NUT, LOCK
  • 5
    8427-202 NUT, LOCK
    NUT, LOCK
  • 6
    2603-946 BUSHING
    BUSHING
  • 7
    3703-052 BAR, SWAY
    BAR, SWAY
  • 8
    2603-947 BUSHING
    BUSHING
  • 9
    2603-857 BRACKET, MOUNTING - SWAY BAR
    BRACKET, MOUNTING - SWAY BAR
  • 10
    8468-617 SCREW, MACHINE
    SCREW, MACHINE
  • 11
    8476-835 SCREW, CAP
    SCREW, CAP
  • 12
    3603-295 LINK, SWAY BAR
    LINK, SWAY BAR
  • 13
    3703-056 A-ARM, LOWER RIGHT - BLACK
    A-ARM, LOWER RIGHT - BLACK
  • 13
    3703-057 A-ARM, LOWER LEFT - BLACK
    A-ARM, LOWER LEFT - BLACK
  • 14
    8427-002 NUT, LOCK
    NUT, LOCK
  • 15
    3603-240 AXLE, LOWER A-ARM
    AXLE, LOWER A-ARM
  • 16
    8411-070 SCREW, CAP
    SCREW, CAP
