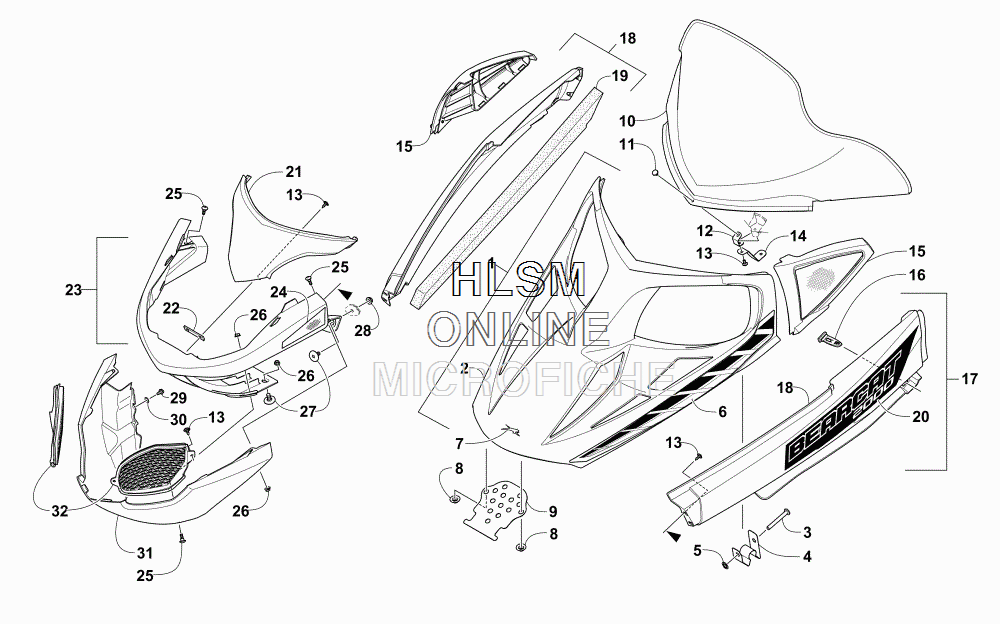

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat BEARCAT 2000 LT BLUE [ACS2016BCDFCUSL] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-965 HOOD W/DECALS - WHITE (INC. 2-8)
    HOOD W/DECALS - WHITE (INC. 2-8)
  • 2
    7800-956 ...HOOD W/O DECALS - WHITE (INC. 3-5)
    ...HOOD W/O DECALS - WHITE (INC. 3-5)
  • 3
    1623-610 ......PIN, RETAINING
    ......PIN, RETAINING
  • 4
    5706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT
    ......CLIP, HOOD HOLD-DOWN - RIGHT
  • 4
    5706-085 ......CLIP, HOOD HOLD-DOWN - LEFT
    ......CLIP, HOOD HOLD-DOWN - LEFT
  • 5
    1623-409 ......NUT, PUSH
    ......NUT, PUSH
  • 6
    2621-780 ...DECAL, HOOD - RIGHT
    ...DECAL, HOOD - RIGHT
  • 6
    2621-781 ...DECAL, HOOD - LEFT
    ...DECAL, HOOD - LEFT
  • 7
    4411-479 ...DECAL, AIRCAT
    ...DECAL, AIRCAT
  • 8
    1623-469 ...NUT, STAMPED
    ...NUT, STAMPED
  • 9
    5606-042 BRACKET, HINGE
    BRACKET, HINGE
  • 10
    5606-962 WINDSHIELD, HIGH - TINT
    WINDSHIELD, HIGH - TINT
  • 11
    1623-677 RIVET, PLASTIC
    RIVET, PLASTIC
  • 12
    4606-961 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 13
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    5606-277 BRACKET, WINDSHIELD
    BRACKET, WINDSHIELD
  • 15
    5606-940 BEZEL, INTAKE - RIGHT - WHITE
    BEZEL, INTAKE - RIGHT - WHITE
  • 15
    5606-941 BEZEL, INTAKE - LEFT - WHITE
    BEZEL, INTAKE - LEFT - WHITE
  • 16
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 17
    4718-966 SPAR, FRONT - W/DECALS - RIGHT - BLUE (INC. 18-19 AND ONE NO. 20)
    SPAR, FRONT - W/DECALS - RIGHT - BLUE (INC. 18-19 AND ONE NO. 20)
  • 17
    4718-967 SPAR, FRONT - W/DECALS - LEFT - BLUE (INC. 18-19 AND ONE NO. 20)
    SPAR, FRONT - W/DECALS - LEFT - BLUE (INC. 18-19 AND ONE NO. 20)
  • 18
    3718-834 ...SPAR, FRONT - W/O DECALS - RIGHT - BLUE (INC. 19)
    ...SPAR, FRONT - W/O DECALS - RIGHT - BLUE (INC. 19)
  • 18
    3718-835 ...SPAR, FRONT - W/O DECALS - LEFT - BLUE (INC. 19)
    ...SPAR, FRONT - W/O DECALS - LEFT - BLUE (INC. 19)
  • 19
    0617-656 ......FOAM, FRONT SPAR - RIGHT
    ......FOAM, FRONT SPAR - RIGHT
  • 19
    0617-657 ......FOAM, FRONT SPAR - LEFT
    ......FOAM, FRONT SPAR - LEFT
  • 20
    2621-782 ...DECAL, FRONT SPAR - RIGHT
    ...DECAL, FRONT SPAR - RIGHT
  • 20
    2621-783 ...DECAL, FRONT SPAR - LEFT
    ...DECAL, FRONT SPAR - LEFT
  • 21
    5606-991 FASCIA, BUMPER - UPPER - WHITE
    FASCIA, BUMPER - UPPER - WHITE
  • 22
    5606-953 SPACER
    SPACER
  • 23
    2718-925 BUMPER, FRONT - WHITE (INC. 24)
    BUMPER, FRONT - WHITE (INC. 24)
  • 24
    9611-384 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 24
    9611-385 ...DECAL, REFLECTOR - LEFT - AMBER
    ...DECAL, REFLECTOR - LEFT - AMBER
  • 25
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 26
    8427-602 NUT, LOCK
    NUT, LOCK
  • 27
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 28
    8424-602 NUT, LOCK
    NUT, LOCK
  • 29
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 30
    8053-242 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 31
    5606-462 FASCIA, BUMPER - LOWER - MOLD - BLACK
    FASCIA, BUMPER - LOWER - MOLD - BLACK
  • 32
    4606-604 VENT, BUMPER - RIGHT - BLACK
    VENT, BUMPER - RIGHT - BLACK
  • 32
    4606-605 VENT, BUMPER - LEFT - MOLD - BLACK
    VENT, BUMPER - LEFT - MOLD - BLACK
