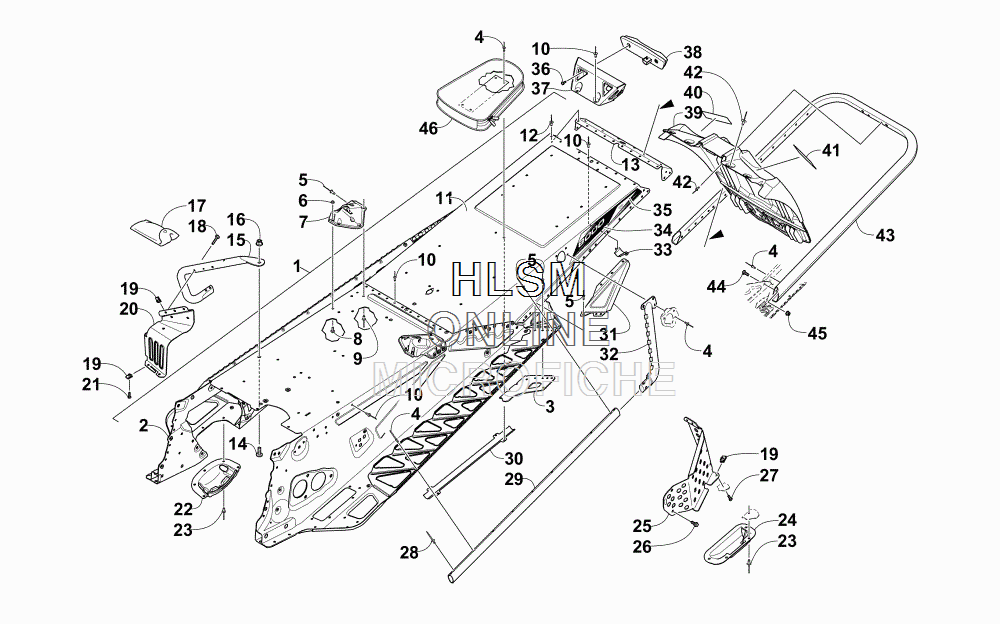

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 8000 SNO PRO (GREEN) [S2015ZRHSPUSG] - 2015 года выпуска`
-
№АртикулНазвание
-
-1707-823 COMPLETE CHASSIS ASSEMBLY - (128 IN.) 2 STROKECOMPLETE CHASSIS ASSEMBLY - (128 IN.) 2 STROKE
-
11707-912 TUNNEL ASSEMBLY (INC. 2-13)TUNNEL ASSEMBLY (INC. 2-13)
-
21707-981 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
-
30607-992 ......BRACKET, MOUNTING - SUSPENSION - RIGHT......BRACKET, MOUNTING - SUSPENSION - RIGHT
-
30607-993 ......BRACKET, MOUNTING - SUSPENSION - LEFT......BRACKET, MOUNTING - SUSPENSION - LEFT
-
48060-686 ......RIVET......RIVET
-
51623-241 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
71707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET...RIVET
-
111607-250 ...TUNNEL, REAR - (128 IN.)...TUNNEL, REAR - (128 IN.)
-
128060-484 ...RIVET...RIVET
-
131607-104 ...END CAP, TUNNEL...END CAP, TUNNEL
-
148476-820 SCREW, MACHINESCREW, MACHINE
-
151707-454 SUPPORT, FOOTREST - RIGHT - (BLACK)SUPPORT, FOOTREST - RIGHT - (BLACK)
-
151707-455 SUPPORT, FOOTREST - LEFT - (BLACK)SUPPORT, FOOTREST - LEFT - (BLACK)
-
168427-802 NUT, LOCKNUT, LOCK
-
170744-076 KIT, TOOLKIT, TOOL
-
188468-535 SCREW, MACHINESCREW, MACHINE
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
200607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
200607-997 FOOTREST - LEFTFOOTREST - LEFT
-
218470-516 SCREW, MACHINESCREW, MACHINE
-
221607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
238061-708 RIVETRIVET
-
240607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
251607-371 SHIELD, BRAKE DISCSHIELD, BRAKE DISC
-
268408-613 SCREW, CAPSCREW, CAP
-
278470-520 SCREW, MACHINESCREW, MACHINE
-
281623-130 RIVETRIVET
-
291607-092 ROLL, TUNNELROLL, TUNNEL
-
300630-308 PROTECTOR, HARNESS - TAILLIGHT EXTENSION - (128 IN.)PROTECTOR, HARNESS - TAILLIGHT EXTENSION - (128 IN.)
-
311607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
311607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
321607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
321607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
330630-292 PROTECTOR, HARNESS - TAILLIGHT - (26.5MM)PROTECTOR, HARNESS - TAILLIGHT - (26.5MM)
-
341621-518 DECAL, TUNNEL - (129 IN.) - "8000" - RIGHT - (GREEN)DECAL, TUNNEL - (129 IN.) - "8000" - RIGHT - (GREEN)
-
341621-519 DECAL, TUNNEL - (129 IN.) - "8000" - LEFT - (GREEN)DECAL, TUNNEL - (129 IN.) - "8000" - LEFT - (GREEN)
-
350621-990 DECAL, REFLECTOR - (RED)DECAL, REFLECTOR - (RED)
-
368470-510 SCREW, MACHINESCREW, MACHINE
-
370630-328 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
380609-898 TAILLIGHT, (RED)TAILLIGHT, (RED)
-
396606-394 SNOWFLAP - (BLACK)SNOWFLAP - (BLACK)
-
405611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
415611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
428061-706 RIVETRIVET
-
432707-578 BUMPER,REAR-(129 IN.)-PTD-(BLACK)BUMPER,REAR-(129 IN.)-PTD-(BLACK)
-
448476-620 SCREW, MACHINESCREW, MACHINE
-
458427-602 NUT, LOCKNUT, LOCK
-
466606-615 BAG, BELTBAG, BELT
