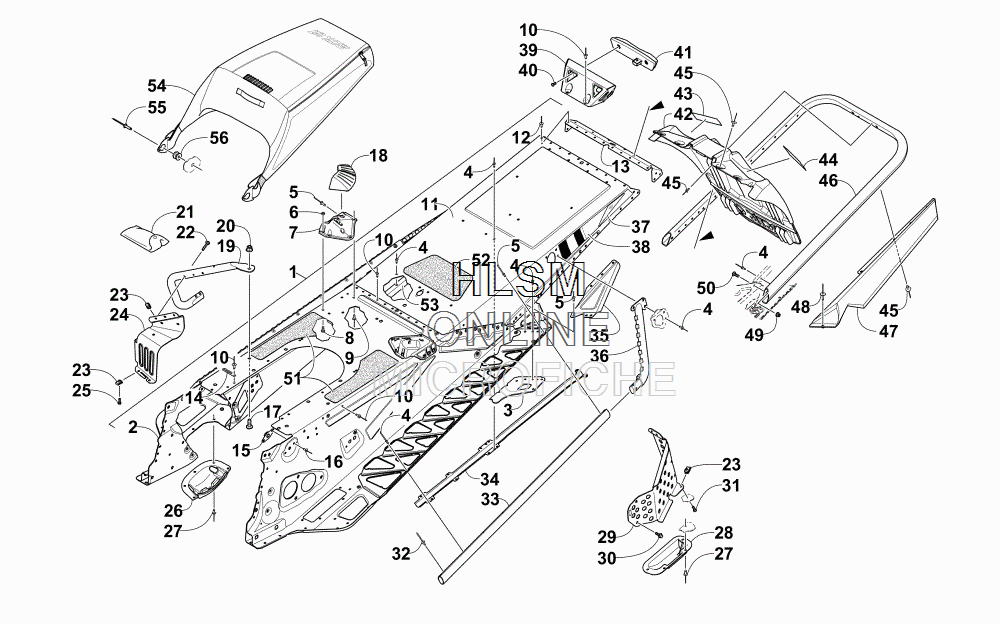

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 7000 SNO PRO LTD (ORANGE) [S2015ZRULEUSO] - 2015 года выпуска
-
№АртикулНазвание
-
-2707-079 COMPLETE CHASSIS ASSEMBLY - (128 IN.) - (BLACK)COMPLETE CHASSIS ASSEMBLY - (128 IN.) - (BLACK)
-
12707-399 TUNNEL ASSEMBLY - (BLACK) (INC. 2-13)TUNNEL ASSEMBLY - (BLACK) (INC. 2-13)
-
22707-397 ...TUNNEL, FRONT - ASSEMBLY - (BLACK) (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - (BLACK) (INC. 3-4)
-
31707-916 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - (BLACK)......BRACKET, MOUNTING - SUSPENSION - RIGHT - (BLACK)
-
31707-917 ......BRACKET, MOUNTING - SUSPENSION - LEFT - (BLACK)......BRACKET, MOUNTING - SUSPENSION - LEFT - (BLACK)
-
48060-706 ......RIVET......RIVET
-
51623-241 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - (BLACK)...BRACKET, MOUNTING - REAR SPAR - RIGHT - (BLACK)
-
71707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - (BLACK)...BRACKET, MOUNTING - REAR SPAR - LEFT - (BLACK)
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-702 ...RIVET...RIVET
-
112707-395 ...TUNNEL, REAR - (BLACK)...TUNNEL, REAR - (BLACK)
-
128060-504 ...RIVET...RIVET
-
131707-725 ...END CAP, TUNNEL - (BLACK)...END CAP, TUNNEL - (BLACK)
-
141623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLECLAMP, WIRE - 76.14MM LG W/6.25 HOLE
-
150608-631 PLATE, RETAININGPLATE, RETAINING
-
168060-708 RIVETRIVET
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
186606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
186606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
191707-454 SUPPORT, FOOTREST - RIGHT - (BLACK)SUPPORT, FOOTREST - RIGHT - (BLACK)
-
191707-455 SUPPORT, FOOTREST - LEFT - (BLACK)SUPPORT, FOOTREST - LEFT - (BLACK)
-
208427-802 NUT, LOCKNUT, LOCK
-
210744-064 KIT, TOOLKIT, TOOL
-
228468-535 SCREW, MACHINESCREW, MACHINE
-
231623-637 CLIP, U-NUTCLIP, U-NUT
-
241707-556 FOOTREST - RIGHT - (BLACK)FOOTREST - RIGHT - (BLACK)
-
241707-557 FOOTREST - LEFT - (BLACK)FOOTREST - LEFT - (BLACK)
-
258470-516 SCREW, MACHINESCREW, MACHINE
-
261607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
278061-708 RIVETRIVET
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
292707-044 SHIELD, BRAKE DISC - (BLACK)SHIELD, BRAKE DISC - (BLACK)
-
308408-613 SCREW, CAPSCREW, CAP
-
318470-520 SCREW, MACHINESCREW, MACHINE
-
321623-130 RIVETRIVET
-
331707-697 ROLL, TUNNEL - (BLACK)ROLL, TUNNEL - (BLACK)
-
340630-315 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
351707-698 GUSSET, RUNNING BOARD - RIGHT - (BLACK)GUSSET, RUNNING BOARD - RIGHT - (BLACK)
-
351707-699 GUSSET, RUNNING BOARD - LEFT - (BLACK)GUSSET, RUNNING BOARD - LEFT - (BLACK)
-
361707-700 GUSSET, TUNNEL ROLL - RIGHT - (BLACK)GUSSET, TUNNEL ROLL - RIGHT - (BLACK)
-
361707-701 GUSSET, TUNNEL ROLL - LEFT - (BLACK)GUSSET, TUNNEL ROLL - LEFT - (BLACK)
-
370621-990 DECAL, REFLECTOR - (RED)DECAL, REFLECTOR - (RED)
-
381621-636 DECAL, TUNNEL - RIGHT - (129 IN.) - (ORANGE)DECAL, TUNNEL - RIGHT - (129 IN.) - (ORANGE)
-
381621-637 DECAL, TUNNEL - LEFT - (129 IN.) - (ORANGE)DECAL, TUNNEL - LEFT - (129 IN.) - (ORANGE)
-
390730-227 BRACKET, MOUNTING - TAILLIGHT - (BLACK)BRACKET, MOUNTING - TAILLIGHT - (BLACK)
-
408470-510 SCREW, MACHINESCREW, MACHINE
-
410609-898 TAILLIGHT, (RED)TAILLIGHT, (RED)
-
426606-394 SNOWFLAP - (BLACK)SNOWFLAP - (BLACK)
-
435611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
445611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
458061-706 RIVETRIVET
-
462707-578 BUMPER,REAR-(129 IN.)-PTD-(BLACK)BUMPER,REAR-(129 IN.)-PTD-(BLACK)
-
476606-870 FLARE, TUNNEL - RIGHT - (BLACK)FLARE, TUNNEL - RIGHT - (BLACK)
-
476606-871 FLARE, TUNNEL - LEFT - (BLACK)FLARE, TUNNEL - LEFT - (BLACK)
-
488060-710 RIVETRIVET
-
498427-602 NUT, LOCKNUT, LOCK
-
508476-620 SCREW, MACHINESCREW, MACHINE
-
516606-814 PAD, FUEL TANK - RIGHTPAD, FUEL TANK - RIGHT
-
516606-815 PAD, FUEL TANK - LEFTPAD, FUEL TANK - LEFT
-
526606-816 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
-
531607-454 PROTECTOR, TUNNEL - (128 IN.)PROTECTOR, TUNNEL - (128 IN.)
-
546606-952 SADDLEBAGSADDLEBAG
-
558060-630 RIVETRIVET
-
561623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
