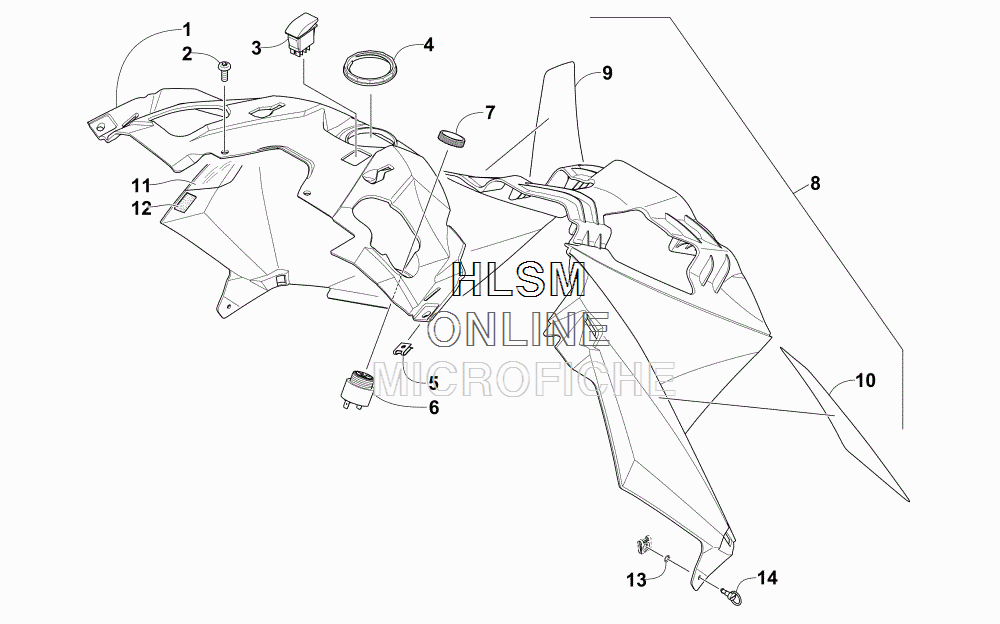

CONSOLE ASSEMBLY для Arctic Cat ZR 7000 SNO PRO LTD EL TIGRE (INTERNATIONAL) (GREEN) [S2015ZRUEEOSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-161 CONSOLE, UPPER - (BLACK)
    CONSOLE, UPPER - (BLACK)
  • 2
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    0609-836 SWITCH, HEATED SEAT
    SWITCH, HEATED SEAT
  • 4
    6606-390 NUT, RETAINING
    NUT, RETAINING
  • 5
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 6
    0630-243 ALARM, REVERSE (INC. 7)
    ALARM, REVERSE (INC. 7)
  • 7
    0630-017 ...RING, RETAINING
    ...RING, RETAINING
  • 8
    4718-454 CONSOLE, LOWER - BLACK (INC. 9-12)
    CONSOLE, LOWER - BLACK (INC. 9-12)
  • 9
    9611-499 ...DECAL, WARNING (ENGLISH)
    ...DECAL, WARNING (ENGLISH)
  • 10
    9611-498 ...DECAL, WARNING (FRENCH)
    ...DECAL, WARNING (FRENCH)
  • 11
    6606-812 ...FOIL, PROTECTIVE - CONSOLE
    ...FOIL, PROTECTIVE - CONSOLE
  • 12
    6990-323 ...VELCRO - (3 FT)
    ...VELCRO - (3 FT)
  • 13
    2623-004 NUT, PUSH
    NUT, PUSH
  • 14
    2623-003 PIN, RETAINING
    PIN, RETAINING
