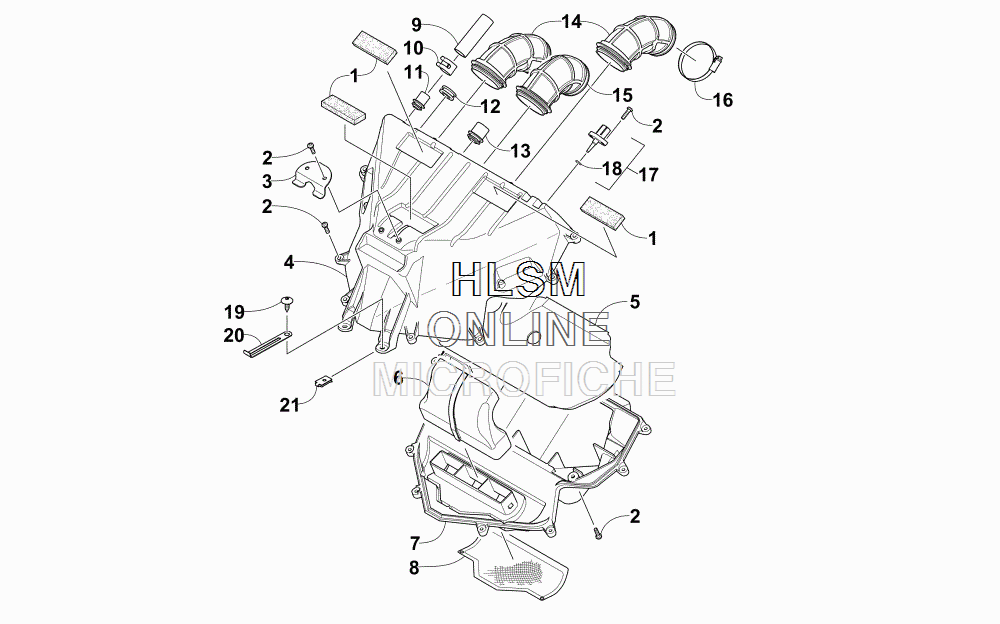

AIR INTAKE ASSEMBLY для Arctic Cat ZR 7000 SNO PRO (GREEN) [S2015ZRUSPUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5606-682 PAD
    PAD
  • 2
    1623-251 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    0613-142 BRACKET, HOLD-DOWN
    BRACKET, HOLD-DOWN
  • 4
    2670-321 SILENCER, AIR - UPPER
    SILENCER, AIR - UPPER
  • 5
    2670-322 PLATE, BAFFLE
    PLATE, BAFFLE
  • 6
    2670-365 VENT, INTAKE
    VENT, INTAKE
  • 7
    2670-320 SILENCER, AIR - LOWER
    SILENCER, AIR - LOWER
  • 8
    2670-396 SCREEN, INTAKE
    SCREEN, INTAKE
  • 9
    0410-143 HOSE, GASLINE - (25 FT)
    HOSE, GASLINE - (25 FT)
  • 10
    1623-966 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    2670-432 FITTING
    FITTING
  • 12
    2623-039 GROMMET
    GROMMET
  • 13
    2670-433 FITTING
    FITTING
  • 14
    2670-279 BOOT, INTAKE
    BOOT, INTAKE
  • 15
    2670-280 BOOT, INTAKE
    BOOT, INTAKE
  • 16
    0423-066 CLAMP - (50MMX9MM)
    CLAMP - (50MMX9MM)
  • 17
    0430-055 SENSOR, AIR TEMPERATURE (INC. 18)
    SENSOR, AIR TEMPERATURE (INC. 18)
  • 18
    5507-224 ...O-RING
    ...O-RING
  • 19
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 20
    1623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
    CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
  • 21
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
