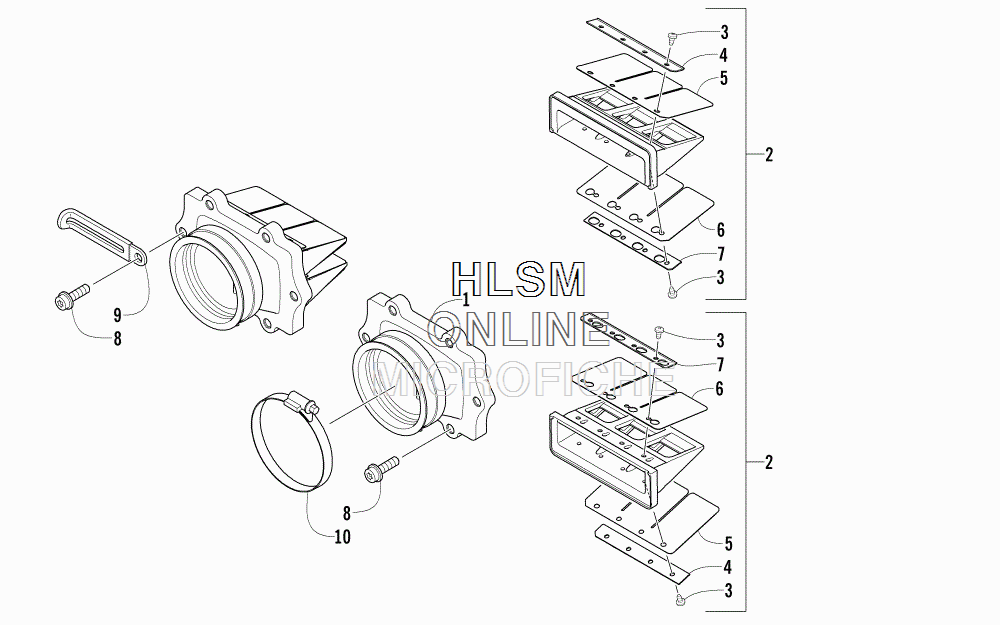

REED VALVE ASSEMBLY для Arctic Cat ZR 6000 TUCKER HIBBERT RR (BLACK) [S2015ZRD68USB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0907-003 MANIFOLD, INTAKE
    MANIFOLD, INTAKE
  • 2
    0907-001 VALVE, REED - ASSEMBLY (INC. 3-7)
    VALVE, REED - ASSEMBLY (INC. 3-7)
  • 3
    0923-045 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 4
    0907-007 ...PLATE, BACKING - OUTER
    ...PLATE, BACKING - OUTER
  • 5
    0907-005 ...VALVE, REED - OUTER
    ...VALVE, REED - OUTER
  • 6
    0907-006 ...VALVE, REED - INNER
    ...VALVE, REED - INNER
  • 7
    0907-008 ...PLATE, BACKING - INNER
    ...PLATE, BACKING - INNER
  • 8
    0923-025 SCREW, CAP
    SCREW, CAP
  • 9
    1623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
    CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
  • 10
    0423-019 CLAMP
    CLAMP
