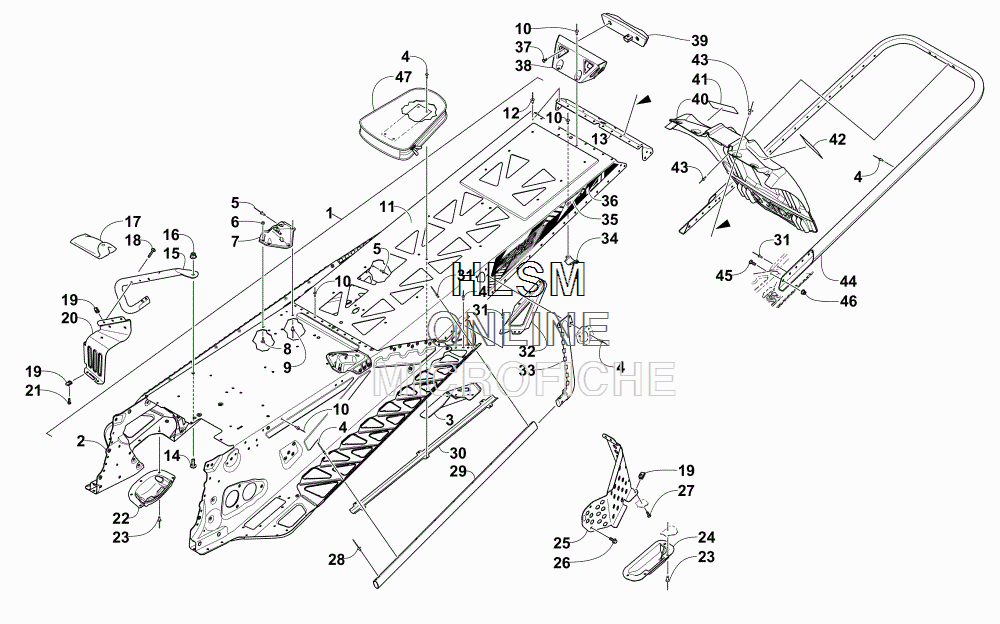

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat XF 8000 HIGH COUNTRY 141 SNO PRO (ORANGE) [S2015X8HHIUSO] - 2015 года выпуска`
-
№АртикулНазвание
-
-2707-104 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
12707-295 TUNNEL ASSEMBLY - BLACK (INC. 2-13)TUNNEL ASSEMBLY - BLACK (INC. 2-13)
-
22707-294 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)
-
32707-286 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
32707-287 ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
48060-706 ......RIVET, BLIND-DH SS64 BLK......RIVET, BLIND-DH SS64 BLK
-
51623-206 ...RIVET, 3/16 HUCK-M9...RIVET, 3/16 HUCK-M9
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
71707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET, 3/16 HUCK-M5...RIVET, 3/16 HUCK-M5
-
108060-702 ...RIVET, BLIND-DH SS62 BLK...RIVET, BLIND-DH SS62 BLK
-
111707-724 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
128060-504 ...RIVET, BLIND-DH SS53 BLK...RIVET, BLIND-DH SS53 BLK
-
131707-725 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
148476-820 SCREW, MACHINESCREW, MACHINE
-
151707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
151707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
168427-802 NUT, LOCKNUT, LOCK
-
170744-081 KIT, TOOLKIT, TOOL
-
188468-536 SCREW, MACHINESCREW, MACHINE
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
201707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
201707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
218470-516 SCREW, MACHINESCREW, MACHINE
-
221607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
238061-708 RIVET, BLIND-LF SS66 BLACKRIVET, BLIND-LF SS66 BLACK
-
240607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
252707-044 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
268408-613 SCREW, CAPSCREW, CAP
-
278470-520 SCREW, MACHINESCREW, MACHINE
-
281623-130 RIVET, 3/16 HUCK-M4RIVET, 3/16 HUCK-M4
-
291707-697 ROLL, TUNNEL - BLACKROLL, TUNNEL - BLACK
-
300630-307 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
311623-241 RIVET, 3/16 HUCK-M6RIVET, 3/16 HUCK-M6
-
322707-288 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
322707-289 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
331707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
331707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
340630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
350621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
361621-456 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
361621-457 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
378470-510 SCREW, MACHINESCREW, MACHINE
-
380730-227 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
390609-898 TAILLIGHT, REDTAILLIGHT, RED
-
406606-394 SNOWFLAPSNOWFLAP
-
415611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
425611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
438061-706 RIVET, BLIND-LF SS64 BLACKRIVET, BLIND-LF SS64 BLACK
-
442707-591 BUMPER, REAR - 153" - PAINTED WHITEBUMPER, REAR - 153" - PAINTED WHITE
-
458476-620 SCREW, MACHINESCREW, MACHINE
-
468427-602 NUT, LOCKNUT, LOCK
-
476606-615 BAG, BELTBAG, BELT
