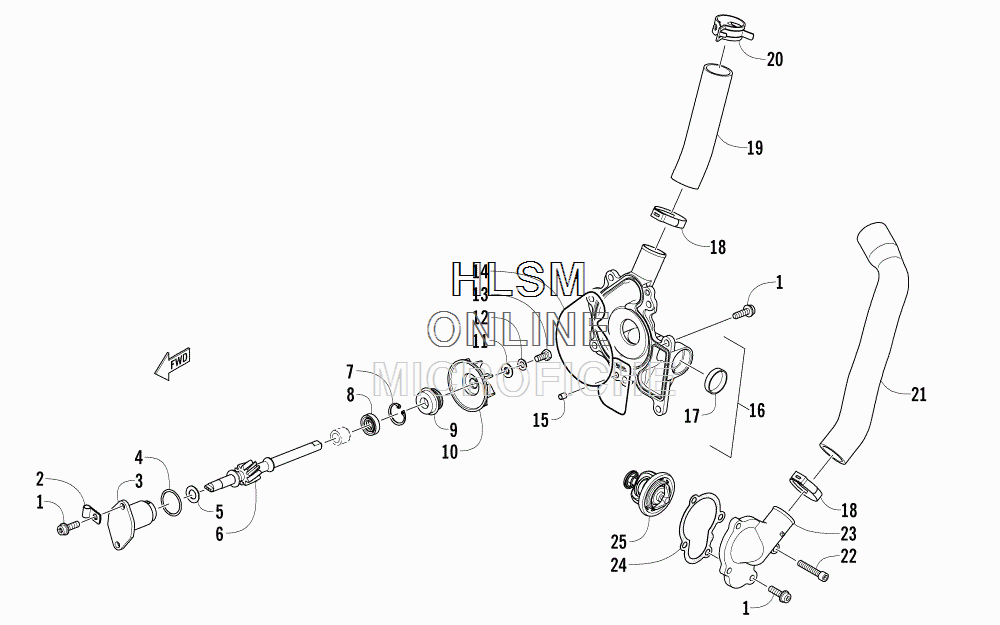

WATER PUMP AND THERMOSTAT для Arctic Cat XF 6000 CROSS-TOUR 141 (INTERNATIONAL) (ORANGE) [S2015X6DCTOSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0923-025 SCREW, CAP
    SCREW, CAP
  • 2
    1623-676 CLAMP, SPEEDOMETER SENSOR
    CLAMP, SPEEDOMETER SENSOR
  • 3
    0913-020 RETAINER, DRIVEN SHAFT
    RETAINER, DRIVEN SHAFT
  • 4
    0930-031 O-RING
    O-RING
  • 5
    0923-036 SHIM, 10 X 18 X 1 MM
    SHIM, 10 X 18 X 1 MM
  • 6
    0905-053 SHAFT, DRIVEN
    SHAFT, DRIVEN
  • 7
    0931-003 CIRCLIP
    CIRCLIP
  • 8
    0930-004 SEAL, OIL
    SEAL, OIL
  • 9
    0930-005 SEAL, MECHANICAL
    SEAL, MECHANICAL
  • 10
    0913-006 IMPELLER, WATER PUMP/ W INSERT
    IMPELLER, WATER PUMP/ W INSERT
  • 11
    0923-011 WASHER, SEAL
    WASHER, SEAL
  • 12
    0923-035 WASHER, M6 X 12-HARDENED
    WASHER, M6 X 12-HARDENED
  • 13
    0923-030 SCREW, CAP
    SCREW, CAP
  • 14
    0930-025 SEAL
    SEAL
  • 15
    0829-049 PIN, SOLID DOWEL - M5 X 8
    PIN, SOLID DOWEL - M5 X 8
  • 16
    1913-002 COVER, WATER PUMP (INC. 17)
    COVER, WATER PUMP (INC. 17)
  • 17
    0818-103 ...PLUG
    ...PLUG
  • 18
    1623-656 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    0610-870 HOSE
    HOSE
  • 20
    1623-322 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    0613-136 HOSE, COOLANT - HEAT EXCHANGER/ENGINE
    HOSE, COOLANT - HEAT EXCHANGER/ENGINE
  • 22
    0923-027 SCREW, CAP
    SCREW, CAP
  • 23
    0913-011 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 24
    0930-026 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 25
    0913-013 THERMOSTAT
    THERMOSTAT
