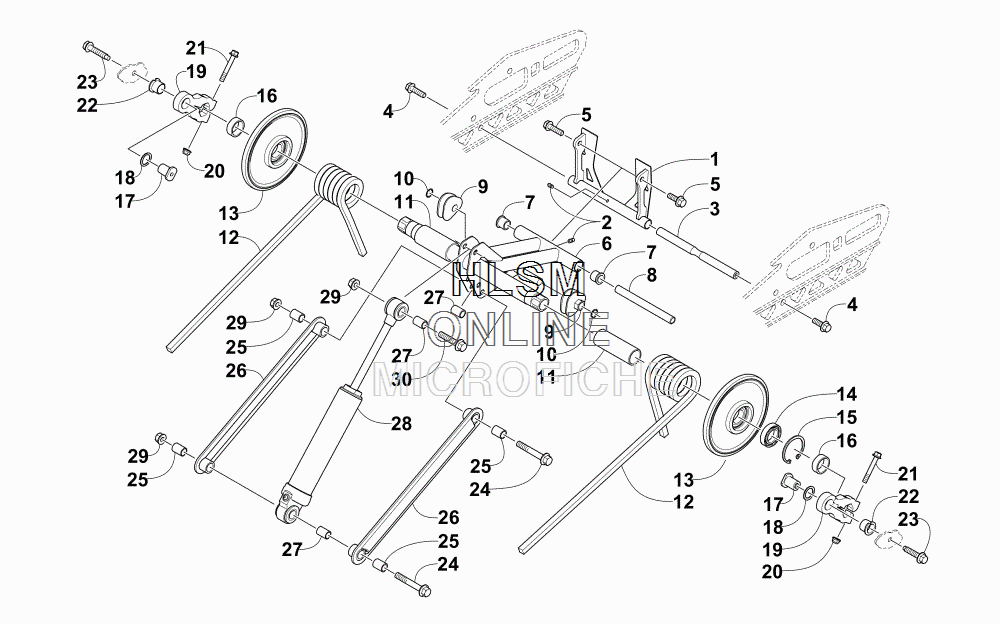

SUSPENSION REAR - REAR ARM ASSEMBLY для Arctic Cat PANTERA 7000 LTD (INTERNATIONAL) (BLACK) [S2015PTULXOSB] - 2015 года выпуска`
-
№АртикулНазвание
-
12704-389 ARM, REAR - (BLACK) (INC. ONE NO. 2)ARM, REAR - (BLACK) (INC. ONE NO. 2)
-
21623-010 ......FITTING,GREASE-1/4-28 UNF-SELF THREAD......FITTING,GREASE-1/4-28 UNF-SELF THREAD
-
33604-965 AXLEAXLE
-
48413-031 SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353
-
58413-041 SCREW,CAP-HFH M10X1.25X40 CL10.9 W/2353SCREW,CAP-HFH M10X1.25X40 CL10.9 W/2353
-
62704-729 ARM, IDLER - (BLACK) (INC. 7 AND ONE NO. 2)ARM, IDLER - (BLACK) (INC. 7 AND ONE NO. 2)
-
71604-100 ...BUSHING,FLARED-BRONZE (.628 ID)...BUSHING,FLARED-BRONZE (.628 ID)
-
83604-276 AXLEAXLE
-
91604-204 BLOCK, SPRING ADJUSTER - RIGHT - (BLACK)BLOCK, SPRING ADJUSTER - RIGHT - (BLACK)
-
91604-205 BLOCK, SPRING ADJUSTER - LEFT - (BLACK)BLOCK, SPRING ADJUSTER - LEFT - (BLACK)
-
100623-138 RING,RETAINING-ADJUSTER BLOCK 9/16RING,RETAINING-ADJUSTER BLOCK 9/16
-
113604-288 SLEEVE, SPRINGSLEEVE, SPRING
-
122704-560 SPRING, SUSPENSION - RIGHT - (BLACK)SPRING, SUSPENSION - RIGHT - (BLACK)
-
122704-561 SPRING, SUSPENSION - LEFT - (BLACK)SPRING, SUSPENSION - LEFT - (BLACK)
-
133604-264 WHEEL, IDLER (INC. 14-15)WHEEL, IDLER (INC. 14-15)
-
143604-257 ...BEARING,BALL-30MM...BEARING,BALL-30MM
-
153604-256 ...RING,RETAINING-INTERNAL...RING,RETAINING-INTERNAL
-
163604-674 SPACER, PIVOT - IDLER ARMSPACER, PIVOT - IDLER ARM
-
173604-979 AXLE, OFFSET ARM - M10AXLE, OFFSET ARM - M10
-
183604-930 WASHER,OFF SET ARM-.035"THKWASHER,OFF SET ARM-.035"THK
-
192704-477 PIVOT - IDLER ARM (INC. 20-22)PIVOT - IDLER ARM (INC. 20-22)
-
208427-802 ...NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y...NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
218408-860 ...SCREW,CAP-HFH M8X1.25X60 CL8.8 Z & Y...SCREW,CAP-HFH M8X1.25X60 CL8.8 Z & Y
-
223604-713 ...FLARED BUSHING,GARLOCK-12FDU12...FLARED BUSHING,GARLOCK-12FDU12
-
232623-002 SCREW,CAP-HFH-M10X1.25X30-MPT-W/2353SCREW,CAP-HFH-M10X1.25X30-MPT-W/2353
-
248408-090 SCREW,CAP-HFH M10X1.25X90 CL8.8 Z & YSCREW,CAP-HFH M10X1.25X90 CL8.8 Z & Y
-
253604-330 AXLE, LINKAXLE, LINK
-
260704-928 LINK, SHOCKLINK, SHOCK
-
273604-109 SLEEVE,SHOCK EYELET-10MM IDSLEEVE,SHOCK EYELET-10MM ID
-
282704-684 SHOCK ABSORBERSHOCK ABSORBER
-
298427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
308408-045 SCREW,CAP-HFH M10X1.25X45 CL8.8 Z & YSCREW,CAP-HFH M10X1.25X45 CL8.8 Z & Y
