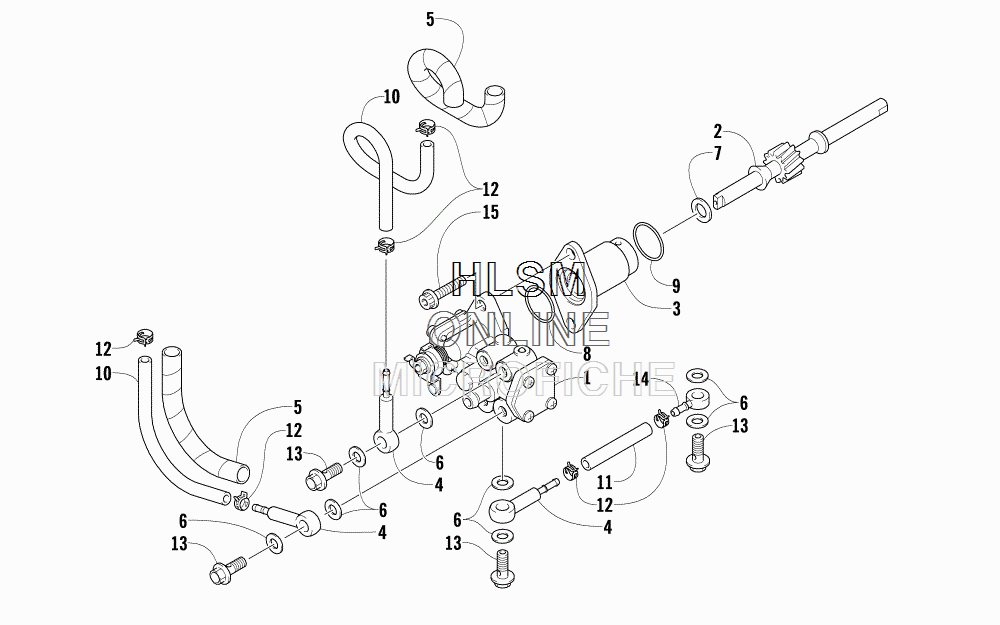

OIL PUMP для Arctic Cat M 8000 SNO PRO LTD ES 153 (ORANGE) [S2015M8HLEUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3007-894 PUMP,OIL-ASSEMBLY
    PUMP,OIL-ASSEMBLY
  • 2
    3007-895 GEAR,DRIVEN-OIL PUMP
    GEAR,DRIVEN-OIL PUMP
  • 3
    3007-916 RETAINER,OIL PUMP INPUT SHAFT
    RETAINER,OIL PUMP INPUT SHAFT
  • 4
    3003-217 CHECK VALVE
    CHECK VALVE
  • 5
    3005-032 PROTECTOR
    PROTECTOR
  • 6
    3402-009 WASHER, DRIVEN, M6.2X11X1.2
    WASHER, DRIVEN, M6.2X11X1.2
  • 7
    3423-300 SHIM WASHER,M10X18X1
    SHIM WASHER,M10X18X1
  • 8
    3008-030 O RING O:1.5 ID:19.5
    O RING O:1.5 ID:19.5
  • 9
    3005-126 O-RING
    O-RING
  • 10
    3008-035 HOSE, M3X7X600
    HOSE, M3X7X600
  • 11
    3005-357 HOSE, M2.5X7X600
    HOSE, M2.5X7X600
  • 12
    3008-037 CLAMP,HOSE,M6
    CLAMP,HOSE,M6
  • 13
    3004-346 BOLT, UNION
    BOLT, UNION
  • 14
    3003-661 UNION, GEAR LUBE
    UNION, GEAR LUBE
  • 15
    3007-445 BOLT
    BOLT
