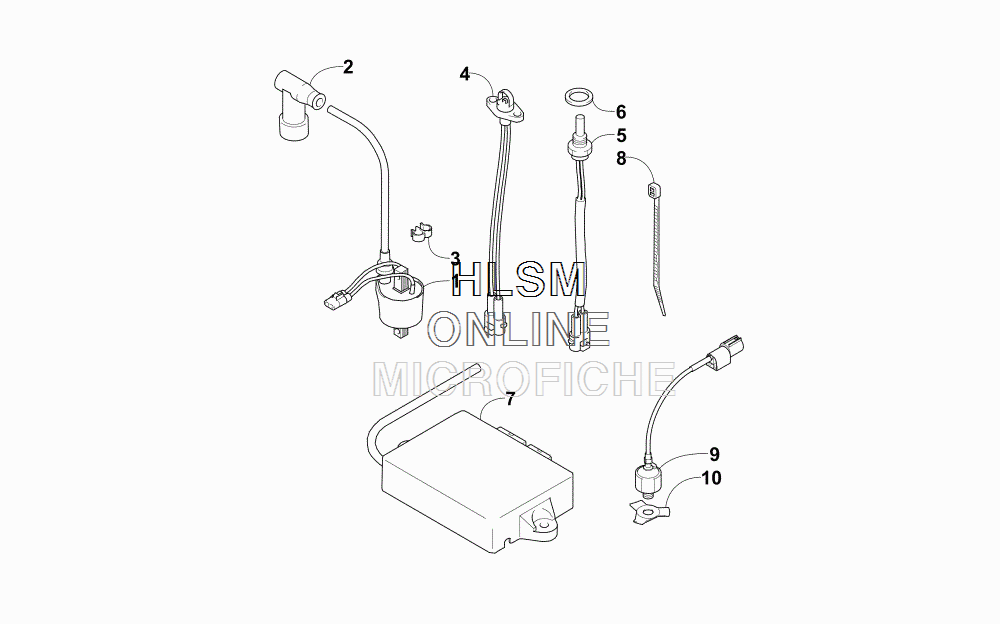

ELECTRICAL для Arctic Cat M 8000 SNO PRO LTD ES 153 (INTERNATIONAL) (GREEN) [S2015M8HLEOSG] - 2015 года выпуска
-
№АртикулНазвание
-
13007-548 COIL ASSEMBLY,IGNITIONCOIL ASSEMBLY,IGNITION
-
23006-367 CAP, SPARK PLUG - (NGK TB05EMD)CAP, SPARK PLUG - (NGK TB05EMD)
-
33005-387 CLIPCLIP
-
43006-728 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
53006-725 SENSOR ASSY,COOLING WATERSENSOR ASSY,COOLING WATER
-
63005-233 WASHER, COOLING WATER SENSORWASHER, COOLING WATER SENSOR
-
70730-241 ECM - CIRCLEECM - CIRCLE
-
70730-242 ECM - SQUAREECM - SQUARE
-
70730-243 ECM - TRIANGLEECM - TRIANGLE
-
83005-237 CABLE TIECABLE TIE
-
93006-886 SENSOR ASSEMBLY, KNOCKSENSOR ASSEMBLY, KNOCK
-
103007-549 PLATE, KNOCK SENSOR LOCKPLATE, KNOCK SENSOR LOCK
