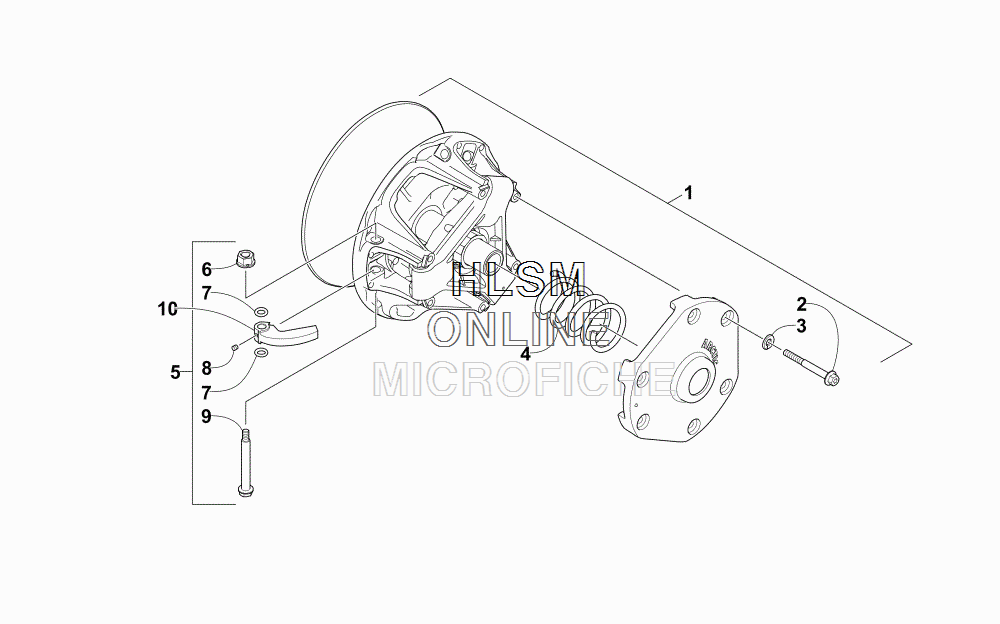

DRIVE CLUTCH для Arctic Cat M 8000 SNO PRO LTD 162 (ORANGE) [S2015M8HPEUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0746-435 CLUTCH,DRIVE-UNCAL-8.25 33MM/S (INC. 2-3)
    CLUTCH,DRIVE-UNCAL-8.25 33MM/S (INC. 2-3)
  • 2
    0646-431 ...SCREW, SHOULDER
    ...SCREW, SHOULDER
  • 3
    0646-430 ...WASHER, LOCK
    ...WASHER, LOCK
  • 4
    0646-229 SPRING,CLUTCH-YELLOW/WHITE
    SPRING,CLUTCH-YELLOW/WHITE
  • 5
    4639-674 KIT,CAM ARM REPAIR 05- 09 (WIDE) (INC. 6-9)
    KIT,CAM ARM REPAIR 05- 09 (WIDE) (INC. 6-9)
  • 6
    8048-366 ...NUT, LOCK
    ...NUT, LOCK
  • 7
    1602-692 ...O-RING, 5/16 X 1/2 X 3/32 - VITON
    ...O-RING, 5/16 X 1/2 X 3/32 - VITON
  • 8
    1623-183 ...SCREW, SET-CUP PT W/THD LOC-8-32X3/16
    ...SCREW, SET-CUP PT W/THD LOC-8-32X3/16
  • 9
    0646-747 ...PIN, CAM ARM
    ...PIN, CAM ARM
  • 10
    0746-703 ARM,CAM-WIDE-P1-68 GRAM W/SET SCREW (INC. 8)
    ARM,CAM-WIDE-P1-68 GRAM W/SET SCREW (INC. 8)
  • 10
    0746-672 ARM,CAM-WIDE-P1-75 GRAM W/SET SCREW (0-6,000 FT ALT.) (INC. 8)
    ARM,CAM-WIDE-P1-75 GRAM W/SET SCREW (0-6,000 FT ALT.) (INC. 8)
  • 10
    0746-694 ARM, CAM-WIDE-P1-63 GRAM W/SET SCREW (OVER 9,000 FT ALT.) (INC. 8)
    ARM, CAM-WIDE-P1-63 GRAM W/SET SCREW (OVER 9,000 FT ALT.) (INC. 8)
