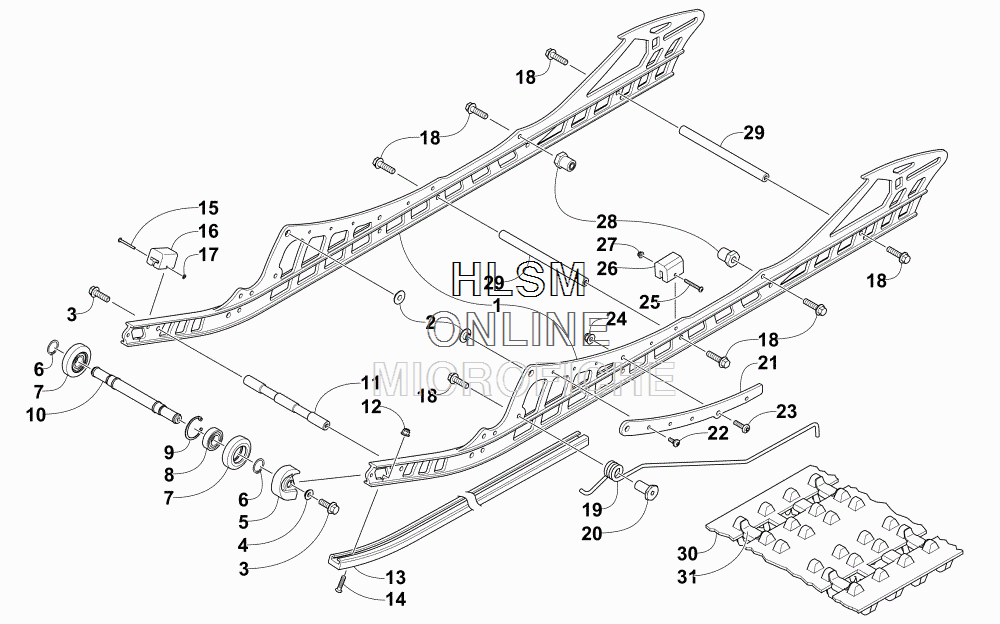

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD 153 (RUSSIAN) (GREEN) [S2015M8HPSRUG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2704-584 COMPLETE SKID FRAME ASSEMBLY
    COMPLETE SKID FRAME ASSEMBLY
  • 1
    2704-564 RAIL, FORMED - GREEN
    RAIL, FORMED - GREEN
  • 2
    3604-266 INSERT, RAIL
    INSERT, RAIL
  • 3
    8408-831 SCREW, CAP
    SCREW, CAP
  • 4
    3604-928 SPACER
    SPACER
  • 5
    2704-504 END CAP, SLIDE RAIL
    END CAP, SLIDE RAIL
  • 6
    1423-001 RING, RETAINING
    RING, RETAINING
  • 7
    3604-844 WHEEL, IDLER - BLACK (INC. 8-9)
    WHEEL, IDLER - BLACK (INC. 8-9)
  • 8
    3604-033 ...BEARING
    ...BEARING
  • 9
    0623-946 ...RING, RETAINING
    ...RING, RETAINING
  • 10
    3604-921 AXLE
    AXLE
  • 11
    3604-630 AXLE
    AXLE
  • 12
    8047-366 NUT, LOCK
    NUT, LOCK
  • 13
    3604-939 WEARSTRIP, SLIDE RAIL
    WEARSTRIP, SLIDE RAIL
  • 14
    0123-859 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    0123-767 RIVET, SOLID
    RIVET, SOLID
  • 16
    0104-631 PAD, SHOCK
    PAD, SHOCK
  • 17
    0123-766 NUT, PUSH
    NUT, PUSH
  • 18
    8408-826 SCREW, CAP
    SCREW, CAP
  • 19
    1704-734 SCRATCHER, ICE - RIGHT
    SCRATCHER, ICE - RIGHT
  • 19
    1704-735 SCRATCHER, ICE - LEFT
    SCRATCHER, ICE - LEFT
  • 20
    3604-678 BUSHING
    BUSHING
  • 21
    2704-290 BRACE, SLIDE RAIL - GREEN
    BRACE, SLIDE RAIL - GREEN
  • 22
    0423-538 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 23
    8468-625 SCREW, MACHINE
    SCREW, MACHINE
  • 24
    8427-602 NUT, LOCK
    NUT, LOCK
  • 25
    8470-540 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    1604-429 PAD, SHOCK
    PAD, SHOCK
  • 27
    8427-502 NUT, LOCK
    NUT, LOCK
  • 28
    3604-635 BUSHING, STOP - REAR ARM
    BUSHING, STOP - REAR ARM
  • 29
    3604-667 AXLE
    AXLE
  • 30
    2602-481 TRACK,P/C-15X153X2.60(3.0 PITCH) (80D) (INC. 31)
    TRACK,P/C-15X153X2.60(3.0 PITCH) (80D) (INC. 31)
  • 31
    2602-386 ...CLIP, GUIDE
    ...CLIP, GUIDE
