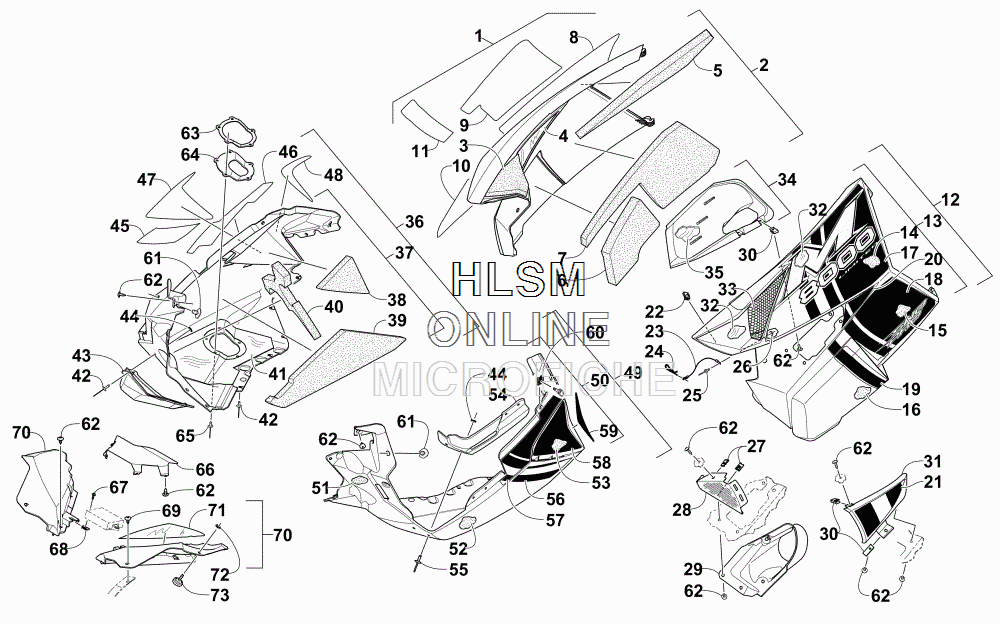

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD 153 (GREEN) (INC. EARLY BUILD) [S2015M8HPSUSG] - 2015 года выпуска

№

Артикул

Название
1

4718-204 PANEL, SIDE W/DECALS - RIGHT - (WHITE/GREEN) (INC. 2-11)

PANEL, SIDE W/DECALS - RIGHT - (WHITE/GREEN) (INC. 2-11)

55 320 ₽
2

3718-438 ...PANEL, SIDE W/FOAM DECALS - RIGHT - (WHITE) ((UP TO SERIAL #100326)) (INC. 3-7)

...PANEL, SIDE W/FOAM DECALS - RIGHT - (WHITE) ((UP TO SERIAL #100326)) (INC. 3-7)

24 540 ₽
2

3718-764 ...PANEL, SIDE W/FOAM DECALS - RIGHT - (WHITE) ((ABOVE SERIAL #100326)) (INC. 3-7)

...PANEL, SIDE W/FOAM DECALS - RIGHT - (WHITE) ((ABOVE SERIAL #100326)) (INC. 3-7)

46 380 ₽
3

0617-626 .........FOAM, SIDE PANEL - UPPER FRONT - RIGHT

.........FOAM, SIDE PANEL - UPPER FRONT - RIGHT

650 ₽
4

6606-414 .........FOIL, PROTECTIVE - MIDDLE SIDE PANEL-RIGHT

.........FOIL, PROTECTIVE - MIDDLE SIDE PANEL-RIGHT

290 ₽
5

0617-628 .........FOAM, SIDE PANEL - UPPER REAR - RIGHT

.........FOAM, SIDE PANEL - UPPER REAR - RIGHT

5 400 ₽
6

0617-632 .........FOAM, SIDE PANEL - LOWER FRONT - RIGHT

.........FOAM, SIDE PANEL - LOWER FRONT - RIGHT

3 320 ₽
7

0617-634 .........FOAM, SIDE PANEL - LOWER REAR - RIGHT

.........FOAM, SIDE PANEL - LOWER REAR - RIGHT

5 820 ₽
8

1621-666 ...DECAL, SIDE PANEL - UPPER - RIGHT - (GREEN)

...DECAL, SIDE PANEL - UPPER - RIGHT - (GREEN)

6 440 ₽
9

1621-672 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT - (GREEN)

...DECAL, SIDE PANEL - LOWER REAR - RIGHT - (GREEN)

4 570 ₽
10

1621-670 ...DECAL, SIDE PANEL - CENTER - RIGHT - (GREEN)

...DECAL, SIDE PANEL - CENTER - RIGHT - (GREEN)

1 020 ₽
11

1621-674 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - (GREEN)

...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - (GREEN)

1 020 ₽
12

4718-205 PANEL, SIDE W/DECALS - LEFT - (WHITE/GREEN) (INC. 13-21)

PANEL, SIDE W/DECALS - LEFT - (WHITE/GREEN) (INC. 13-21)

55 320 ₽
13

4718-111 ...PANEL, SIDE W/FOAM DECALS - LEFT - (WHITE) ((UP TO SERIAL #100326)) (INC. 14-16)

...PANEL, SIDE W/FOAM DECALS - LEFT - (WHITE) ((UP TO SERIAL #100326)) (INC. 14-16)

39 930 ₽
13

4718-555 ...PANEL, SIDE W/FOAM DECALS - LEFT - (WHITE) ((ABOVE SERIAL #100326)) (INC. 14-16)

...PANEL, SIDE W/FOAM DECALS - LEFT - (WHITE) ((ABOVE SERIAL #100326)) (INC. 14-16)

24 540 ₽
14

0617-629 .........FOAM, SIDE PANEL - UPPER REAR - LEFT

.........FOAM, SIDE PANEL - UPPER REAR - LEFT

2 490 ₽
15

0617-635 .........FOAM, SIDE PANEL - LOWER REAR - LEFT

.........FOAM, SIDE PANEL - LOWER REAR - LEFT

1 870 ₽
16

0617-681 .........FOAM, SIDE PANEL - LOWER FRONT - LEFT

.........FOAM, SIDE PANEL - LOWER FRONT - LEFT

860 ₽
17

1621-667 ...DECAL, SIDE PANEL - UPPER - LEFT - (GREEN)

...DECAL, SIDE PANEL - UPPER - LEFT - (GREEN)

6 440 ₽
18

1621-673 ...DECAL, SIDE PANEL - LOWER REAR - LEFT - (GREEN)

...DECAL, SIDE PANEL - LOWER REAR - LEFT - (GREEN)

4 570 ₽
19

1621-675 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT - (GREEN)

...DECAL, SIDE PANEL - LOWER FRONT - LEFT - (GREEN)

1 020 ₽
20

2621-291 ...DECAL, SIDE PANEL - CENTER REAR - LEFT - (GREEN)

...DECAL, SIDE PANEL - CENTER REAR - LEFT - (GREEN)

1 870 ₽
21

2621-289 ...DECAL, SIDE PANEL - CENTER VENT - LEFT - (GREEN)

...DECAL, SIDE PANEL - CENTER VENT - LEFT - (GREEN)

1 870 ₽
22

1623-637 CLIP, U-NUT

CLIP, U-NUT

380 ₽
23

0607-447 CABLE

CABLE

810 ₽
24

0605-283 CLIP, HAIRPIN

CLIP, HAIRPIN

190 ₽
25

8060-486 RIVET

RIVET

60 ₽
26

8050-127 WASHER

WASHER

210 ₽
27

0623-797 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

650 ₽
28

1623-052 CLIP, U-NUT

CLIP, U-NUT

150 ₽
29

6606-925 SCREEN, INTAKE

SCREEN, INTAKE

5 190 ₽
30

2602-794 DUCT, INTAKE - INNER

DUCT, INTAKE - INNER

4 150 ₽
31

1623-030 CLIP, U-NUT

CLIP, U-NUT

150 ₽
32

2602-803 DUCT, INTAKE - OUTER - (WHITE)

DUCT, INTAKE - OUTER - (WHITE)

2 910 ₽
33

0619-206 FOIL, PROTECTIVE - (6 IN. X 30 FT)

FOIL, PROTECTIVE - (6 IN. X 30 FT)

34 730 ₽
34

5706-531 SCREEN, INTAKE

SCREEN, INTAKE

3 110 ₽
35

1702-369 DUCT, AIR - CLUTCH (INC. 36)

DUCT, AIR - CLUTCH (INC. 36)

5 820 ₽
36

6606-694 ...FOIL, PROTECTIVE - 2 STROKE

...FOIL, PROTECTIVE - 2 STROKE

560 ₽
37

4718-206 PLATE, SKID W/DECALS - RIGHT - (WHITE/GREEN) (INC. 38-49)

PLATE, SKID W/DECALS - RIGHT - (WHITE/GREEN) (INC. 38-49)

55 950 ₽
38

4718-532 ...PLATE, SKID W/FOAM DECALS - RIGHT - (WHITE) ((ABOVE SERIAL #100326)) (INC. 38-49)

...PLATE, SKID W/FOAM DECALS - RIGHT - (WHITE) ((ABOVE SERIAL #100326)) (INC. 38-49)

32 440 ₽
38

3718-746 ...PLATE, SKID W/FOAM DECALS - RIGHT - (WHITE) ((ABOVE SERIAL #100326)) (INC. 39-45)

...PLATE, SKID W/FOAM DECALS - RIGHT - (WHITE) ((ABOVE SERIAL #100326)) (INC. 39-45)

55 950 ₽
39

0617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT

......FOAM, SKID PLATE - UPPER REAR - RIGHT

540 ₽
40

0617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT

......FOAM, SKID PLATE - CENTER FRONT - RIGHT

6 440 ₽
41

0617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT

......FOAM, SKID PLATE - UPPER FRONT - RIGHT

5 400 ₽
42

2612-850 ......FOIL, PROTECTIVE

......FOIL, PROTECTIVE

3 110 ₽
43

8061-708 ......RIVET

......RIVET

150 ₽
44

2612-754 ......DEFLECTOR, HEAT

......DEFLECTOR, HEAT

4 360 ₽
45

0123-802 ......WASHER

......WASHER

20 ₽
46

1621-678 ...DECAL, SKID PLATE - FRONT - RIGHT - (GREEN) ((UP TO SERIAL #100326)) (INC. 39-45)

...DECAL, SKID PLATE - FRONT - RIGHT - (GREEN) ((UP TO SERIAL #100326)) (INC. 39-45)

3 320 ₽
47

1621-676 ...DECAL, SKID PLATE - UPPER - RIGHT - (GREEN)

...DECAL, SKID PLATE - UPPER - RIGHT - (GREEN)

1 020 ₽
48

1621-680 ...DECAL, SKID PLATE - CENTER - RIGHT

...DECAL, SKID PLATE - CENTER - RIGHT

2 490 ₽
49

1621-682 ...DECAL, SKID PLATE - REAR - RIGHT

...DECAL, SKID PLATE - REAR - RIGHT

2 070 ₽
50

4718-207 PLATE, SKID W/DECALS - LEFT - (WHITE/GREEN) (INC. 51-60)

PLATE, SKID W/DECALS - LEFT - (WHITE/GREEN) (INC. 51-60)

43 470 ₽
51

3718-769 ...PLATE, SKID W/FOAM DECALS - LEFT - (WHITE) ((UP TO SERIAL #100326)) (INC. 52-56)

...PLATE, SKID W/FOAM DECALS - LEFT - (WHITE) ((UP TO SERIAL #100326)) (INC. 52-56)

39 930 ₽
51

4718-533 ...PLATE, SKID W/FOAM DECALS - LEFT -(WHITE) ((ABOVE SERIAL #100326)) (INC. 52-56)

...PLATE, SKID W/FOAM DECALS - LEFT -(WHITE) ((ABOVE SERIAL #100326)) (INC. 52-56)

18 920 ₽
52

0617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT

......FOAM, SKID PLATE - UPPER FRONT - LEFT

2 490 ₽
53

0617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT

......FOAM, SKID PLATE - CENTER FRONT - LEFT

2 490 ₽
54

0617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT

......FOAM, SKID PLATE - UPPER REAR - LEFT

610 ₽
55

6606-613 ......PANEL, REINFORCEMENT

......PANEL, REINFORCEMENT

1 870 ₽
56

8061-688 ......RIVET

......RIVET

150 ₽
57

1621-679 ...DECAL, SKID PLATE - FRONT - LEFT - (GREEN)

...DECAL, SKID PLATE - FRONT - LEFT - (GREEN)

3 320 ₽
58

1621-677 ...DECAL, SKID PLATE - UPPER - LEFT - (GREEN)

...DECAL, SKID PLATE - UPPER - LEFT - (GREEN)

1 020 ₽
59

1621-681 ...DECAL, SKID PLATE - CENTER - LEFT

...DECAL, SKID PLATE - CENTER - LEFT

810 ₽
60

1621-683 ...DECAL, SKID PLATE - REAR - LEFT

...DECAL, SKID PLATE - REAR - LEFT

2 070 ₽
61

2623-005 CLIP, RETAINING

CLIP, RETAINING

400 ₽
62

6606-592 PIN, RETAINING

PIN, RETAINING

540 ₽
63

1623-129 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

230 ₽
64

2612-796 PLATE, EXHAUST OUTLET

PLATE, EXHAUST OUTLET

2 070 ₽
65

2612-795 SEAL, EXHAUST OUTLET - 2 STROKE

SEAL, EXHAUST OUTLET - 2 STROKE

2 700 ₽
66

8061-710 RIVET, BLIND - LARGE FLANGE - SS68 - (BLACK)

RIVET, BLIND - LARGE FLANGE - SS68 - (BLACK)

170 ₽
67

6606-342 FASCIA, FRONT - RIGHT - (BLACK)

FASCIA, FRONT - RIGHT - (BLACK)

2 910 ₽
68

6606-295 SHIELD, HEAT - ECM

SHIELD, HEAT - ECM

3 740 ₽
69

8408-620 SCREW, CAP

SCREW, CAP

110 ₽
70

0423-031 CLIP, U-NUT

CLIP, U-NUT

150 ₽
71

0623-784 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

210 ₽
72

3718-303 FASCIA, FRONT - LEFT - (BLACK) (INC. 73)

FASCIA, FRONT - LEFT - (BLACK) (INC. 73)

2 910 ₽
73

6606-405 ...FOIL, PROTECTIVE - LEFT

...FOIL, PROTECTIVE - LEFT

4 150 ₽
74

2623-001 NUT, PUSH

NUT, PUSH

60 ₽
75

1623-999 SCREW, THUMB

SCREW, THUMB

750 ₽
