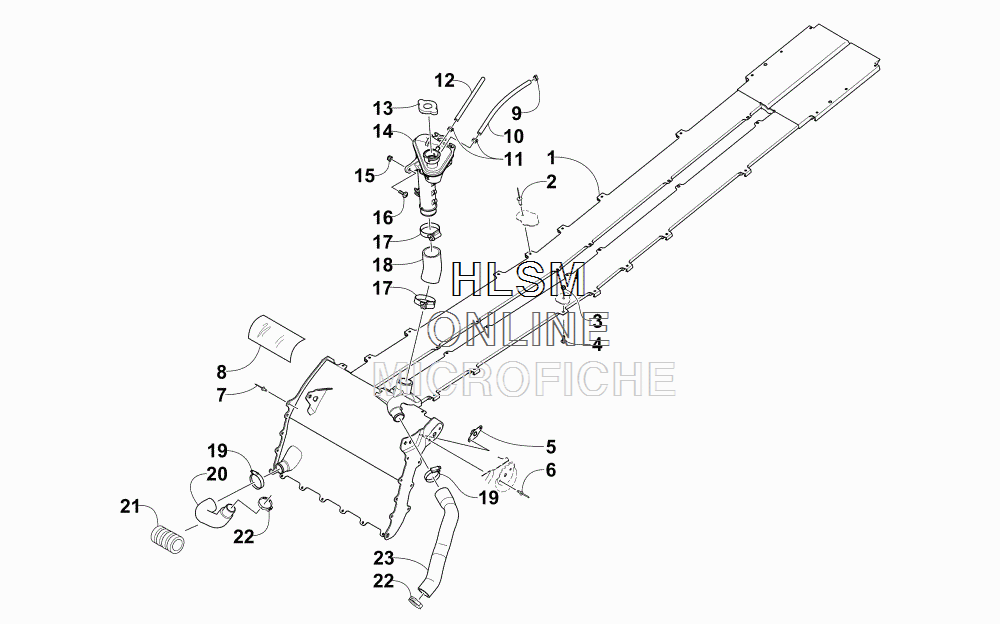

COOLING ASSEMBLY для Arctic Cat M 8000 SNO PRO 162 (INTERNATIONAL) (ORANGE) [S2015M8HSEOSO] - 2015 года выпуска`
-
№АртикулНазвание
-
10713-113 EXCHANGER, HEATEXCHANGER, HEAT
-
28060-702 RIVETRIVET
-
38422-502 NUT, LOCKNUT, LOCK
-
48476-516 SCREW, MACHINESCREW, MACHINE
-
50608-631 PLATE, RETAININGPLATE, RETAINING
-
68060-708 RIVETRIVET
-
78060-706 RIVETRIVET
-
80619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
91623-619 CLAMP, HOSECLAMP, HOSE
-
100610-538 HOSE, VENT - (25 FT)HOSE, VENT - (25 FT)
-
111623-655 CLAMP, HOSECLAMP, HOSE
-
120610-692 HOSE, OIL/WATER - (25 FT)HOSE, OIL/WATER - (25 FT)
-
120610-693 HOSE, OIL - (100 FT)HOSE, OIL - (100 FT)
-
132606-284 CAPCAP
-
140613-135 TANK, COOLANTTANK, COOLANT
-
158422-602 NUT, LOCKNUT, LOCK
-
168476-625 SCREW, MACHINESCREW, MACHINE
-
170423-317 CLAMP, HOSE - 32/50CLAMP, HOSE - 32/50
-
180610-936 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGERHOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
-
192623-088 CLAMP, HOSECLAMP, HOSE
-
200610-864 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
210619-619 CONDUIT, FLEXIBLE - (4 IN.)CONDUIT, FLEXIBLE - (4 IN.)
-
221623-656 CLAMP, HOSECLAMP, HOSE
-
230613-136 HOSE, COOLANT - HEAT EXCHANGER/ENGINEHOSE, COOLANT - HEAT EXCHANGER/ENGINE
