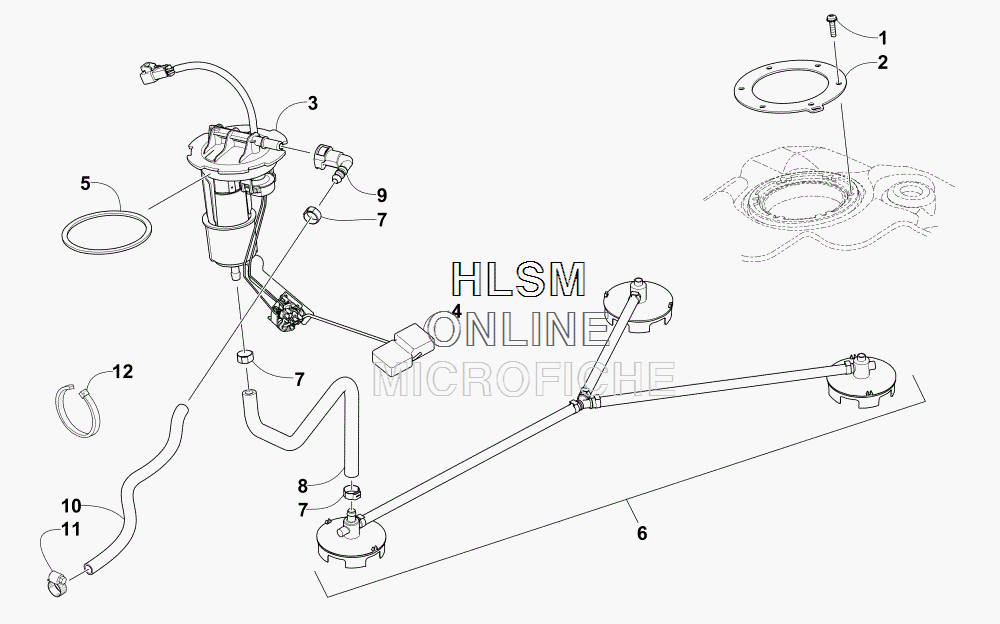

FUEL PUMP ASSEMBLY для Arctic Cat M 8000 SNO PRO 162 (GREEN) [S2015M8HSEUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-898 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 2
    2670-042 PLATE, RETAINING
    PLATE, RETAINING
  • 3
    2670-472 PUMP,FUEL-2 STROKE S/P (INC. 4)
    PUMP,FUEL-2 STROKE S/P (INC. 4)
  • 4
    2670-235 ...FLOAT
    ...FLOAT
  • 5
    0470-838 SEAL
    SEAL
  • 6
    2670-377 PICKUP, FUEL - 3MP
    PICKUP, FUEL - 3MP
  • 7
    0610-563 CLAMP, HOSE
    CLAMP, HOSE
  • 8
    2670-442 HOSE, FUEL PUMP/PICKUP
    HOSE, FUEL PUMP/PICKUP
  • 9
    1670-878 FITTING, QUICK-CONNECT
    FITTING, QUICK-CONNECT
  • 10
    0610-971 HOSE, FUEL - IN TANK - (10 FT)
    HOSE, FUEL - IN TANK - (10 FT)
  • 11
    0623-373 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    0123-788 TIE, CABLE - (8 IN.)
    TIE, CABLE - (8 IN.)
  • 12
    0123-903 TIE, CABLE - (11.5 IN.)
    TIE, CABLE - (11.5 IN.)
