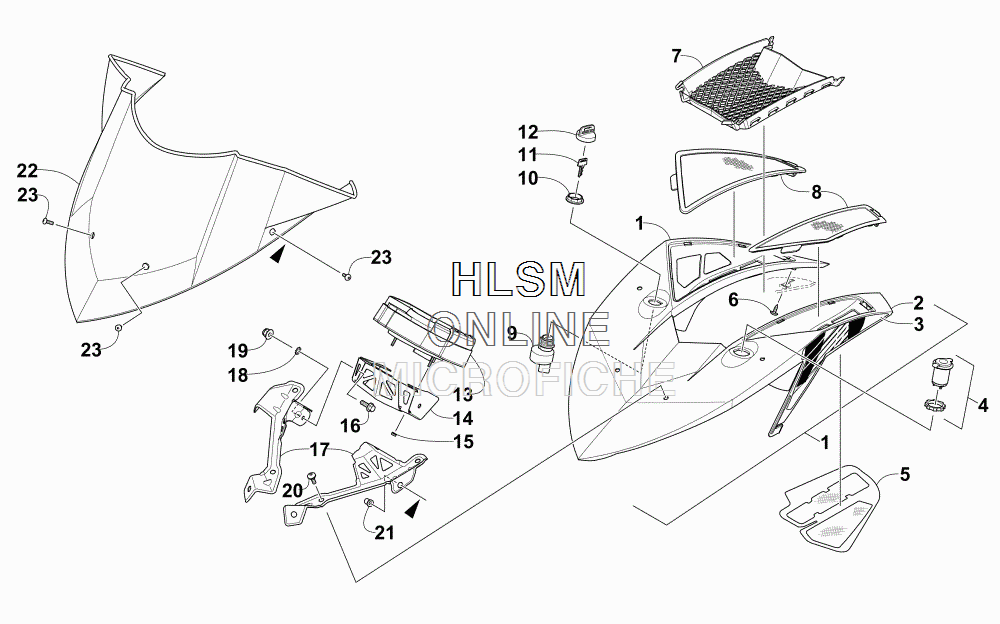

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat M 8000 SNO PRO 153 (INTERNATIONAL) (GREEN) [S2015M8HSPOSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-389 POD W/DECALS - GREEN (INC. 2-3)
    POD W/DECALS - GREEN (INC. 2-3)
  • 2
    5706-387 ...POD, INSTRUMENT - (TEAM ARTIC GREEN)
    ...POD, INSTRUMENT - (TEAM ARTIC GREEN)
  • 3
    1621-418 ...DECAL, POD - RIGHT - (GREEN)
    ...DECAL, POD - RIGHT - (GREEN)
  • 3
    1621-419 DECAL, POD - LEFT - (GREEN)
    DECAL, POD - LEFT - (GREEN)
  • 4
    0641-897 OUTLET, ACCESSORY - (12V DC)
    OUTLET, ACCESSORY - (12V DC)
  • 5
    0608-688 SCREEN, AIR INTAKE - RIGHT
    SCREEN, AIR INTAKE - RIGHT
  • 5
    0608-689 SCREEN, AIR INTAKE - LEFT
    SCREEN, AIR INTAKE - LEFT
  • 6
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    6606-576 VENT, INTAKE
    VENT, INTAKE
  • 8
    0608-736 SCREEN, INTAKE - INJECTION MOLD - RIGHT
    SCREEN, INTAKE - INJECTION MOLD - RIGHT
  • 8
    0608-737 SCREEN, INTAKE - INJECTION MOLD - LEFT
    SCREEN, INTAKE - INJECTION MOLD - LEFT
  • 9
    0609-910 SWITCH, IGNITION (INC. 10-12)
    SWITCH, IGNITION (INC. 10-12)
  • 10
    0430-050 ...NUT, FLANGE - IGNITION SWITCH
    ...NUT, FLANGE - IGNITION SWITCH
  • 11
    0430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
    ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
  • 11
    0430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
    ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
  • 12
    0430-054 ...COVER, KEY
    ...COVER, KEY
  • 13
    0620-391 SPEEDO/TACH-PREMIUM-CALIB (XF/M)
    SPEEDO/TACH-PREMIUM-CALIB (XF/M)
  • 14
    5706-252 BRACKET, SPEEDOMETER GAUGE - CENTER - (BLACK)
    BRACKET, SPEEDOMETER GAUGE - CENTER - (BLACK)
  • 15
    0423-493 NUT W/WASHER
    NUT W/WASHER
  • 16
    8410-616 SCREW, CAP
    SCREW, CAP
  • 17
    5706-250 BRACKET, SPEEDOMETER GAUGE - RIGHT - (BLACK)
    BRACKET, SPEEDOMETER GAUGE - RIGHT - (BLACK)
  • 17
    5706-251 BRACKET, SPEEDOMETER GAUGE - LEFT - (BLACK)
    BRACKET, SPEEDOMETER GAUGE - LEFT - (BLACK)
  • 18
    8053-212 WASHER, LOCK
    WASHER, LOCK
  • 19
    8427-602 NUT, LOCK
    NUT, LOCK
  • 20
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 21
    1623-764 NUT, EXPANSION
    NUT, EXPANSION
  • 22
    6606-647 WINDSHIELD - LOW - (TEAM ARCTIC GREEN)
    WINDSHIELD - LOW - (TEAM ARCTIC GREEN)
  • 23
    8477-516 SCREW, MACHINE
    SCREW, MACHINE
