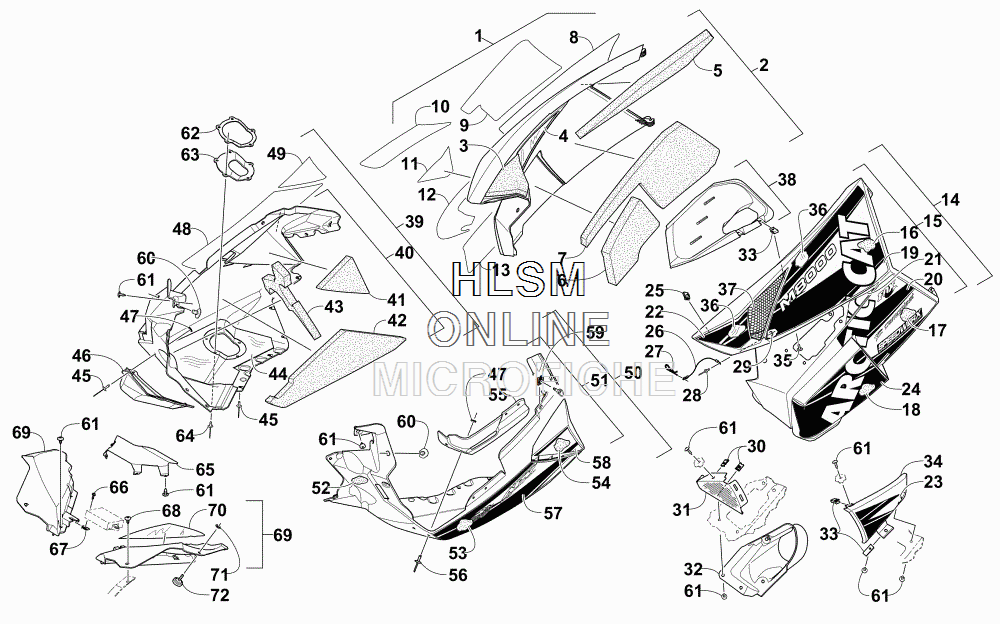

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 8000 MCCLURE LTD 153 (ORANGE) [S2015M8HDMUSO] - 2015 года выпуска
-
№АртикулНазвание
-
14718-540 PANEL, SIDE W/DECALS - RIGHT - (BLACK) (INC. 2-13)PANEL, SIDE W/DECALS - RIGHT - (BLACK) (INC. 2-13)
-
23718-180 ...PANEL, SIDE W/O DECALS - RIGHT - (BLACK) (INC. 3-7)...PANEL, SIDE W/O DECALS - RIGHT - (BLACK) (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
70617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
82621-222 ...DECAL, SIDE PANEL - UPPER REAR - RIGHT...DECAL, SIDE PANEL - UPPER REAR - RIGHT
-
92621-230 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT...DECAL, SIDE PANEL - LOWER REAR - RIGHT
-
102621-226 ...DECAL, SIDE PANEL - CENTER - RIGHT...DECAL, SIDE PANEL - CENTER - RIGHT
-
112621-224 ...DECAL, SIDE PANEL - UPPER FRONT - RIGHT...DECAL, SIDE PANEL - UPPER FRONT - RIGHT
-
122621-228 ...DECAL, SIDE PANEL - CENTER FRONT - RIGHT...DECAL, SIDE PANEL - CENTER FRONT - RIGHT
-
132621-232 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
-
144718-541 PANEL, SIDE W/DECALS - LEFT - (BLACK) (INC. 15-24)PANEL, SIDE W/DECALS - LEFT - (BLACK) (INC. 15-24)
-
154718-553 ...PANEL, SIDE W/O DECALS - LEFT - (BLACK) (INC. 16-18)...PANEL, SIDE W/O DECALS - LEFT - (BLACK) (INC. 16-18)
-
160617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
170617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
180617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
192621-223 ...DECAL, SIDE PANEL - UPPER REAR - LEFT...DECAL, SIDE PANEL - UPPER REAR - LEFT
-
202621-231 ...DECAL, SIDE PANEL - LOWER REAR - LEFT...DECAL, SIDE PANEL - LOWER REAR - LEFT
-
212621-227 ...DECAL, SIDE PANEL - CENTER - LEFT...DECAL, SIDE PANEL - CENTER - LEFT
-
222621-225 ...DECAL, SIDE PANEL - UPPER FRONT - LEFT...DECAL, SIDE PANEL - UPPER FRONT - LEFT
-
232621-315 ...DECAL, SIDE PANEL - CENTER VENT - LEFT...DECAL, SIDE PANEL - CENTER VENT - LEFT
-
242621-233 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT...DECAL, SIDE PANEL - LOWER FRONT - LEFT
-
251623-637 CLIP, U-NUTCLIP, U-NUT
-
260607-447 CABLECABLE
-
270605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
288060-486 RIVET, BLIND-DH SS54 ZINCRIVET, BLIND-DH SS54 ZINC
-
298050-127 WASHERWASHER
-
301623-052 CLIP, U-NUTCLIP, U-NUT
-
316606-925 SCREEN, INTAKESCREEN, INTAKE
-
322602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
331623-030 NUT,SPEED-#10B U TYPENUT,SPEED-#10B U TYPE
-
342602-793 DUCT, INTAKE - OUTER - (BLACK)DUCT, INTAKE - OUTER - (BLACK)
-
350619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
365706-531 SCREEN, INTAKESCREEN, INTAKE
-
371702-369 DUCT, AIR - CLUTCH (INC. 38)DUCT, AIR - CLUTCH (INC. 38)
-
386606-694 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
394718-544 PLATE, SKID W/DECALS - RIGHT - (ORANGE) (INC. 40-49)PLATE, SKID W/DECALS - RIGHT - (ORANGE) (INC. 40-49)
-
404718-542 ...PLATE, SKID W/O DECALS - RIGHT - (ORANGE) (INC. 41-47)...PLATE, SKID W/O DECALS - RIGHT - (ORANGE) (INC. 41-47)
-
410617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT......FOAM, SKID PLATE - UPPER REAR - RIGHT
-
420617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT......FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
430617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT......FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
442612-850 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
458061-708 ......RIVET, BLIND-LF SS66 (BLACK)......RIVET, BLIND-LF SS66 (BLACK)
-
462612-754 ......DEFLECTOR, HEAT......DEFLECTOR, HEAT
-
470123-802 ......WASHER,FLAT .194X.50X.048......WASHER,FLAT .194X.50X.048
-
482621-236 ...DECAL, SKID PLATE - FORWARD - RIGHT...DECAL, SKID PLATE - FORWARD - RIGHT
-
492621-234 ...DECAL, SKID PLATE - REAR - RIGHT...DECAL, SKID PLATE - REAR - RIGHT
-
504718-545 PLATE, SKID W/DECALS - LEFT - (ORANGE) (INC. 51-58)PLATE, SKID W/DECALS - LEFT - (ORANGE) (INC. 51-58)
-
514718-543 ...PLATE, SKID W/O DECALS - LEFT - (ORANGE) (INC. 52-56)...PLATE, SKID W/O DECALS - LEFT - (ORANGE) (INC. 52-56)
-
520617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT......FOAM, SKID PLATE - UPPER FRONT - LEFT
-
530617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT......FOAM, SKID PLATE - CENTER FRONT - LEFT
-
540617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT......FOAM, SKID PLATE - UPPER REAR - LEFT
-
556606-613 ......PANEL, REINFORCEMENT......PANEL, REINFORCEMENT
-
568061-688 ......RIVET,BLIND-LF SS66 ZINC......RIVET,BLIND-LF SS66 ZINC
-
572621-237 ...DECAL, SKID PLATE - FORWARD - LEFT...DECAL, SKID PLATE - FORWARD - LEFT
-
582621-235 ...DECAL, SKID PLATE - REAR - LEFT...DECAL, SKID PLATE - REAR - LEFT
-
592623-005 CLIP,RECEPTACLE-1/4 TURN STUDCLIP,RECEPTACLE-1/4 TURN STUD
-
606606-592 PIN,RETAINER-BODY PLASTICPIN,RETAINER-BODY PLASTIC
-
611623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
-
622612-796 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
632612-795 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
648061-710 RIVET, BLIND - LARGE FLANGE - SS68 - (BLACK)RIVET, BLIND - LARGE FLANGE - SS68 - (BLACK)
-
656606-295 SHIELD, HEAT - ECMSHIELD, HEAT - ECM
-
668408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
-
670423-031 NUT,SPEED M6 X 1.0 U-TYPENUT,SPEED M6 X 1.0 U-TYPE
-
680623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
-
696606-342 FASCIA, FRONT - RIGHT - (BLACK)FASCIA, FRONT - RIGHT - (BLACK)
-
693718-303 FASCIA, FRONT - LEFT - (BLACK) (INC. 70)FASCIA, FRONT - LEFT - (BLACK) (INC. 70)
-
706606-405 ...FOIL,PROTECTIVE-FILLER PANEL-LH...FOIL,PROTECTIVE-FILLER PANEL-LH
-
712623-001 RETAINER,PUSHNUT-3/16" STUDRETAINER,PUSHNUT-3/16" STUD
-
721623-999 SCREW, THUMBSCREW, THUMB
