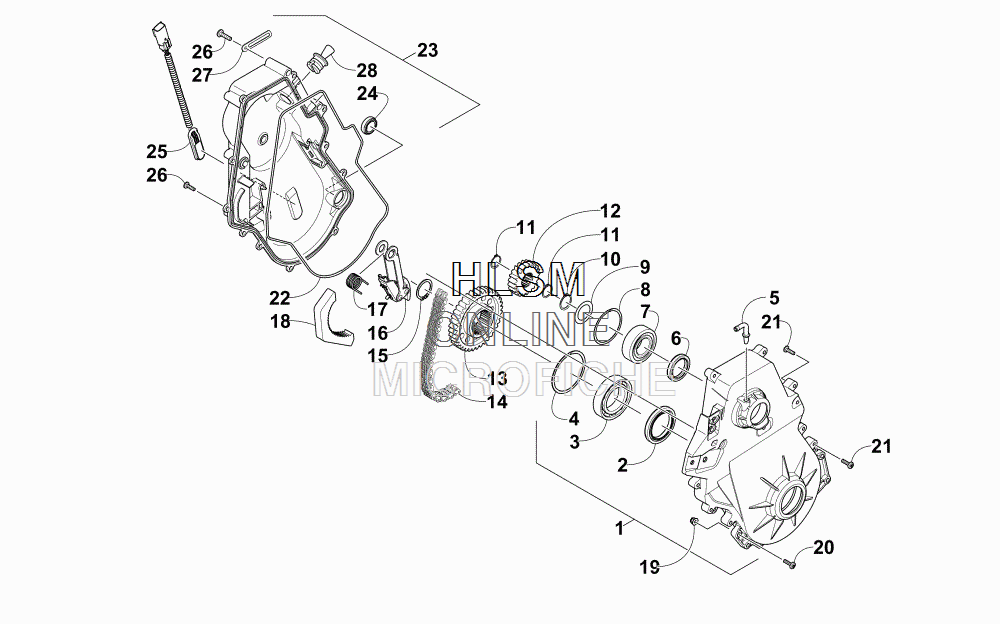

CHAIN CASE ASSEMBLY для Arctic Cat M 8000 153 (INTERNATIONAL) (GREEN) [S2015M8HE3OSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1702-363 CHAIN CASE ASSEMBLY (INC. 2-8)
    CHAIN CASE ASSEMBLY (INC. 2-8)
  • 2
    2602-172 ...SEAL,OIL-HIGH COMP-50 X 65 X 8MM
    ...SEAL,OIL-HIGH COMP-50 X 65 X 8MM
  • 3
    2602-281 ...BEARING,45 X 75 X 16 - 6009
    ...BEARING,45 X 75 X 16 - 6009
  • 4
    2602-280 ...RING,SNAP(EH-75)
    ...RING,SNAP(EH-75)
  • 5
    2602-641 ...FITTING, ELBOW
    ...FITTING, ELBOW
  • 6
    2602-204 ...SEAL,35 X 47 X 7 - V
    ...SEAL,35 X 47 X 7 - V
  • 7
    2602-734 ...BEARING,30 X 62 X 20
    ...BEARING,30 X 62 X 20
  • 8
    2602-236 ...SNAP RING(EH-62)
    ...SNAP RING(EH-62)
  • 9
    0648-443 WASHER, SHIM (.060 IN.)
    WASHER, SHIM (.060 IN.)
  • 10
    1423-175 RING,RETAINING-EXTERNAL (30MM SHAFT)
    RING,RETAINING-EXTERNAL (30MM SHAFT)
  • 11
    1623-690 SNAP RING,EXTL-.925 ID
    SNAP RING,EXTL-.925 ID
  • 12
    2602-666 SPROCKET - 19T (15 WIDE)
    SPROCKET - 19T (15 WIDE)
  • 13
    2602-584 SPROCKET - 50T (13 WIDE)
    SPROCKET - 50T (13 WIDE)
  • 14
    2602-373 CHAIN - 90P (15 WIDE)
    CHAIN - 90P (15 WIDE)
  • 15
    2602-629 SNAP RING-(MSH-43)
    SNAP RING-(MSH-43)
  • 16
    1702-319 TENSIONER, ARM ASSY
    TENSIONER, ARM ASSY
  • 17
    2602-336 SPRING,TORSION
    SPRING,TORSION
  • 18
    2602-230 PLATE, RATCHET
    PLATE, RATCHET
  • 19
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 20
    8476-630 SCREW,MACH-TSTRH M6X1.0X30 Z & Y
    SCREW,MACH-TSTRH M6X1.0X30 Z & Y
  • 21
    8468-622 SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/204
    SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/204
  • 22
    2602-817 SEAL, CHAIN CASE COVER
    SEAL, CHAIN CASE COVER
  • 23
    1702-178 COVER, CHAIN CASE (INC. 24-25)
    COVER, CHAIN CASE (INC. 24-25)
  • 24
    2602-232 ...GLASS, SIGHT
    ...GLASS, SIGHT
  • 25
    0730-172 ...KIT, SPEEDOMETER SENSOR
    ...KIT, SPEEDOMETER SENSOR
  • 26
    8468-626 SCREW,MACH-TSPNH M6X1.0X25 CL8.8 W/2353
    SCREW,MACH-TSPNH M6X1.0X25 CL8.8 W/2353
  • 27
    1623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
    CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
  • 28
    2602-440 PLUG,DROPCASE-2 STROKE
    PLUG,DROPCASE-2 STROKE
