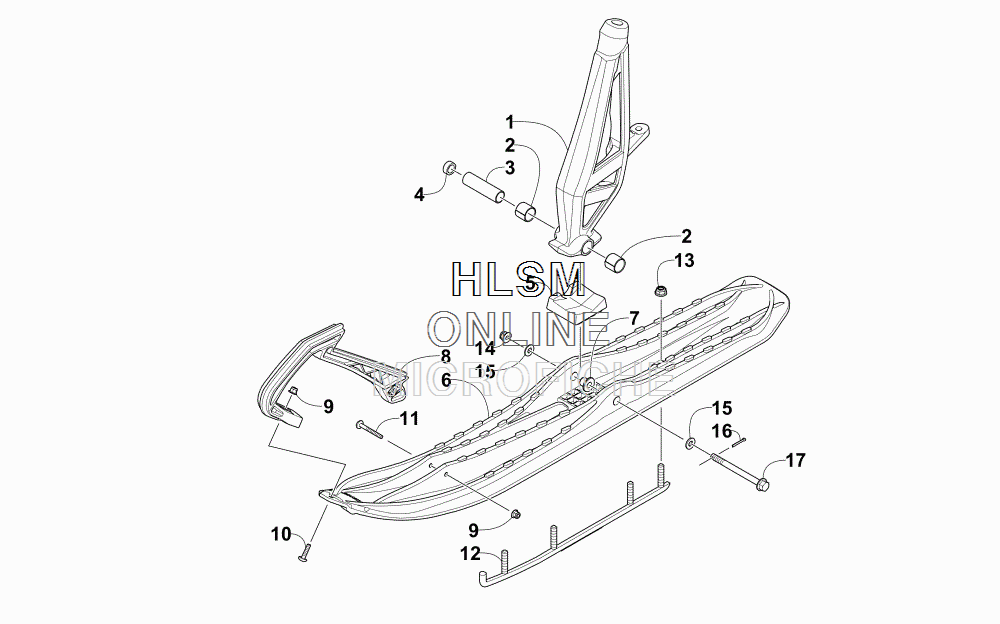

SKI AND SPINDLE ASSEMBLY для Arctic Cat M 7000 SNO PRO (INTERNATIONAL) (GREEN) [S2015M7USPOSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3703-100 SPINDLE, STEERING - RIGHT - (TEAM ARCTIC GREEN) (INC. 2)
    SPINDLE, STEERING - RIGHT - (TEAM ARCTIC GREEN) (INC. 2)
  • 1
    3703-101 SPINDLE, STEERING - LEFT - (TEAM ARCTIC GREEN) (INC. 2)
    SPINDLE, STEERING - LEFT - (TEAM ARCTIC GREEN) (INC. 2)
  • 2
    0603-158 ...BEARING,GARLOCK 12DU12
    ...BEARING,GARLOCK 12DU12
  • 3
    2603-813 AXLE, SPINDLE
    AXLE, SPINDLE
  • 4
    2603-208 SPACER,SKI-ADJ STANCE-PLASTIC
    SPACER,SKI-ADJ STANCE-PLASTIC
  • 5
    3603-237 DAMPER, SKI-RUBBER
    DAMPER, SKI-RUBBER
  • 6
    3603-236 SKI, PLASTIC - (BLACK)
    SKI, PLASTIC - (BLACK)
  • 7
    2603-746 INSERT, SKI - 10 MM
    INSERT, SKI - 10 MM
  • 8
    3603-228 HANDLE, PLASTIC - (TEAM ARCTIC GREEN)
    HANDLE, PLASTIC - (TEAM ARCTIC GREEN)
  • 9
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 10
    8476-625 SCREW,MACH-TSTRH M6X1.0X25 Z & Y
    SCREW,MACH-TSTRH M6X1.0X25 Z & Y
  • 11
    8476-650 SCREW,MACH-TSTRH M6X1.0X50 Z & Y
    SCREW,MACH-TSTRH M6X1.0X50 Z & Y
  • 12
    0703-871 WEARBAR SKAG, 4" CARBIDE-PTD (BLACK)
    WEARBAR SKAG, 4" CARBIDE-PTD (BLACK)
  • 13
    8047-486 NUT,HEX FLG-NY LOCK 3/8-16 GR F Z & Y
    NUT,HEX FLG-NY LOCK 3/8-16 GR F Z & Y
  • 14
    0423-744 NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH
    NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH
  • 15
    1623-801 WASHER,FLAT-M10-10.98 X 28.00 X 1.6 Z & Y
    WASHER,FLAT-M10-10.98 X 28.00 X 1.6 Z & Y
  • 16
    0123-458 PIN, COTTER
    PIN, COTTER
  • 17
    1623-781 BOLT,SKI-HFH M10- 1.25 X 137 CL10.9
    BOLT,SKI-HFH M10- 1.25 X 137 CL10.9
