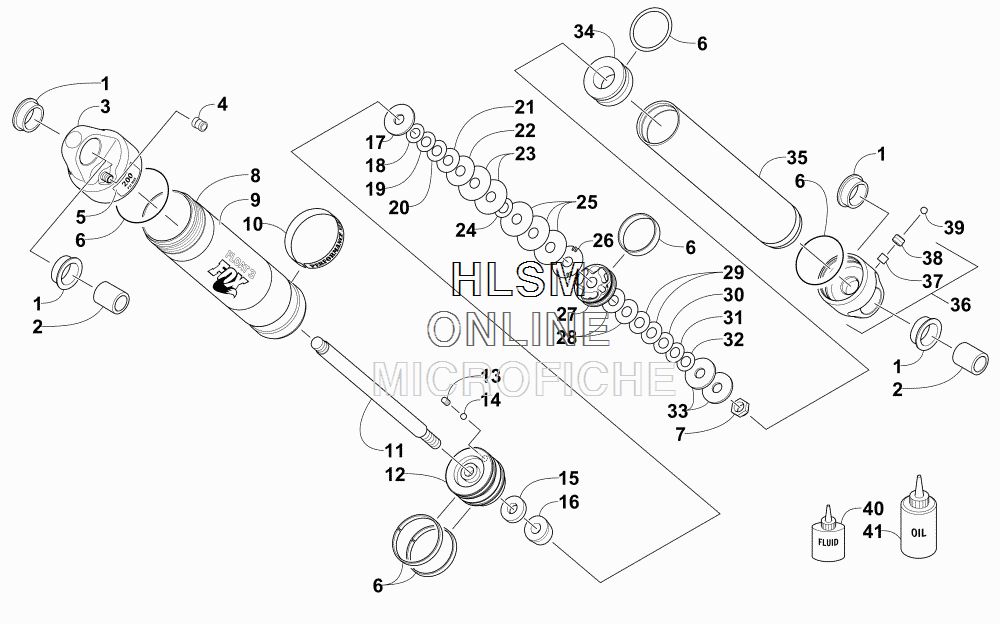

SUSPENSION REAR - REAR ARM SHOCK ABSORBER для Arctic Cat M 6000 SNO PRO (INTERNATIONAL) (GREEN) [S2015M6DSPOSG] - 2015 года выпуска`
-
№АртикулНазвание
-
-2704-567 SHOCK ABSORBERSHOCK ABSORBER
-
11604-222 BUSHINGBUSHING
-
22604-223 SLEEVESLEEVE
-
34604-006 END CAP, SHOCKEND CAP, SHOCK
-
42603-327 CAP, AIR VALVECAP, AIR VALVE
-
53603-359 DECAL, PSIDECAL, PSI
-
63603-293 KIT, SEAL/CAP REBUILD (INC. 7)KIT, SEAL/CAP REBUILD (INC. 7)
-
73603-018 ...NUT, LOCK...NUT, LOCK
-
84604-009 BODY SHOCK, UPPERBODY SHOCK, UPPER
-
93603-369 DECAL, "FOX"DECAL, "FOX"
-
103603-365 DECAL, "PERFORMANCE SERIES"DECAL, "PERFORMANCE SERIES"
-
113603-364 ROD, SHOCKROD, SHOCK
-
123603-291 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
131603-940 SCREW, SETSCREW, SET
-
141604-315 BALL, BLEEDBALL, BLEED
-
150603-386 BUMPER, INTERNAL - TOP OUTBUMPER, INTERNAL - TOP OUT
-
164604-008 SPACERSPACER
-
170603-540 WASHER, TOP OUT-1.125OD X .378 ID X.093WASHER, TOP OUT-1.125OD X .378 ID X.093
-
180603-331 VALVE, 0.700 X 0.008 IN.VALVE, 0.700 X 0.008 IN.
-
190603-334 VALVE, .800X.008 (3/8ID)VALVE, .800X.008 (3/8ID)
-
200603-337 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
210603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
220603-346 VALVE, 1.250 X 0.008 (3/8 ID)VALVE, 1.250 X 0.008 (3/8 ID)
-
230603-349 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
240603-878 VALVE, 0.700 X 0.012 IN.VALVE, 0.700 X 0.012 IN.
-
250603-348 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
263603-344 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
273603-397 PISTON, 3-PORTPISTON, 3-PORT
-
280603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
290603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
300603-880 VALVE, 0.900 X 0.012 IN.VALVE, 0.900 X 0.012 IN.
-
310603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
320603-332 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
332604-966 WASHER, TOP OUTWASHER, TOP OUT
-
343603-023 PISTON, FLOATING W/O-RINGPISTON, FLOATING W/O-RING
-
353604-999 BODY, SHOCK - LOWERBODY, SHOCK - LOWER
-
363603-332 END CAP, SHOCK (INC. 37-38)END CAP, SHOCK (INC. 37-38)
-
371604-428 ...PLUG, RUBBER - VALVE...PLUG, RUBBER - VALVE
-
382603-338 ...SCREW, SET...SCREW, SET
-
392603-337 BALL, AIR VALVEBALL, AIR VALVE
-
404639-012 FLUID, FLOAT SHOCK - 8 OZFLUID, FLOAT SHOCK - 8 OZ
-
415639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
