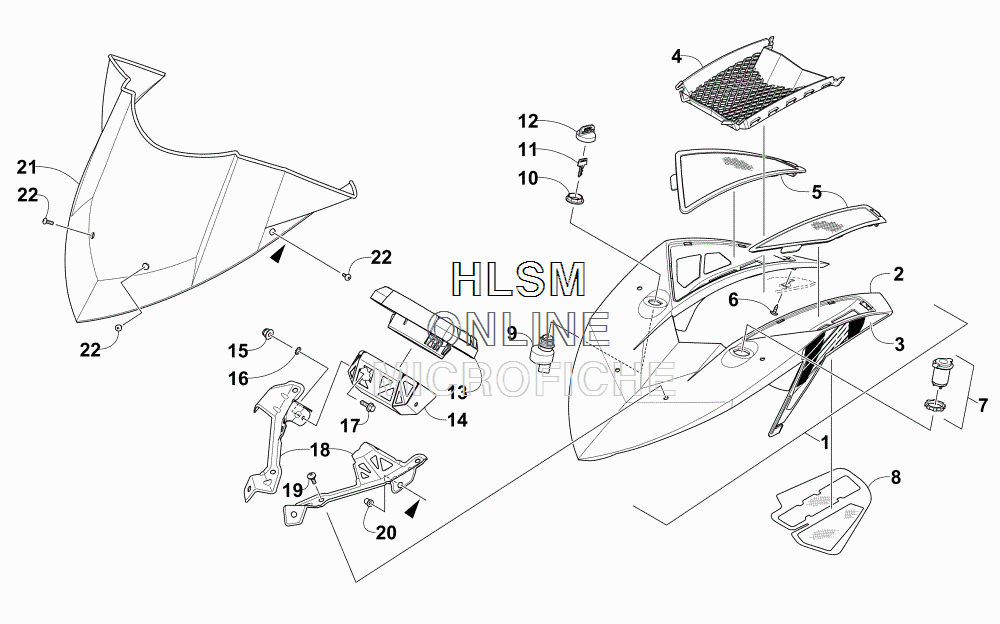

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat M 6000 SNO PRO (GREEN) [S2015M6DSPUSG] - 2015 года выпуска
-
№АртикулНазвание
-
14718-448 POD W/DECALS - GREEN (INC. 2-3)POD W/DECALS - GREEN (INC. 2-3)
-
25706-387 ...POD, INSTRUMENT - GREEN...POD, INSTRUMENT - GREEN
-
31621-418 ...DECAL, POD - RIGHT...DECAL, POD - RIGHT
-
31621-419 ...DECAL, POD - LEFT...DECAL, POD - LEFT
-
46606-576 VENT, INTAKEVENT, INTAKE
-
50608-736 SCREEN, INTAKE - INJECTION MOLD - RIGHTSCREEN, INTAKE - INJECTION MOLD - RIGHT
-
50608-737 SCREEN, INTAKE - INJECTION MOLD - LEFTSCREEN, INTAKE - INJECTION MOLD - LEFT
-
61623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
80608-688 SCREEN, AIR INTAKE - RIGHTSCREEN, AIR INTAKE - RIGHT
-
80608-689 SCREEN, AIR INTAKE - LEFTSCREEN, AIR INTAKE - LEFT
-
90609-910 SWITCH, IGNITION (INC. 10-12)SWITCH, IGNITION (INC. 10-12)
-
100430-050 ...NUT, FLANGE - IGNITION SWITCH...NUT, FLANGE - IGNITION SWITCH
-
110430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
-
110430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
-
120430-054 ...COVER, KEY...COVER, KEY
-
130720-031 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
145706-681 BRACKET, SPEEDOMETER GAUGE - CENTER - BLACKBRACKET, SPEEDOMETER GAUGE - CENTER - BLACK
-
158427-602 NUT, LOCKNUT, LOCK
-
168053-212 WASHER, LOCKWASHER, LOCK
-
178410-616 SCREW, CAPSCREW, CAP
-
185706-250 BRACKET, SPEEDOMETER GAUGE - RIGHT - BLACKBRACKET, SPEEDOMETER GAUGE - RIGHT - BLACK
-
185706-251 BRACKET, SPEEDOMETER GAUGE - LEFT - BLACKBRACKET, SPEEDOMETER GAUGE - LEFT - BLACK
-
190423-355 SCREW, SHOULDERSCREW, SHOULDER
-
201623-764 NUT, EXPANSIONNUT, EXPANSION
-
216606-647 WINDSHIELD - LOW - TEAM ARCTIC GREENWINDSHIELD - LOW - TEAM ARCTIC GREEN
-
228477-516 SCREW, MACHINESCREW, MACHINE
