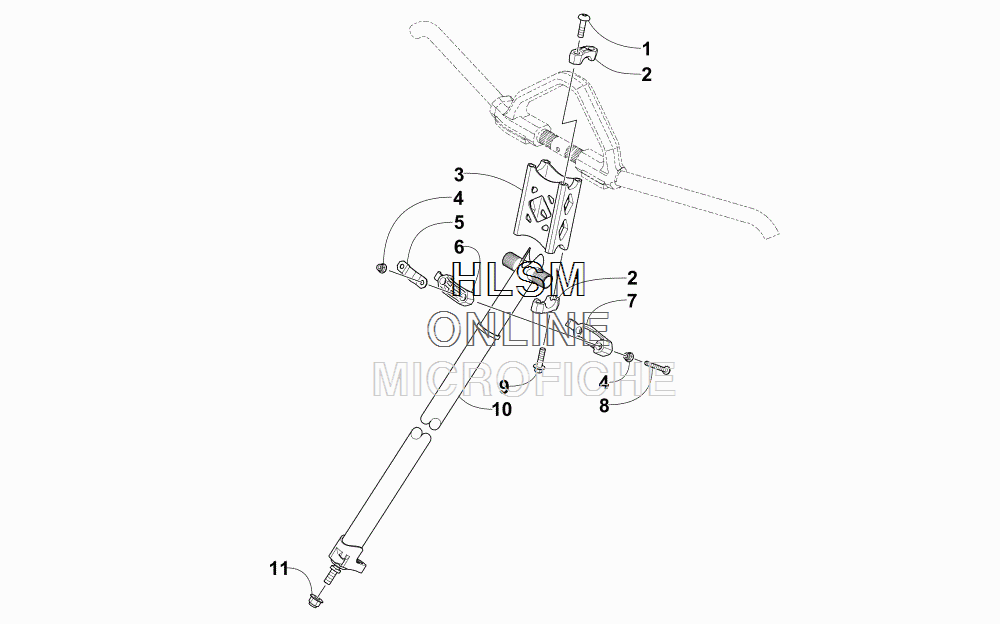

STEERING POST ASSEMBLY для Arctic Cat M 6000 ES 153 (GREEN) [S2015M6DESUSG] - 2015 года выпуска
-
№АртикулНазвание
-
18476-830 SCREW, CAPSCREW, CAP
-
21605-118 CAP, STEERINGCAP, STEERING
-
31605-034 BLOCK, RISER - 6.5 IN.BLOCK, RISER - 6.5 IN.
-
48427-602 NUT, LOCKNUT, LOCK
-
50605-998 PLATE, RETAININGPLATE, RETAINING
-
61605-127 BLOCK, MOUNTING - STEERING POST UPPERBLOCK, MOUNTING - STEERING POST UPPER
-
71605-128 BLOCK, MOUNTING - STEERING POST LOWERBLOCK, MOUNTING - STEERING POST LOWER
-
82623-079 SCREW, MACHINESCREW, MACHINE
-
98408-830 SCREW, CAPSCREW, CAP
-
101705-309 POST, STEERINGPOST, STEERING
-
112623-076 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
