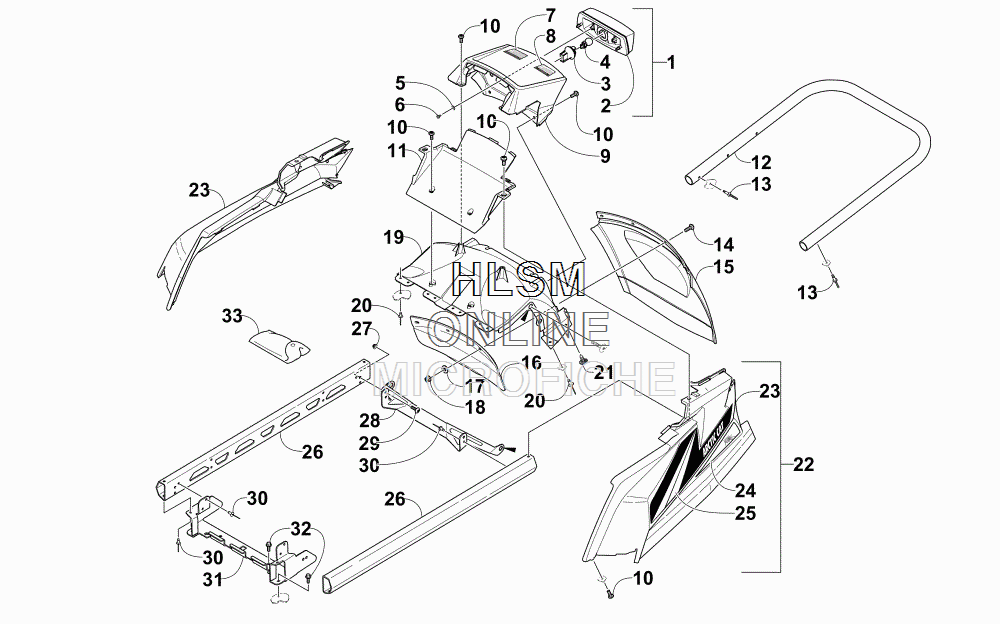

REAR BUMPER- RACK RAIL- SNOWFLAP- AND TAILLIGHT ASSEMBLY для Arctic Cat LYNX 2000 LT (BLACK) [S2015LXDLTUSB] - 2015 года выпуска`
-
№АртикулНазвание
-
10509-022 TAILLIGHT W/SOCKET - ASSEMBLY (INC. 2-4)TAILLIGHT W/SOCKET - ASSEMBLY (INC. 2-4)
-
20509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
30409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
40409-056 ...BULB,TAIL LIGHT-3157...BULB,TAIL LIGHT-3157
-
58050-127 WASHER, FLATWASHER, FLAT
-
60623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
77611-432 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
87611-433 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
95606-063 HOOD, TAILLIGHTHOOD, TAILLIGHT
-
101623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
115606-065 PANEL, ACCESS - TAILLIGHTPANEL, ACCESS - TAILLIGHT
-
121707-260 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
131623-241 RIVETRIVET
-
141623-782 SCREW, MACHINESCREW, MACHINE
-
155606-254 SNOWFLAPSNOWFLAP
-
163606-776 SUPPORT, SNOWFLAPSUPPORT, SNOWFLAP
-
170623-184 WASHER, FLATWASHER, FLAT
-
188427-602 NUT, LOCKNUT, LOCK
-
195606-056 CLOSE-OFF, TUNNELCLOSE-OFF, TUNNEL
-
208061-506 RIVET, BLIND-LF SS54 BLACKRIVET, BLIND-LF SS54 BLACK
-
210623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
224718-148 FENDER, REAR W/DECAL - RIGHT (INC. 23-25)FENDER, REAR W/DECAL - RIGHT (INC. 23-25)
-
232718-488 ...FENDER, REAR - RIGHT (INC. 24)...FENDER, REAR - RIGHT (INC. 24)
-
248611-304 ......DECAL, REFLECTOR - RIGHT - RED......DECAL, REFLECTOR - RIGHT - RED
-
251621-282 ...DECAL, REAR FENDER - RIGHT...DECAL, REAR FENDER - RIGHT
-
224718-149 FENDER, REAR W/DECAL - LEFT (INC. 23-25)FENDER, REAR W/DECAL - LEFT (INC. 23-25)
-
232718-489 ...FENDER, REAR - LEFT (INC. 24)...FENDER, REAR - LEFT (INC. 24)
-
248611-305 ......DECAL, REFLECTOR - LEFT - RED......DECAL, REFLECTOR - LEFT - RED
-
251621-283 ...DECAL, REAR FENDER - RIGHT...DECAL, REAR FENDER - RIGHT
-
264706-482 RAIL, RACKRAIL, RACK
-
278427-502 NUT, LOCKNUT, LOCK
-
283706-989 BRACKET, MOUNTING - RACK RAIL - REARBRACKET, MOUNTING - RACK RAIL - REAR
-
298470-516 SCREW, MACHINESCREW, MACHINE
-
308060-686 RIVET, BLIND-DH SS64 ZINCRIVET, BLIND-DH SS64 ZINC
-
314706-017 BRACKET, MOUNTING - RACK RAIL - FRONTBRACKET, MOUNTING - RACK RAIL - FRONT
-
328408-620 SCREW, CAPSCREW, CAP
-
334706-072 KIT, TOOLKIT, TOOL
